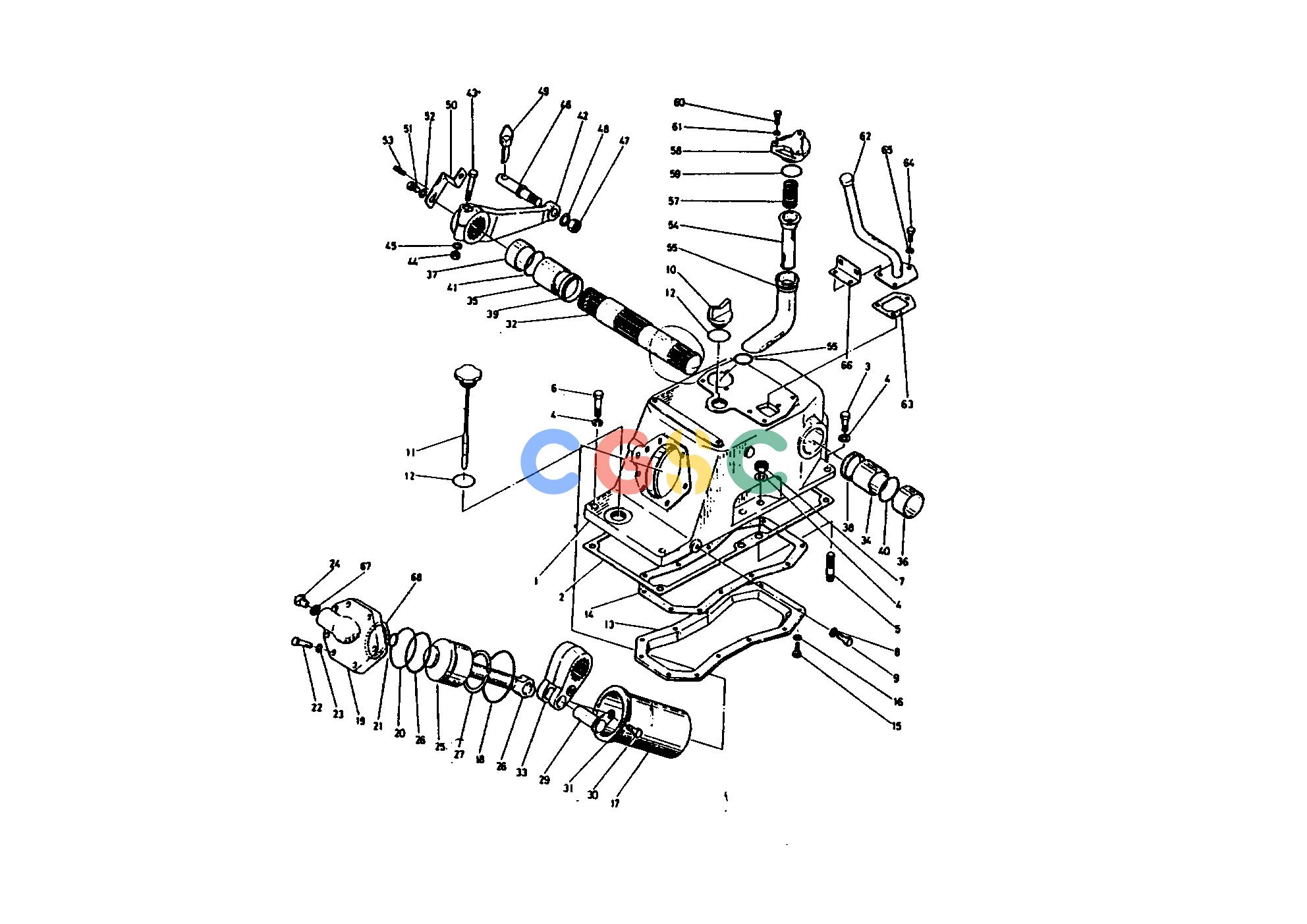

久保田零件查询250000 OIL PRESSURE CYLINDER HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
815 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3224037118
|
[1] |
BLOCK OIL PRESSURE C
|
0.0000(lbs); 0.000
|
| 002. |
3224037122
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 003. |
0117351432
|
[2] |
BOLT
|
0.1166(lbs); 0.053
|
| 004. |
0451210140
|
[10] |
WASHER LOCK
|
0.0000(lbs); 0.000
|
| 005. |
0151751430
|
[4] |
STUD
|
0.1144(lbs); 0.052
|
| 006. |
0117351440
|
[2] |
BOLT
|
0.1364(lbs); 0.062
|
| 007. |
0217350140
|
[4] |
NUT
|
0.0000(lbs); 0.000
|
| 008. |
0471400200
|
[1] |
GASKET
|
0.0022(lbs); 0.001
|
| 009. |
0631121020
|
[1] |
PLUG
|
0.0000(lbs); 0.000
|
| 010. |
3224021410
|
[1] |
PLUG OIL FILTER
|
0.0110(lbs); 0.005
|
| 011. |
3229021420
|
[1] |
GAUGE OIL
|
0.0000(lbs); 0.000
|
| 012. |
0481150300
|
[2] |
O RING
|
0.0022(lbs); 0.001
|
| 013. |
3224037142
|
[1] |
COVER CYL BLOCK UNDE
|
0.0000(lbs); 0.000
|
| 014. |
3224037150
|
[1] |
GASKET
|
0.0572(lbs); 0.026
|
| 015. |
0115050812
|
[12] |
BOLT
|
0.0198(lbs); 0.009
|
| 016. |
0451210080
|
[12] |
WASHER LOCK
|
0.0000(lbs); 0.000
|
| 017. |
3224037132
|
[1] |
LEVER CYLINDER
|
0.0000(lbs); 0.000
|
| 018. |
0481150950
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
| 019. |
3224037233
|
[1] |
COVER CYLINDER FRONT
|
0.0000(lbs); 0.000
|
| 020. |
0481150750
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 021. |
0481100210
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 022. |
0117351240
|
[7] |
BOLT
|
0.0990(lbs); 0.045
|
| 023. |
0451210120
|
[7] |
WASHER LOCK
|
0.0000(lbs); 0.000
|
| 024. |
0631125030
|
[1] |
PLUG
|
0.1122(lbs); 0.051
|
| 025. |
3224037312
|
[1] |
PISTON OIL PRESSURE
|
0.0000(lbs); 0.000
|
| 026. |
0481100700
|
[1] |
O RING
|
0.0176(lbs); 0.008
|
| 027. |
3224037330
|
[1] |
RING BACK UP
|
0.0110(lbs); 0.005
|
| 028. |
3224037323
|
[1] |
ROD OIL PRESSURE
|
0.0000(lbs); 0.000
|
| 029. |
3224037340
|
[1] |
PIN OIL PRESSURE CYL
|
0.4400(lbs); 0.200
|
| 030. |
0117051018
|
[1] |
BOLT
|
0.0374(lbs); 0.017
|
| 031. |
0451210100
|
[1] |
WASHER LOCK
|
0.0000(lbs); 0.000
|
| 032. |
3224037435
|
[1] |
SHAFT OIL PRESSURE A
|
0.0000(lbs); 0.000
|
| 033. |
3224037443
|
[1] |
ARM OIL PRESSURE ARM
|
0.0000(lbs); 0.000
|
| 034. |
3224037452
|
[1] |
BUSHING
|
0.0000(lbs); 0.000
|
| 035. |
3224037460
|
[1] |
BUSHING
|
0.0000(lbs); 0.000
|
| 036. |
3224037480
|
[1] |
COLLAR
|
0.0946(lbs); 0.043
|
| 037. |
3224037490
|
[1] |
COLLAR
|
0.1408(lbs); 0.064
|
| 038. |
3224037512
|
[1] |
COLLAR
|
0.0000(lbs); 0.000
|
| 039. |
3224037523
|
[1] |
COLLAR
|
0.0000(lbs); 0.000
|
| 040. |
0481150450
|
[1] |
O RING
|
0.0066(lbs); 0.003
|
| 041. |
0481150500
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 042. |
3224037612
|
[2] |
ARM LIFT
|
0.0000(lbs); 0.000
|
| 043. |
0117351275
|
[2] |
BOLT
|
0.1562(lbs); 0.071
|
| 044. |
0217650120
|
[2] |
NUT
|
0.0220(lbs); 0.010
|
| 045. |
0451210120
|
[2] |
WASHER LOCK
|
0.0000(lbs); 0.000
|
| 046. |
3224037692
|
[2] |
PIN LIFT ROD
|
0.0000(lbs); 0.000
|
| 047. |
0217350160
|
[2] |
NUT
|
0.0000(lbs); 0.000
|
| 048. |
0451210160
|
[2] |
WASHER LOCK
|
0.0000(lbs); 0.000
|
| 049. |
3415037642
|
[2] |
PIN SET
|
0.0000(lbs); 0.000
|
| 050. |
3224037652
|
[1] |
LEVER CONTROL
|
0.0000(lbs); 0.000
|
| 051. |
0117051220
|
[1] |
BOLT
|
0.0660(lbs); 0.030
|
| 052. |
0451210120
|
[1] |
WASHER LOCK
|
0.0000(lbs); 0.000
|
| 053. |
0541110412
|
[1] |
PIN SPRING
|
0.0000(lbs); 0.000
|
| 054. |
3224037713
|
[1] |
FILTER OIL
|
0.0000(lbs); 0.000
|
| 055. |
3224037720
|
[1] |
SLEEVE OIL FILTER
|
0.4752(lbs); 0.216
|
| 056. |
0481150350
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 057. |
3224037740
|
[1] |
SPRING
|
0.0572(lbs); 0.026
|
| 058. |
3224037750
|
[1] |
PLUG
|
0.4070(lbs); 0.185
|
| 059. |
0481150400
|
[1] |
O RING
|
0.0044(lbs); 0.002
|
| 060. |
0115050820
|
[3] |
BOLT
|
0.0242(lbs); 0.011
|
| 061. |
0451210080
|
[3] |
WASHER LOCK
|
0.0000(lbs); 0.000
|
| 062. |
3229037783
|
[1] |
BREATHER
|
0.0000(lbs); 0.000
|
| 063. |
3224037792
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 064. |
0115050820
|
[3] |
BOLT
|
0.0242(lbs); 0.011
|
| 065. |
0451210080
|
[3] |
WASHER LOCK
|
0.0000(lbs); 0.000
|
| 066. |
3224029373
|
[1] |
CLAMP CABLE
|
0.0000(lbs); 0.000
|
| 067. |
0471400300
|
[1] |
GASKET
|
0.0044(lbs); 0.002
|
| 068. |
3224037260
|
[1] |
RING
|
0.0044(lbs); 0.002
|
