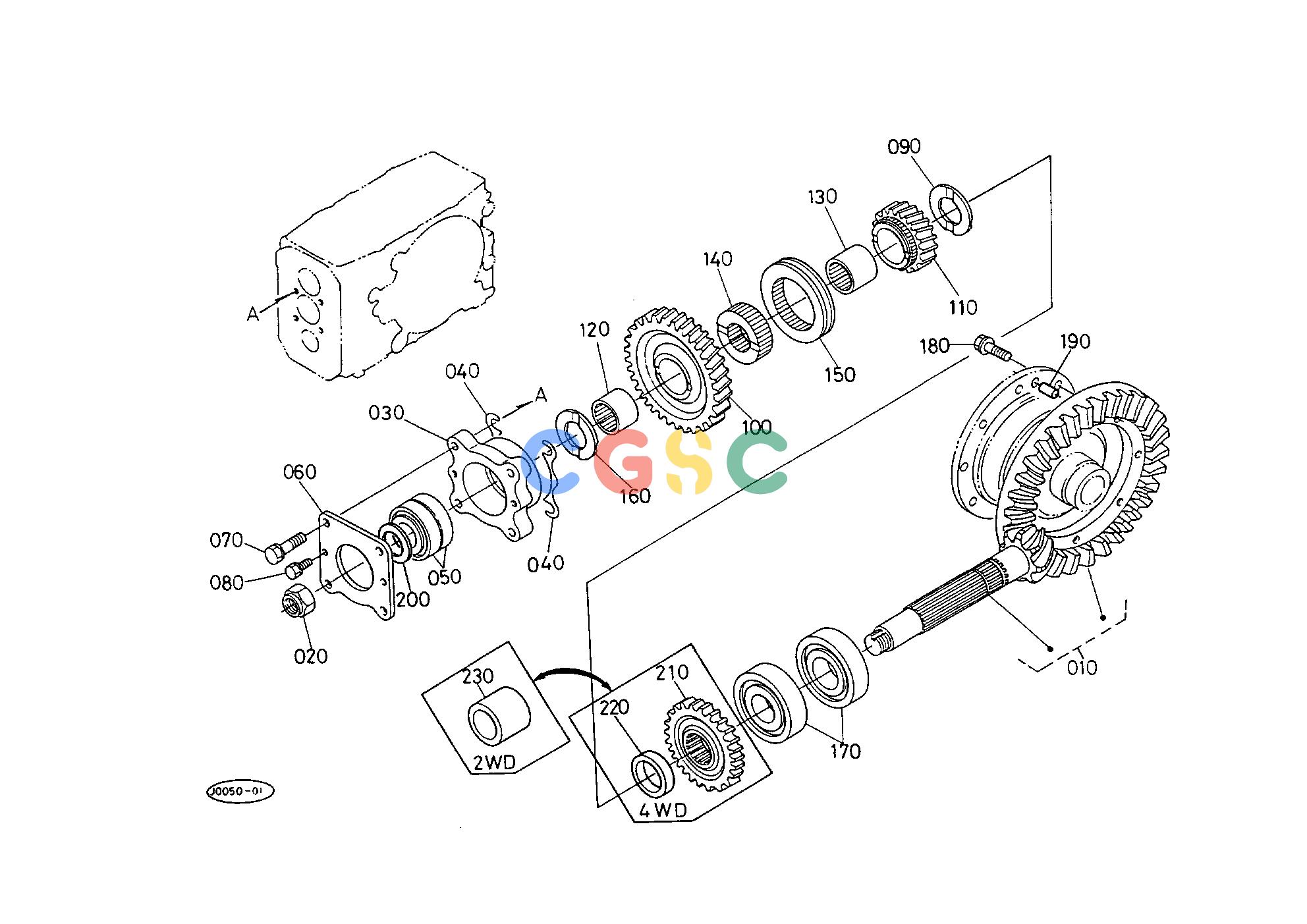

久保田零件查询T06801 SPIRAL BEVEL PINION [A] REAR AXLE AND REAR WHEELEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
576 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3526022100
|
[1] |
ASSY GEAR BEVEL
|
11.0000(lbs); 5.000
|
| 020. |
3526023252
|
[1] |
NUT
|
0.0880(lbs); 0.040
|
| 030. |
3715022150
|
[1] |
CASE BEARING
|
1.2100(lbs); 0.550
|
| 040. |
3415022610
|
[2] |
SHIM
|
0.0220(lbs); 0.010
|
| 040. |
3415022620
|
[4] |
SHIM
|
0.0110(lbs); 0.005
|
| 040. |
3415022630
|
[2] |
SHIM
|
0.0110(lbs); 0.005
|
| 050. |
0810106305
|
[2] |
BEARING BALL
|
0.5060(lbs); 0.230
|
| 060. |
3415022170
|
[1] |
COVER BEARING
|
0.3520(lbs); 0.160
|
| 070. |
0113351035
|
[4] |
BOLT
|
0.0660(lbs); 0.030
|
| 080. |
0112350816
|
[2] |
BOLT
|
0.0242(lbs); 0.011
|
| 090. |
3845025230
|
[1] |
COLLAR THRUST
|
0.0550(lbs); 0.025
|
| 100. |
3243022410
|
[1] |
GEAR
|
2.2440(lbs); 1.020
|
| 110. |
3243022422
|
[1] |
GEAR
|
0.8800(lbs); 0.400
|
| 120. |
3243022430
|
[1] |
RING INNER
|
0.1540(lbs); 0.070
|
| 130. |
3243022442
|
[1] |
RING INNER
|
0.1760(lbs); 0.080
|
| 140. |
3243022450
|
[1] |
BOSS SPLINE
|
0.4620(lbs); 0.210
|
| 150. |
3843021750
|
[1] |
SHIFTER
|
0.3630(lbs); 0.165
|
| 160. |
3845025230
|
[1] |
COLLAR THRUST
|
0.0550(lbs); 0.025
|
| 170. |
3243025000
|
[2] |
BEARING BALL
|
0.7700(lbs); 0.350
|
| 180. |
3780043870
|
[8] |
BOLT
|
0.0572(lbs); 0.026
|
| 190. |
3730028170
|
[2] |
PIN STRAIGHT
|
0.0550(lbs); 0.025
|
| 200. |
3715021770
|
[1] |
COLLAR
|
0.2640(lbs); 0.120
|
| 210. |
3136344170
|
[1] |
GEAR
|
0.7920(lbs); 0.360
|
| 220. |
3243022460
|
[1] |
COLLAR
|
0.1100(lbs); 0.050
|
