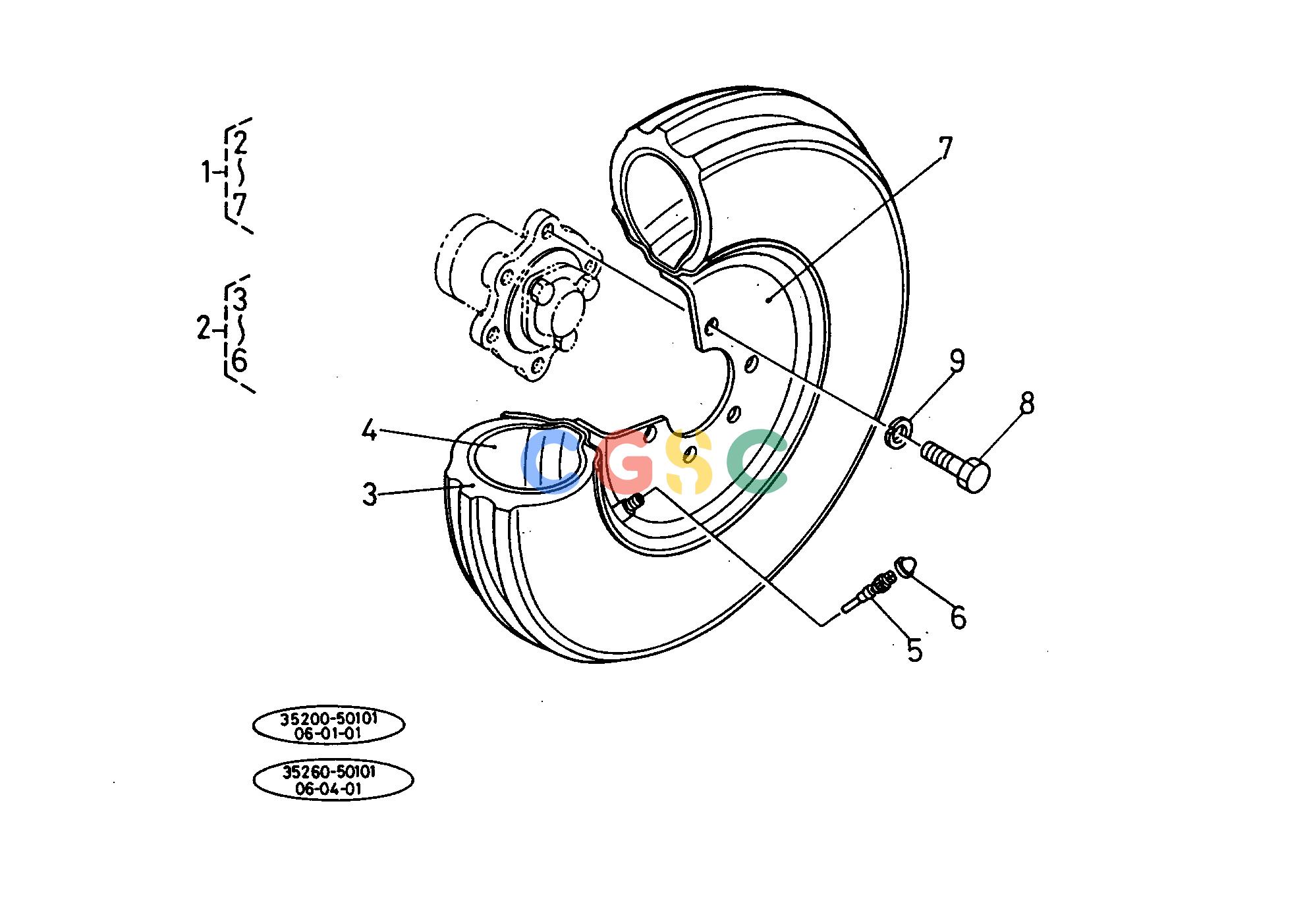

久保田零件查询072000 FRONT WHEEL (5.00-15) [2WD] FRONT AXLE AND WHEELEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
207 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3526011600
|
[2] |
ASSY FRONT WHEEL
|
33.0000(lbs); 15.000
|
| 002. |
3227011610
|
[2] |
ASSY TIRE
|
16.5000(lbs); 7.500
|
| 003. |
3227011620
|
[2] |
TIRE
|
13.8600(lbs); 6.300
|
| 004. |
3227011630
|
[2] |
TUBE
|
2.0900(lbs); 0.950
|
| 005. |
3227011680
|
[2] |
CORE VALVE
|
0.0440(lbs); 0.020
|
| 006. |
3824011690
|
[2] |
CAP VALVE
|
0.0044(lbs); 0.002
|
| 007. |
3526011640
|
[2] |
ASSY WHEEL
|
15.8400(lbs); 7.200
|
| 008. |
0117351425
|
[12] |
BOLT
|
0.1166(lbs); 0.053
|
| 009. |
0451250140
|
[12] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
