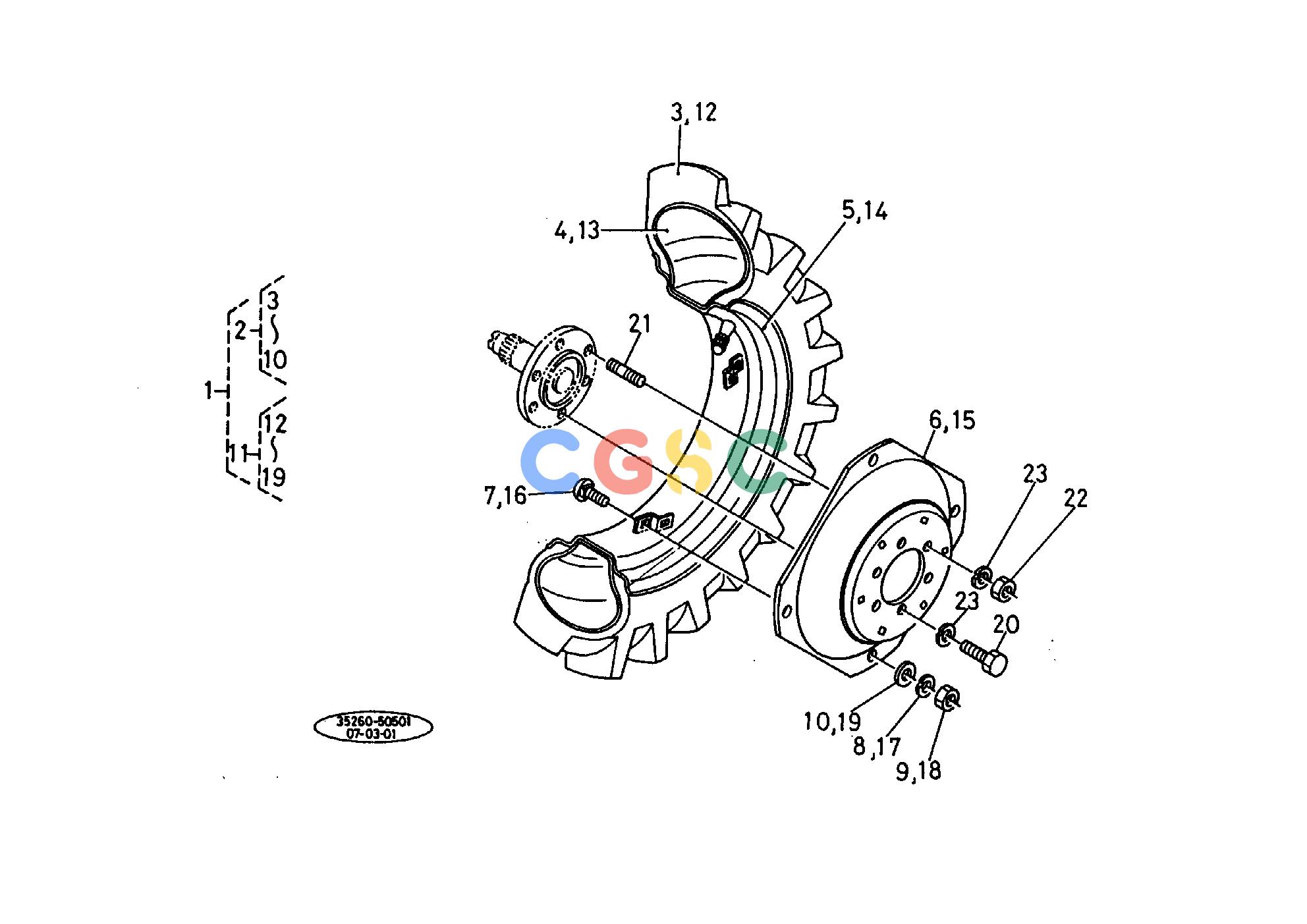

久保田零件查询078000 REAR WHEEL (11.2-24) REAR WHEELEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
674 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3526027900
|
[1] |
ASSY REAR WHEEL
|
165.0000(lbs); 75.00
|
| 002. |
3526027610
|
[1] |
ASSY REAR WHEEL LH
|
131.3400(lbs); 59.70
|
| 003. |
3526027620
|
[1] |
TIRE
|
63.9100(lbs); 29.050
|
| 004. |
3224027630
|
[1] |
TUBE
|
8.1400(lbs); 3.700
|
| 005. |
3224027650
|
[1] |
RIM
|
0.0000(lbs); 0.000
|
| 006. |
3422027660
|
[1] |
DISK
|
0.0000(lbs); 0.000
|
| 007. |
3122027680
|
[4] |
BOLT
|
0.1980(lbs); 0.090
|
| 008. |
0451250160
|
[4] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
| 009. |
0217450160
|
[4] |
NUT
|
0.0484(lbs); 0.022
|
| 010. |
0401150160
|
[4] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 011. |
3526027690
|
[1] |
ASSY REAR WHEEL RH
|
0.0000(lbs); 0.000
|
| 012. |
3526027620
|
[1] |
TIRE
|
63.9100(lbs); 29.050
|
| 013. |
3224027630
|
[1] |
TUBE
|
8.1400(lbs); 3.700
|
| 014. |
3224027650
|
[1] |
RIM
|
0.0000(lbs); 0.000
|
| 015. |
3422027660
|
[1] |
DISK
|
0.0000(lbs); 0.000
|
| 016. |
3122027680
|
[4] |
BOLT
|
0.1980(lbs); 0.090
|
| 017. |
0451250500
|
[4] |
WASHER SPRING
|
0.0000(lbs); 0.000
|
| 018. |
0217450160
|
[4] |
NUT
|
0.0484(lbs); 0.022
|
| 019. |
0401150160
|
[4] |
WASHER PLAIN
|
0.0220(lbs); 0.010
|
| 020. |
0107351630
|
[12] |
BOLT
|
0.1738(lbs); 0.079
|
| 021. |
3415027710
|
[4] |
STUD
|
0.1364(lbs); 0.062
|
| 022. |
0207450160
|
[4] |
NUT
|
0.0638(lbs); 0.029
|
| 023. |
0451250160
|
[16] |
WASHER SPRING
|
0.0220(lbs); 0.010
|
