久保田零件查询L13001 SHUTTER PLATE [EXCEPT HST TYPE] HOOD/BONNETEPC Kubota online

广数供应链运营团队, 16 02月, 2025，浏览： 981 次

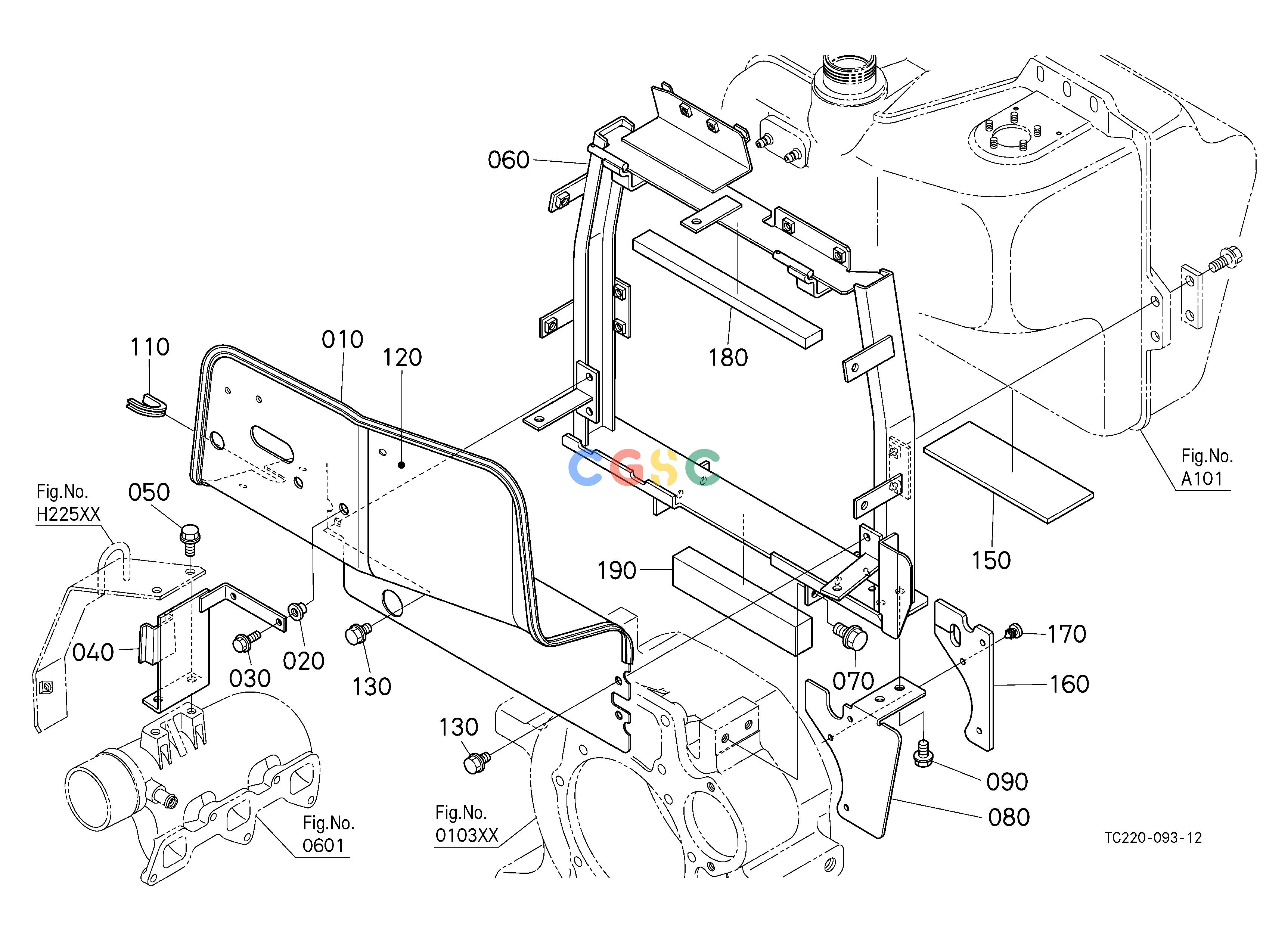

Pos.	Part No	Qty	Parts name	Comments
010.	T103042222	[1]	SHIELD	0.4070(lbs); 0.185
020.	3407071390	[2]	NUT,CUSHION	0.0110(lbs); 0.005
030.	0175450620	[2]	BOLT,FLANGE	0.0154(lbs); 0.007
040.	TC22041242	[1]	SUPPORT,SHUTTER	0.7920(lbs); 0.360
050.	0175450820	[2]	BOLT,FLANGE	0.0330(lbs); 0.015
060.	TC22042133	[1]	SUPPORT,BONNET REAR	; <=61702 12.1000(lbs); 5.500
060.	TC22042135	[1]	SUPPORT,BONNET REAR	; >=61703 12.1000(lbs); 5.500
070.	T115045610	[4]	BOLT	0.0440(lbs); 0.020
080.	TC22042152	[1]	PLATE	; <=52580 2.4200(lbs); 1.100
080.	TC22042153	[1]	PLATE	; >=52581 2.4200(lbs); 1.100
090.	0112350816	[2]	BOLT,SEMS	; <=51027 0.0242(lbs); 0.011
090.	0175450816	[2]	BOLT,FLANGE	; >=51028 0.0242(lbs); 0.011
110.	3043082770	[1]	CUSHION	0.0110(lbs); 0.005
120.	TC22042113	[1]	PLATE,SHUTTER	5.0600(lbs); 2.300
130.	0175450816	[3]	BOLT,FLANGE	0.0242(lbs); 0.011
150.	3135135183	[1]	CUSHION,TANK	0.0880(lbs); 0.040
160.	TC22042230	[1]	SHIELD,SHUTTER LH	; >=52581 0.1100(lbs); 0.050
170.	T205041490	[3]	STOPPER	; >=52581 0.0022(lbs); 0.001
180.	TC22042200	[1]	SPONGE,UPPER	; >=52581 0.0330(lbs); 0.015
190.	TC22042210	[1]	SPONGE,LOWER	; >=52581 0.0594(lbs); 0.027
