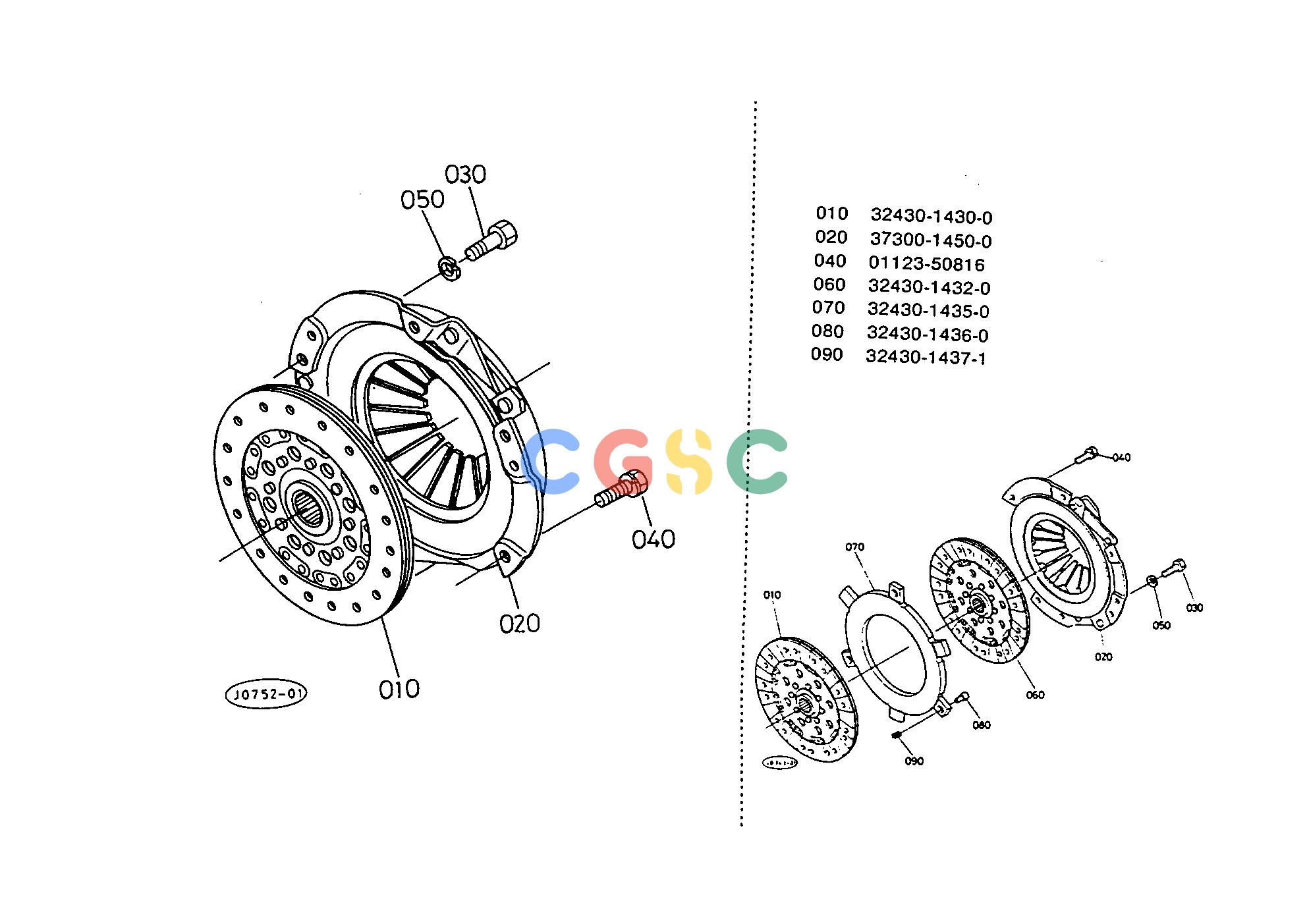

久保田零件查询T04602 CLUTCH (SC) CLUTCHEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
250 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3243014300
|
[1] |
COMP DISK CLUTCH
|
0.0000(lbs); 0.000
|
| 010. |
3243014302
|
[1] |
COMP.DISK CLUTCH
|
0.0000(lbs); 0.000
|
| 020. |
3730014500
|
[1] |
ASSY PLATE PRESSURE
|
9.9000(lbs); 4.500
|
| 020. |
3243014500
|
[1] |
ASSY PLATE PRESSURE
|
11.6600(lbs); 5.300
|
| 030. |
3422014510
|
[2] |
BOLT REAMER
|
0.0286(lbs); 0.013
|
| 040. |
0112350816
|
[7] |
BOLT
|
0.0242(lbs); 0.011
|
| 050. |
0451250080
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 060. |
3243014320
|
[1] |
COMP DISK CLUTCH
|
0.0000(lbs); 0.000
|
| 070. |
3243014350
|
[1] |
PLATE CENTER(SC)
|
4.4000(lbs); 2.000
|
| 080. |
3243014360
|
[3] |
PIN STRAIGHT
|
0.0330(lbs); 0.015
|
| 090. |
3243014371
|
[3] |
SPRING
|
0.0000(lbs); 0.000
|
