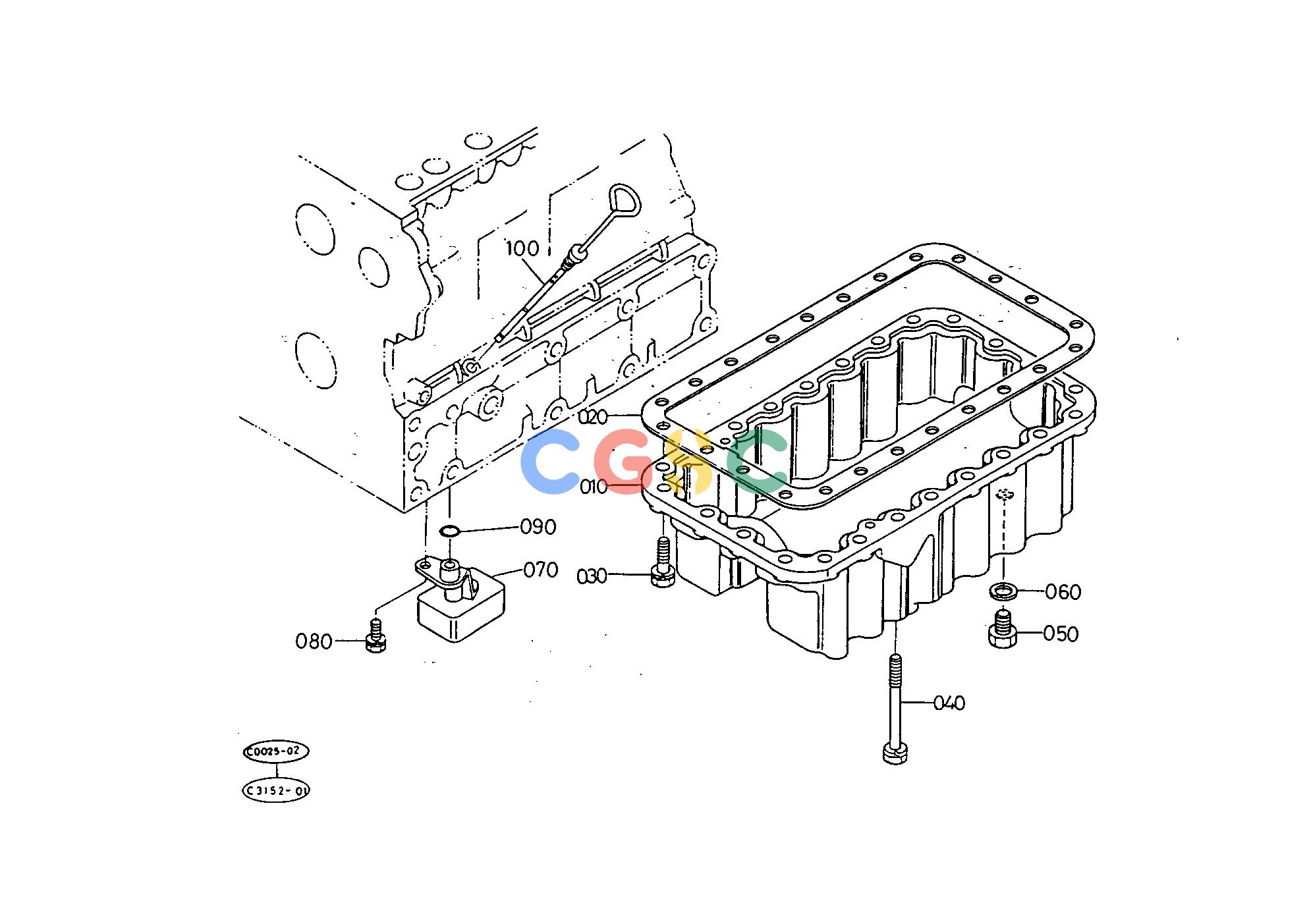

久保田零件查询T02500 OIL PAN ENGINEEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
879 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1546101610
|
[1] |
OIL PAN
|
28.1600(lbs); 12.800
|
| 010. |
1734101610
|
[1] |
OIL PAN
|
9.0200(lbs); 4.100
|
| 020. |
1540101620
|
[1] |
GASKET OIL PAN
|
0.0000(lbs); 0.000
|
| 030. |
0113351028
|
[22] |
BOLT
|
0.0594(lbs); 0.027
|
| 040. |
1737791010
|
[2] |
BOLT
|
0.1760(lbs); 0.080
|
| 050. |
1522133750
|
[2] |
PLUG
|
0.0704(lbs); 0.032
|
| 050. |
1526133750
|
[2] |
PLUG
|
0.0748(lbs); 0.034
|
| 060. |
1510933660
|
[2] |
GASKET
|
0.0022(lbs); 0.001
|
| 070. |
1541132110
|
[1] |
FILTER OIL
|
0.5280(lbs); 0.240
|
| 080. |
0112350814
|
[1] |
BOLT
|
0.0220(lbs); 0.010
|
| 090. |
0481100160
|
[1] |
RING
|
0.0022(lbs); 0.001
|
| 100. |
1732536410
|
[1] |
GAUGE OIL
|
0.0660(lbs); 0.030
|
| 100. |
1733136410
|
[1] |
GAUGE OIL
|
0.1100(lbs); 0.050
|
