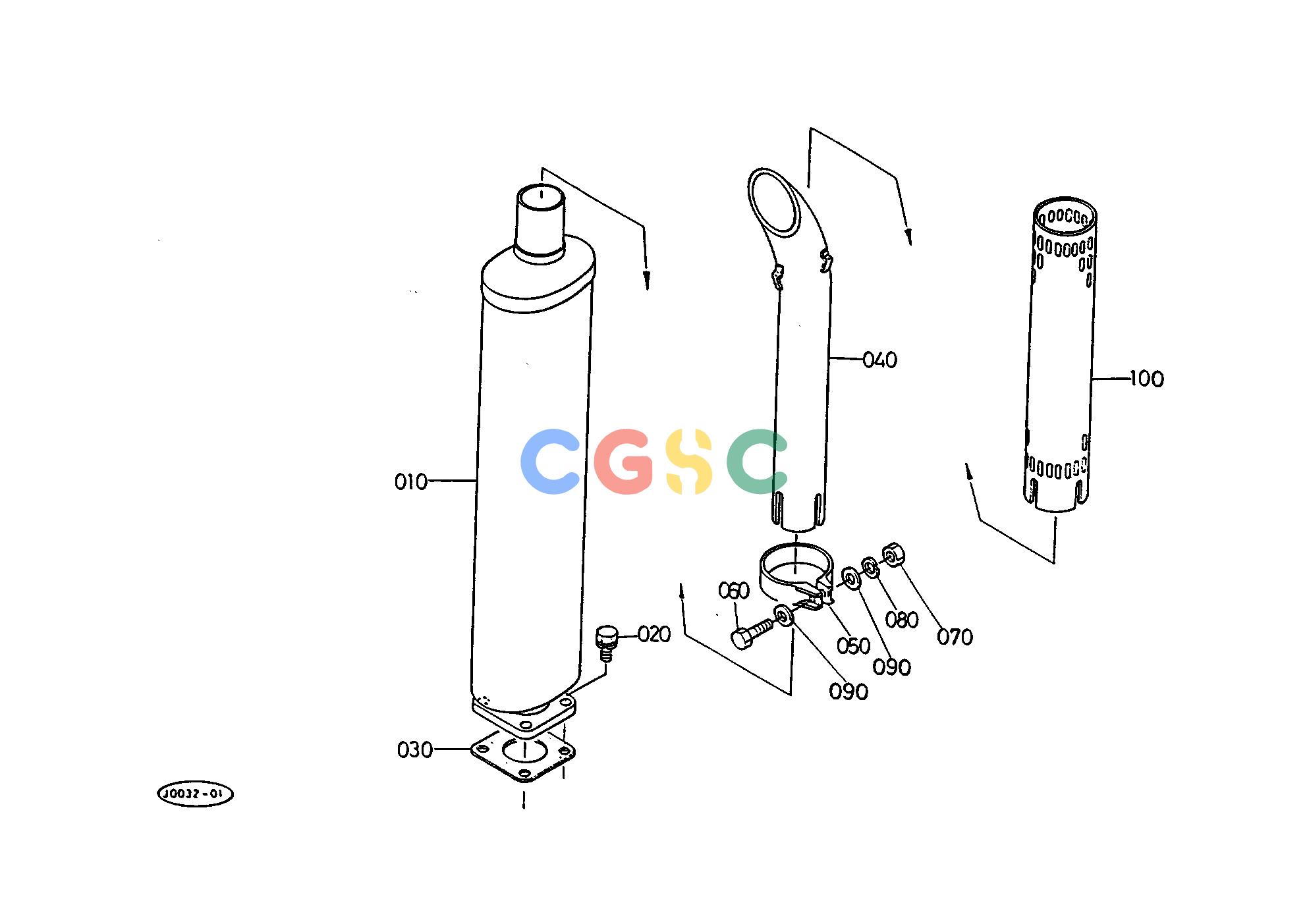

久保田零件查询T03600 MUFFLER ENGINEEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
608 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1735612110
|
[1] |
MUFFLER
|
14.3000(lbs); 6.500
|
| 020. |
0112350825
|
[4] |
BOLT
|
0.0286(lbs); 0.013
|
| 030. |
1547112230
|
[1] |
GASKET MUFFLER
|
0.0000(lbs); 0.000
|
| 040. |
1732112410
|
[1] |
PIPE MUFFLER
|
2.1010(lbs); 0.955
|
| 050. |
1733112140
|
[1] |
BAND MUFFLER
|
0.0000(lbs); 0.000
|
| 060. |
1552191040
|
[1] |
BOLT
|
0.0330(lbs); 0.015
|
| 070. |
1552192010
|
[1] |
NUT
|
0.0088(lbs); 0.004
|
| 080. |
1552194070
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 090. |
1552194040
|
[2] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 100. |
1732112660
|
[1] |
COVER MUFFLER PIPE
|
0.9680(lbs); 0.440
|
