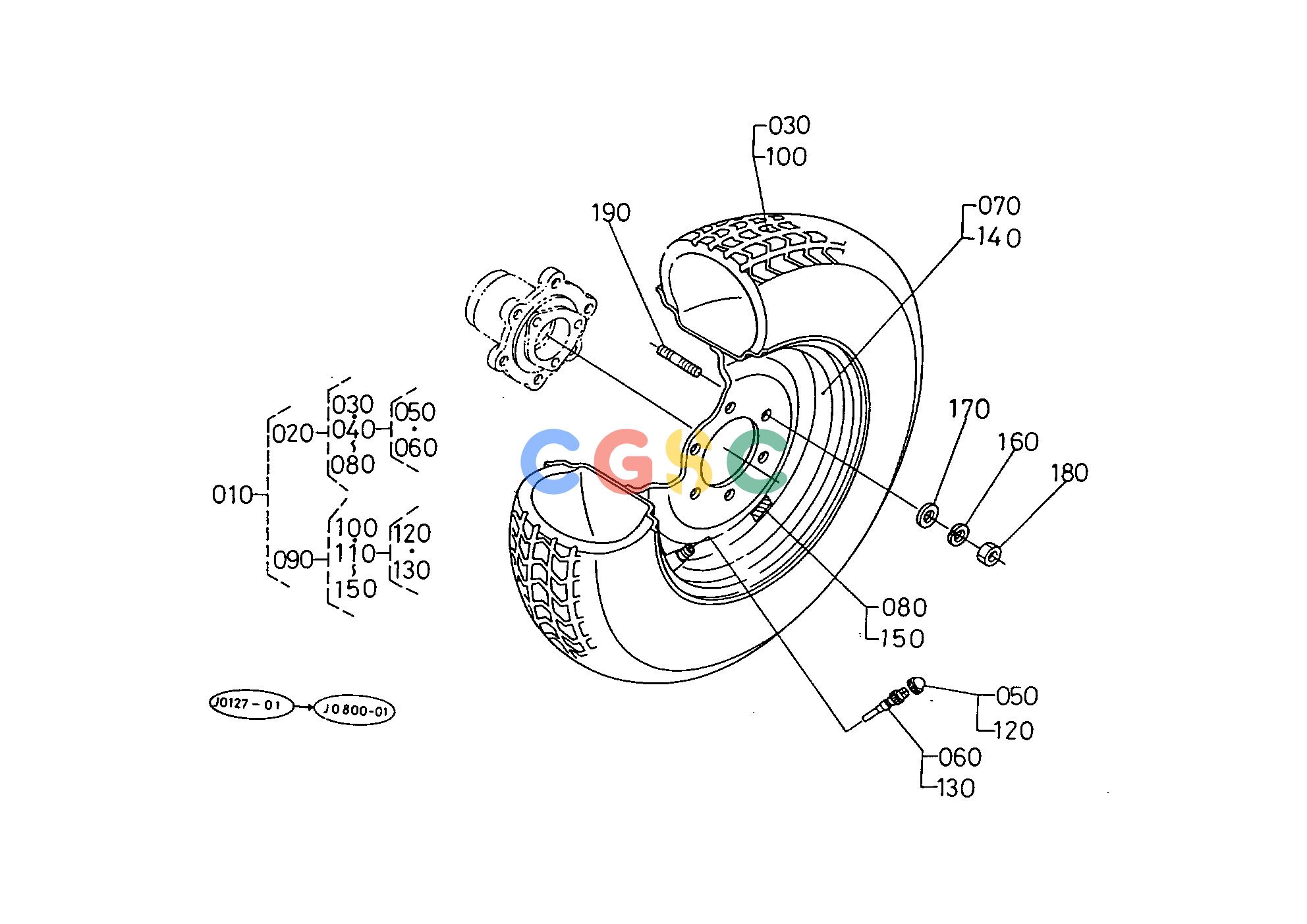

久保田零件查询T07903 FRONT WHEEL (25X8.50-14) FRONT AXLE AND FRONT WHEELEPC Kubota online_久保田Kubota_工程机械

久保田零件查询T07903 FRONT WHEEL (25X8.50-14) FRONT AXLE AND FRONT WHEELEPC Kubota online

广数供应链运营团队, 16 02月, 2025，浏览： 509 次

Pos.	Part No	Qty	Parts name	Comments
010.	3243011600	[1]	ASSY FRONT WHEEL	[FR]; <=10989 40.6120(lbs); 18.460
010.	3243411600	[1]	ASSY FRONT WHEEL	[FR]; =>10990 0.0000(lbs); 0.000
020.	3243011610	[1]	ASSY FRONT WHEEL RH	[FR]; <=10989 41.8000(lbs); 19.000
020.	3243411610	[1]	ASSY FRONT WHEEL RH	[FR]; =>10990 0.0000(lbs); 0.000
030.	3523011810	[1]	TIRE	[FR]; <=10989 17.6000(lbs); 8.000
030.	3243411810	[1]	TIRE	[FR]; =>10990 0.0000(lbs); 0.000
040.	3415911850	[1]	VALVE TIRE	0.0286(lbs); 0.013
050.	3824011690	[1]	CAP VALVE	0.0044(lbs); 0.002
060.	3215027740	[1]	CORE VALVE	0.0066(lbs); 0.003
070.	3243011650	[1]	ASSY WHEEL	0.0000(lbs); 0.000
080.	3243011720	[1]	LABEL TIRE RH	[FR]; <=10989 0.0000(lbs); 0.000
080.	3243411720	[1]	LABEL TIRE RH	[FR]; =>10990 0.0022(lbs); 0.001
090.	3243011620	[1]	ASSY FRONT WHEEL LH	[FR]; <=10989 41.8000(lbs); 19.000
090.	3243411620	[1]	ASSY FRONT WHEEL LH	[FR]; =>10990 0.0000(lbs); 0.000
100.	3523011810	[1]	TIRE	[FR]; <=10989 17.6000(lbs); 8.000
100.	3243411810	[1]	TIRE	[FR]; =>10990 0.0000(lbs); 0.000
110.	3415911850	[1]	VALVE TIRE	0.0286(lbs); 0.013
120.	3824011690	[1]	CAP VALVE	0.0044(lbs); 0.002
130.	3215027740	[1]	CORE VALVE	0.0066(lbs); 0.003
140.	3243011650	[1]	ASSY WHEEL	0.0000(lbs); 0.000
150.	3243011710	[1]	LABEL TIRE LH	[FR]; <=10989 0.0000(lbs); 0.000
150.	3243411710	[1]	LABEL TIRE LH	[FR]; =>10990 0.0022(lbs); 0.001
160.	0451250140	[12]	WASHER SPRING	0.0220(lbs); 0.010
170.	0401350140	[12]	WASHER PLAIN	0.0220(lbs); 0.010
180.	0217650140	[12]	NUT	0.0308(lbs); 0.014
190.	3545049160	[12]	STUD	0.1100(lbs); 0.050
