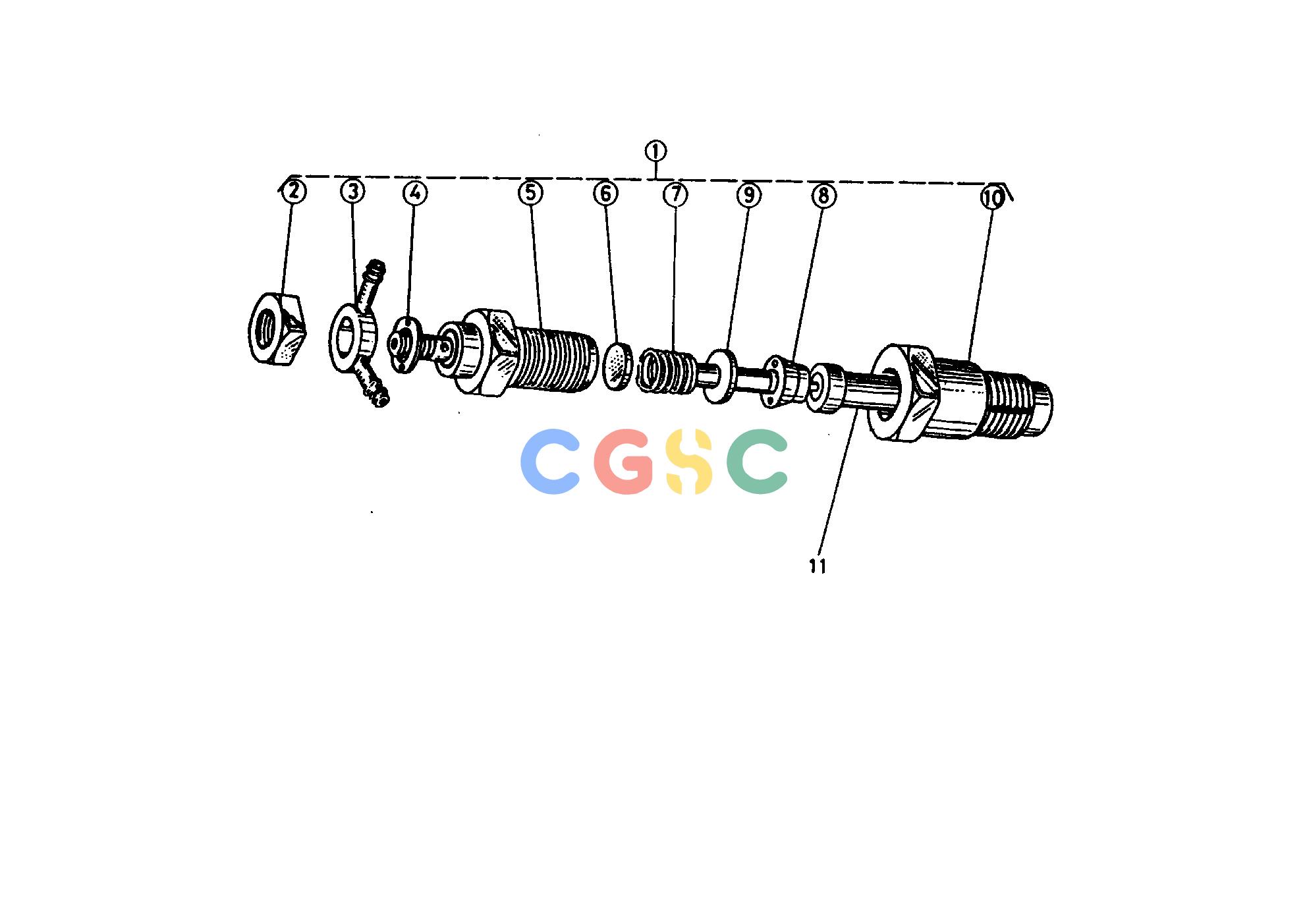

久保田零件查询062000 NOZZLE HOLDER 2 [SECTION PARTS] ENGINEEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
685 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 002. |
1522192020
|
[4] |
NUT
|
0.0242(lbs); 0.011
|
| 003. |
1522195690
|
[4] |
JOINT EYE
|
0.0484(lbs); 0.022
|
| 004. |
1522194020
|
[4] |
WASHER PLAIN
|
0.0044(lbs); 0.002
|
| 006. |
1522153230
|
[4] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 007. |
1522153170
|
[4] |
SPRING NOZZLE
|
0.0220(lbs); 0.010
|
| 008. |
1522153350
|
[4] |
PIECE DISTANCE
|
0.0352(lbs); 0.016
|
| 009. |
1522153160
|
[4] |
ROD PUSH
|
0.0066(lbs); 0.003
|
| 010. |
1522153280
|
[4] |
NUT NOZZLE
|
0.1496(lbs); 0.068
|
| 011. |
1502153610
|
[4] |
PIECE NOZZLE
|
0.0000(lbs); 0.000
|
