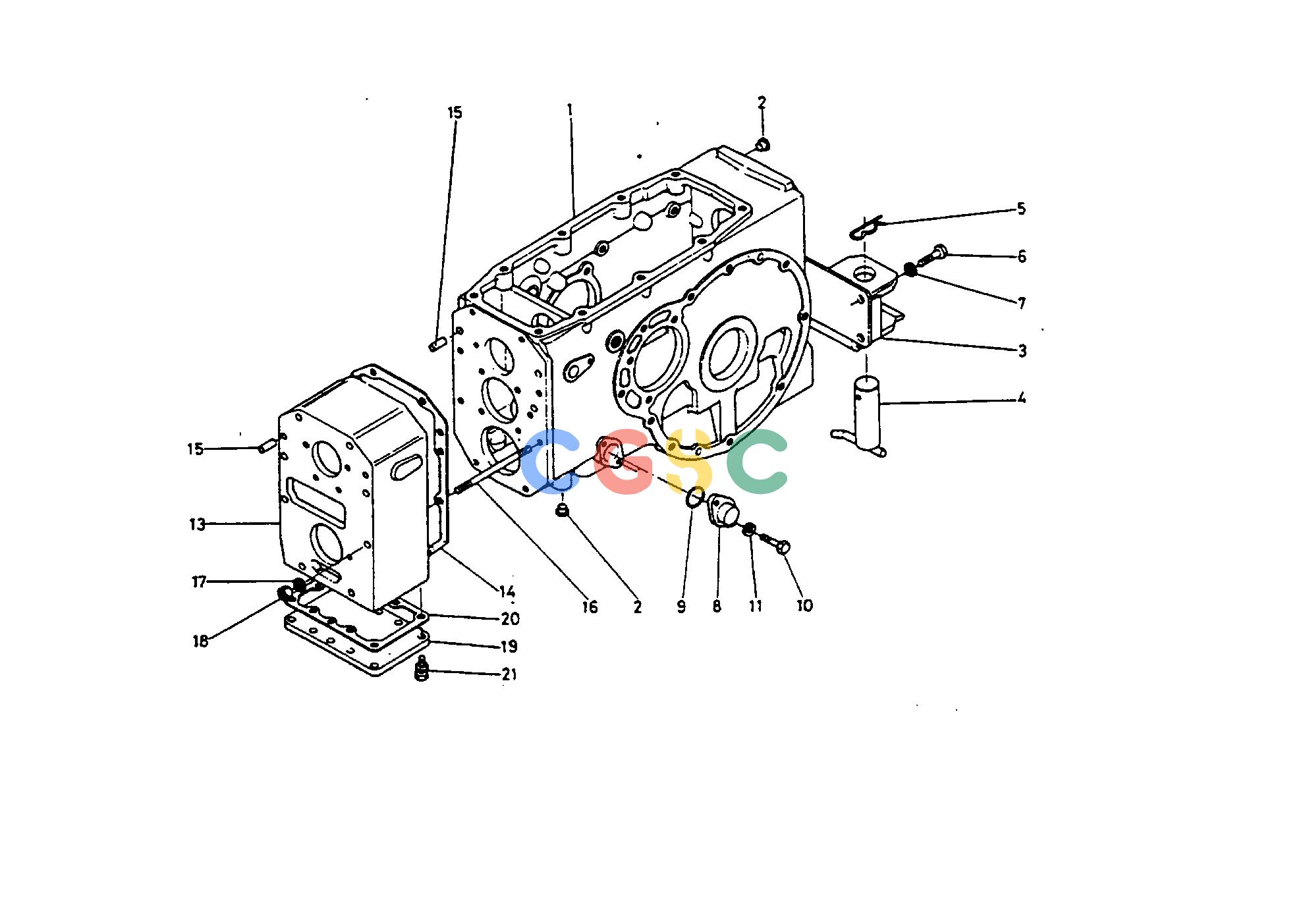

久保田零件查询033000 TRANSMISSION TRANSMISSIONEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
379 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 001. |
3422021116
|
[1] |
CASE TRANSMISSION
|
0.0000(lbs); 0.000
|
| 002. |
3221027580
|
[10] |
PLUG
|
0.0022(lbs); 0.001
|
| 003. |
3426029712
|
[1] |
HITCH
|
0.0000(lbs); 0.000
|
| 004. |
3426029720
|
[1] |
PIN HITCH
|
0.8800(lbs); 0.400
|
| 005. |
3325189312
|
[1] |
PIN SET
|
0.0000(lbs); 0.000
|
| 006. |
0117351228
|
[4] |
BOLT
|
0.0792(lbs); 0.036
|
| 007. |
0451250120
|
[4] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 008. |
3415037722
|
[1] |
RETAINER
|
0.0000(lbs); 0.000
|
| 009. |
0481110320
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 010. |
0122250816
|
[2] |
BOLT
|
0.0220(lbs); 0.010
|
| 011. |
0451250080
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 013. |
3426023614
|
[1] |
CASE GEAR
|
0.0000(lbs); 0.000
|
| 013. |
3426023615
|
[1] |
CASE GEAR
|
0.0000(lbs); 0.000
|
| 014. |
3415014142
|
[2] |
GASKET
|
0.0000(lbs); 0.000
|
| 015. |
0501201020
|
[4] |
PIN STRAIGHT
|
0.0286(lbs); 0.013
|
| 016. |
3422014282
|
[8] |
STUD
|
0.0000(lbs); 0.000
|
| 017. |
0451250100
|
[8] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 018. |
0211850100
|
[8] |
NUT
|
0.0110(lbs); 0.005
|
| 019. |
3426023650
|
[1] |
COVER
|
1.7600(lbs); 0.800
|
| 020. |
3426023660
|
[1] |
GASKET
|
0.1320(lbs); 0.060
|
| 021. |
0113051020
|
[8] |
BOLT
|
0.0000(lbs); 0.000
|
