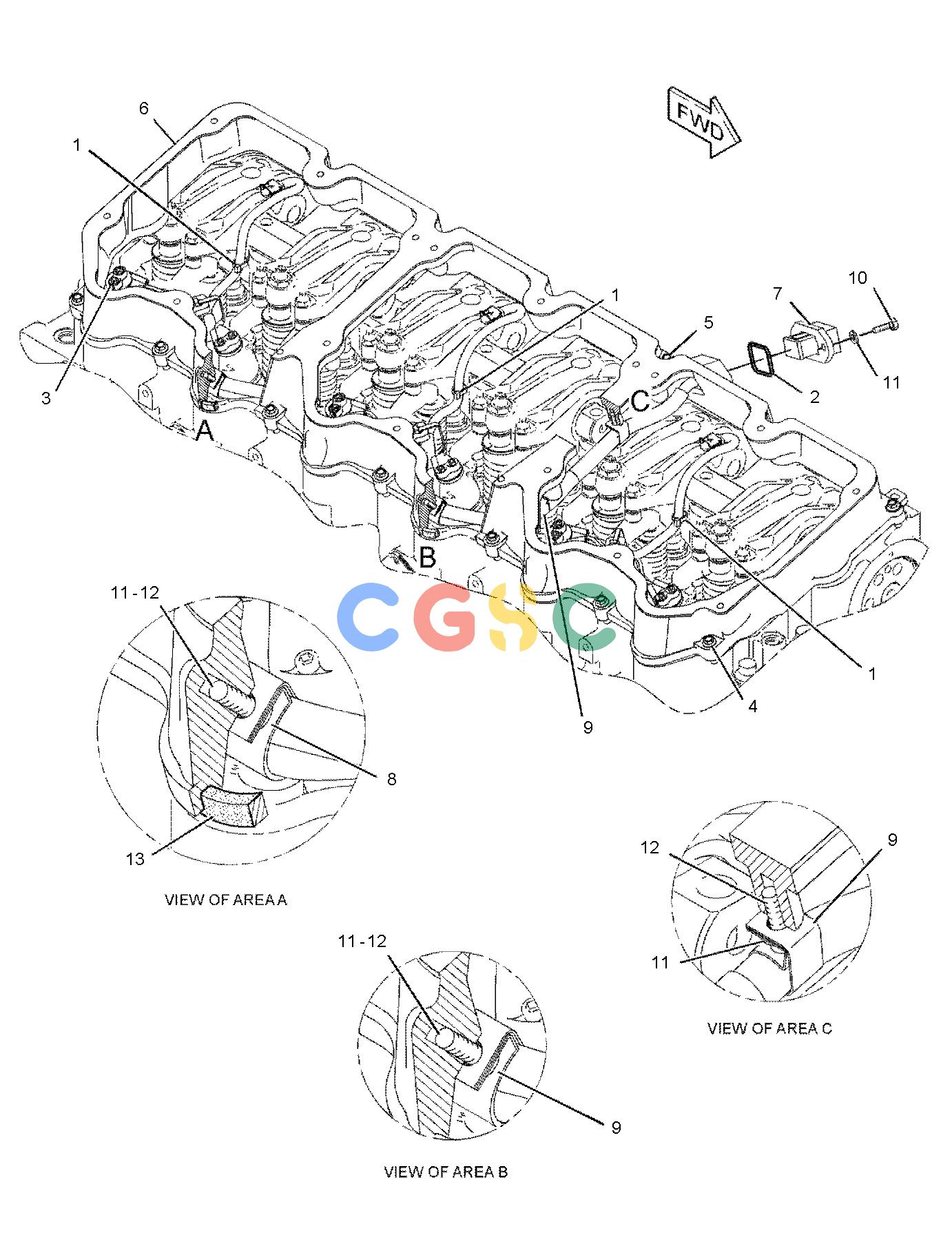

卡特零件查询（735） 234-5005: BASE GP-VALVE COVER & INJ HARN
广数供应链运营团队, 16 02月, 2025，浏览：
390 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 123-3202B | [3] | STRAP-CABLE | |
| 2. | 6V-0128 | [1] | SEAL-CONNECTOR | |
| 3. | 7E-6508 | [6] | CAP AS | |
| 4. | 9L-8925 | [14] | BOLT(5/16-18X1.25-IN) | |
| 5. | 122-1472 | [1] | BOLT(5/16-18X2.36-IN) | |
| 6. | 177-4152 | [1] | BASE-VALVE MECHANISM COVER | |
| 7. | 234-5002 | [1] | HARNESS AS-ENGINE(INJECTOR, VARIABLE VALVE) | |
| | 102-8801 | [1] | KIT-RECEPTACLE(12-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 103-8134 | [1] | KIT-RECEPTACLE(12-PIN) | |
| | | | (INCLUDES RECEPTACLE AS & WEDGE) |
| | 3S-2093 | [6] | STRAP-CABLE | |
| | 119-3662E | | TUBE-HEAT SHRINK(10.85-MM DIA)(13-CM) | |
| | 125-7875E | | TUBE-HEAT SHRINK(7.44-MM DIA)(15-CM) | |
| | 9X-3401 | [12] | PIN-CONNECTOR(16-GA TO 18-GA) | |
| | | | -OR- |
| | 126-1767 | [12] | PIN-CONNECTOR(14-GA TO 16-GA) | |
| 8. | 100-5218 | [3] | CLIP | |
| 9. | 100-5219 | [3] | CLIP | |
| 10. | 4F-7957 | [2] | BOLT(1/4-20X0.875-IN) | |
| 11. | 5P-0537 | [8] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 12. | 8H-3127 | [6] | BOLT(1/4-20X0.75-IN) | |
| 13. | 5P-5678D | | SEAL(3-M) | |
| | B | | USE AS REQUIRED |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
