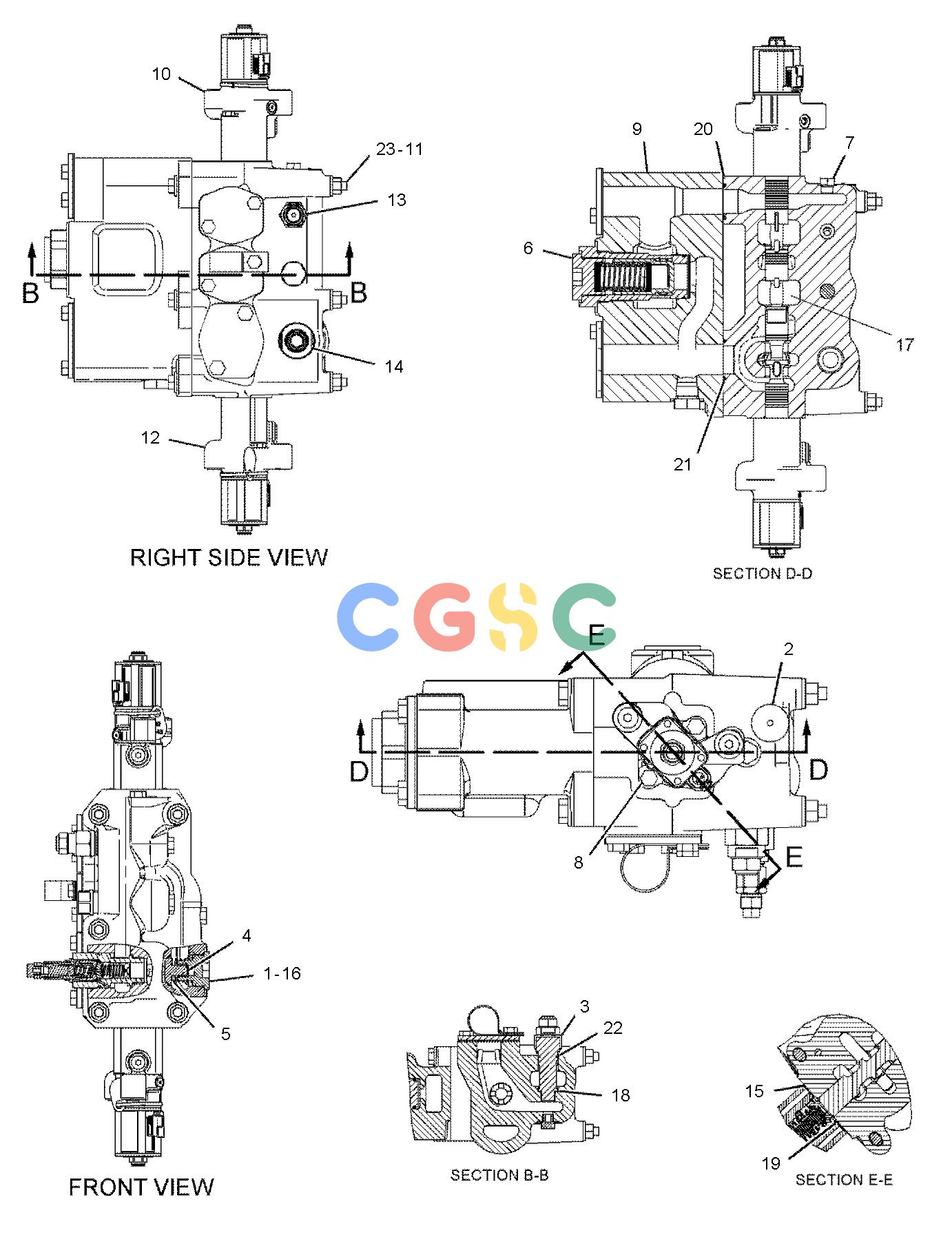

卡特零件查询（735） 336-4157: VALVE GP-CONTROL
广数供应链运营团队, 16 02月, 2025，浏览：
985 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1H-1023 | [4] | SEAL-O-RING | |
| 2. | 1U-0323 | [1] | PLUG AS | |
| 2A. | 1U-0322 | [1] | BUSHING | |
| | 3G-2683 | [1] | PLUG | |
| 3. | 2S-4078 | [1] | SEAL-O-RING | |
| 4. | 3K-0360 | [1] | SEAL-O-RING | |
| 6. | 4D-3107 | [2] | SEAL-O-RING | |
| 7. | 4J-0522 | [1] | SEAL-O-RING | |
| 8. | 4J-0523 | [1] | SEAL-O-RING | |
| 9. | 6E-6129 | [1] | PLUG-MAIN RELIEF | |
| 10. | 7J-7423 | [1] | VALVE-CONTROL(HOIST CONTROL) | |
| 11. | 361-3549 | [1] | SEAL-O-RING | |
| 12. | 126-6099Y | [1] | VALVE GP-RELIEF(HOIST CONTROL) | |
| 13. | 148-8407 | [1] | PLUG AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 9S-4191 | [1] | PLUG(9/16-18-THD) | |
| 14. | 164-5619 | [1] | PLUG AS | |
| | 2M-9780 | [1] | SEAL-O-RING | |
| | 9S-8006 | [1] | PLUG(7/8-14-THD) | |
| 15. | 192-6443Y | [1] | ACTUATOR GP-PILOT CONTROL(HOIST LOWER) | |
| 16. | 196-2403Y | [1] | ACTUATOR GP-PILOT CONTROL(HOIST RAISE) | |
| 17. | 204-2124Y | [1] | VALVE GP-LOWERING CONTROL(HOIST) | |
| 19. | 320-9706 | [1] | PLUG-ORIFICE | |
| 20. | 330-9801 | [1] | VALVE GP-RELIEF(HOIST CONTROL) | |
| | 9X-7712 | [1] | SEAL-O-RING | |
| | 191-2962 | [1] | SEAL-O-RING | |
| 23. | 7S-8491 | [1] | SPRING | |
| 24. | 7X-7960M | [5] | BOLT(M12X1.75X220-MM) | |
| 25. | 8T-4223 | [10] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 26. | 8T-6870M | [4] | BOLT(M8X1.25X70-MM) | |
| | | | |
| | 3J-5554F | [1] | GASKET | |
| | F | | NOT SHOWN |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
