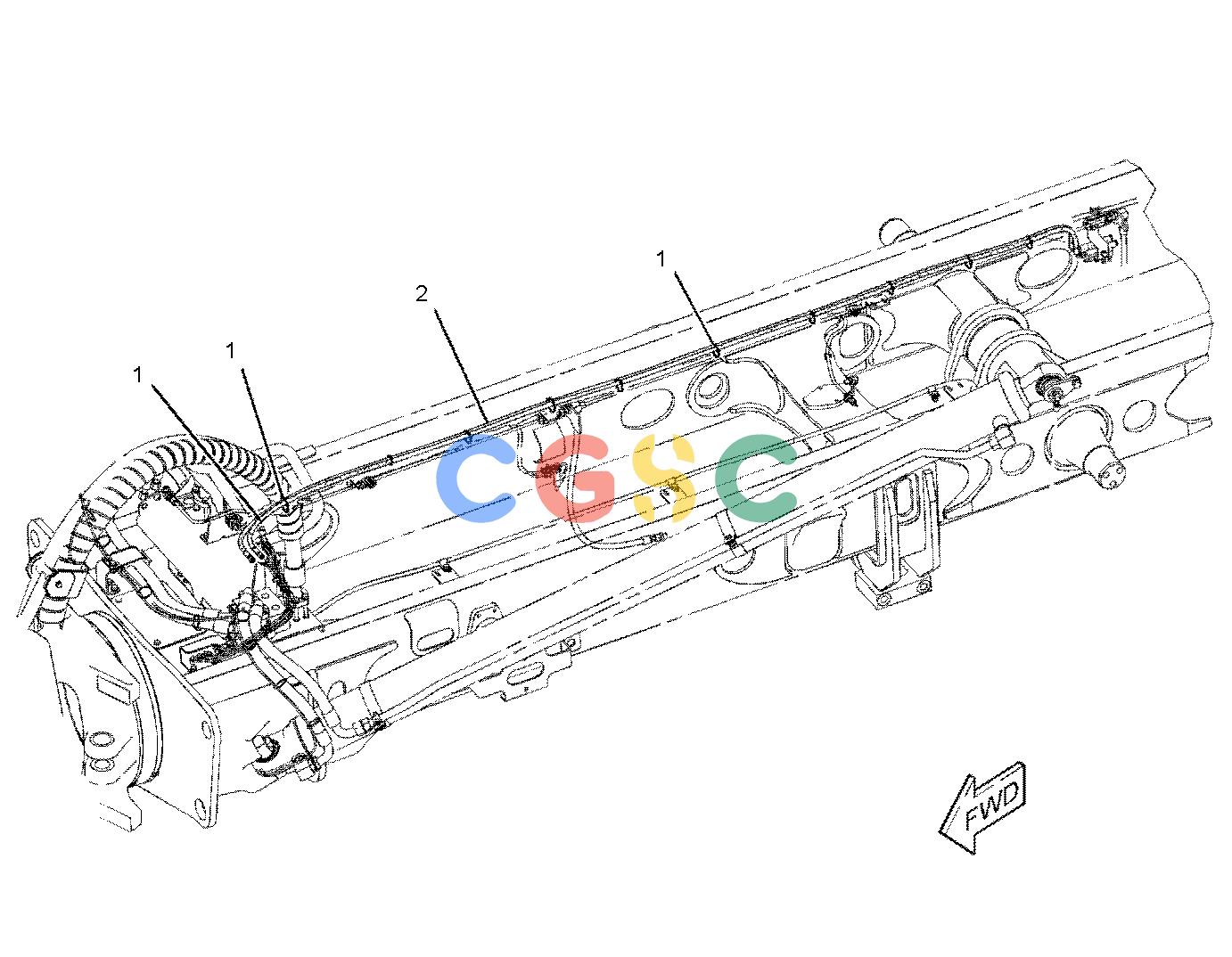

卡特零件查询（735） 360-2834: LINES GP-GREASE
广数供应链运营团队, 16 02月, 2025，浏览：
159 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-8485 | [5] | ELBOW | |
| 2. | 4U-1697 | [5] | ADAPTER-BULKHEAD | |
| 3. | 5B-3254 | [5] | NUT-JAM(7/16-20-THD) | |
| 4. | 5T-4381I | [1] | HOSE AS | |
| 5. | 5U-7151 | [5] | CAP-GREASE | |
| 6. | 6U-0456 | [1] | STRAP | |
| 7. | 434-2897 | [1] | HOSE AS | |
| 8. | 148-0168I | [1] | HOSE AS | |
| 9. | 424-7512 | [1] | PLATE | |
| 10. | 159-7192 | [1] | BRACKET | |
| 11. | 214-3068I | [3] | HOSE AS | |
| 12. | 360-2842 | [1] | TUBE AS | |
| 13. | 124-0174 | [1] | CLIP(LOOP) | |
| 14. | 2N-1287 | [4] | ELBOW-FLARED | |
| 15. | 5P-5008 | [2] | REDUCER | |
| 16. | 8L-6557 | [1] | CONNECTOR | |
| 17. | 8T-1887 | [4] | CLIP(SLOT) | |
| 18. | 8T-1888 | [4] | CLIP(TAB) | |
| 19. | 8T-4121 | [14] | WASHER-HARD(11X21X2.5-MM THK) | |
| 20. | 8T-4133M | [4] | NUT(M10X1.5-THD) | |
| 21. | 8T-4195M | [10] | BOLT(M10X1.5X30-MM) | |
| 22. | 8W-8909 | [4] | SLEEVE | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
