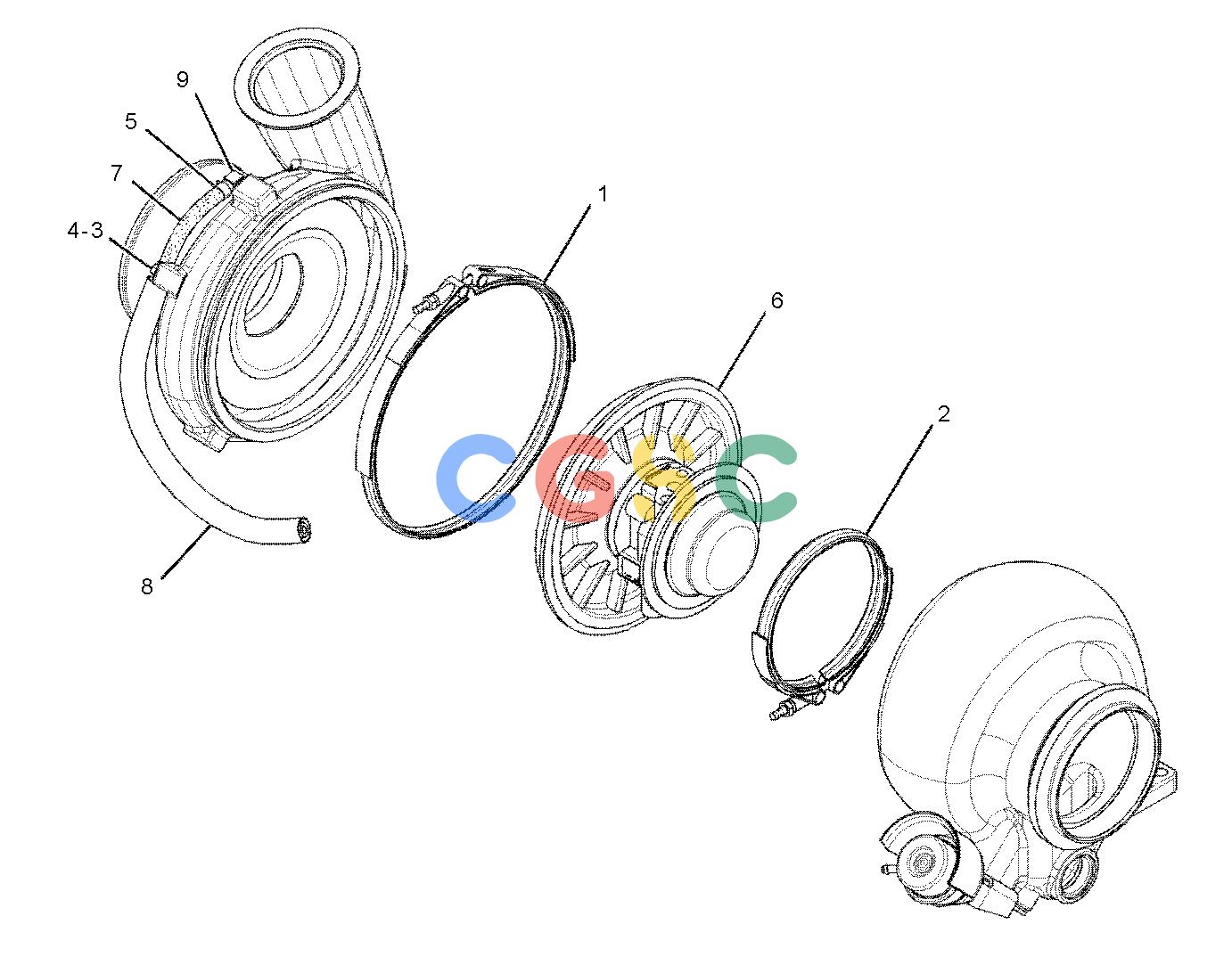

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 7W-2297 | [1] | CLAMP AS(COMPRESSOR) | |
| 2. | 9N-2038 | [1] | CLAMP AS-TURBINE | |
| 3. | 115-7087M | [1] | BOLT(M6X0.04X10.4-MM) | |
| 4. | 161-6958 | [1] | CLIP-HOSE | |
| 5. | 161-6963 | [2] | CLAMP | |
| 6. | 262-6757Y | [1] | CARTRIDGE GP-TURBOCHARGER | |
| 7. | 242-3360E | HOSE(43-CM) | ||
| 8. | 258-4524E | SLEEVE(33-CM) | ||
| 9. | 5P-4536 | [1] | ELBOW | |
| E | ORDER BY THE CENTIMETER | |||
| M | METRIC PART | |||
| R | REMANUFACTURED PART MAY BE AVAILABLE | |||
| Y | SEPARATE ILLUSTRATION | |||
