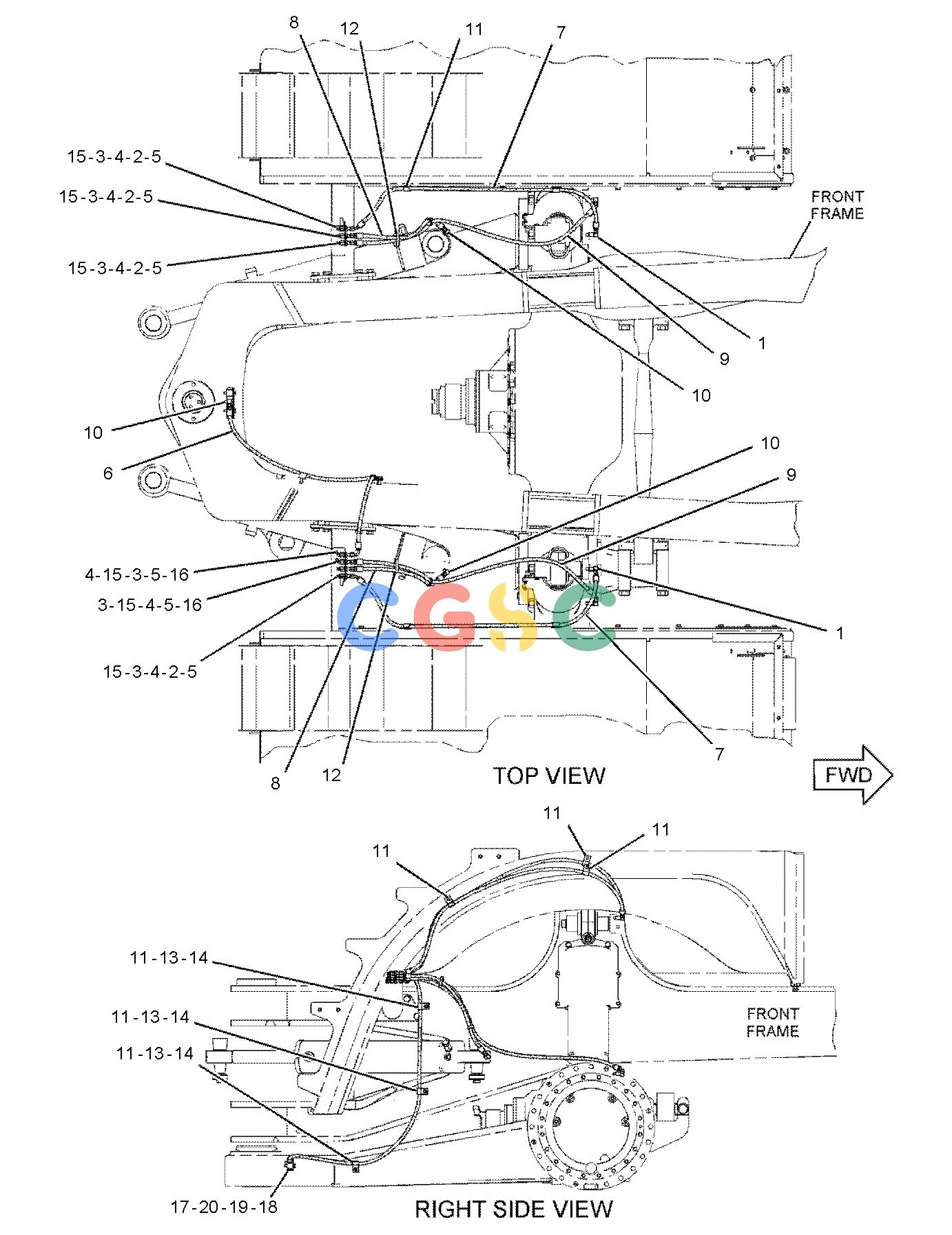

卡特零件查询（740） 311-2327: LINES GP-CENTRAL LUBRICATION
广数供应链运营团队, 16 02月, 2025，浏览：
257 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 177-3464 | [6] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 277-3072M | [1] | NUT(M10X1-THD) | |
| | 277-3073 | [1] | FITTING-COMPRESSION | |
| 2. | 221-1585 | [2] | INJECTOR AS-GREASE(NO. 8.5)(DOSER) | |
| | | | (EACH INCLUDES) |
| | 277-3072M | [1] | NUT(M10X1-THD) | |
| | 277-3073 | [1] | FITTING-COMPRESSION | |
| 3. | 252-9819 | [1] | TUBE(LH) | |
| 4. | 252-9820 | [1] | TUBE(RH) | |
| 5. | 263-1948 | [4] | TUBE AS | |
| 6. | 311-1717 | [1] | TUBE | |
| 7. | 311-1718 | [1] | TUBE | |
| 8. | 3U-2752 | [2] | CLIP(LOOP) | |
| 9. | 5C-9553M | [4] | BOLT(M6X1X16-MM) | |
| 10. | 6D-4246 | [1] | CLIP(LOOP) | |
| 11. | 7K-1181 | [14] | STRAP-CABLE | |
| 12. | 8M-2771 | [4] | CLIP | |
| 13. | 8T-4121 | [15] | WASHER-HARD(11X21X2.5-MM THK) | |
| 14. | 8T-4191M | [13] | BOLT(M10X1.5X16-MM) | |
| 15. | 9M-4995 | [10] | CLIP | |
| 16. | 9X-8256 | [4] | WASHER(6.6X12X2-MM THK) | |
| 17. | 161-9030E | | HOSE(360-CM EACH) | |
| 17A. | 161-9030E | | HOSE(520-CM EACH) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
