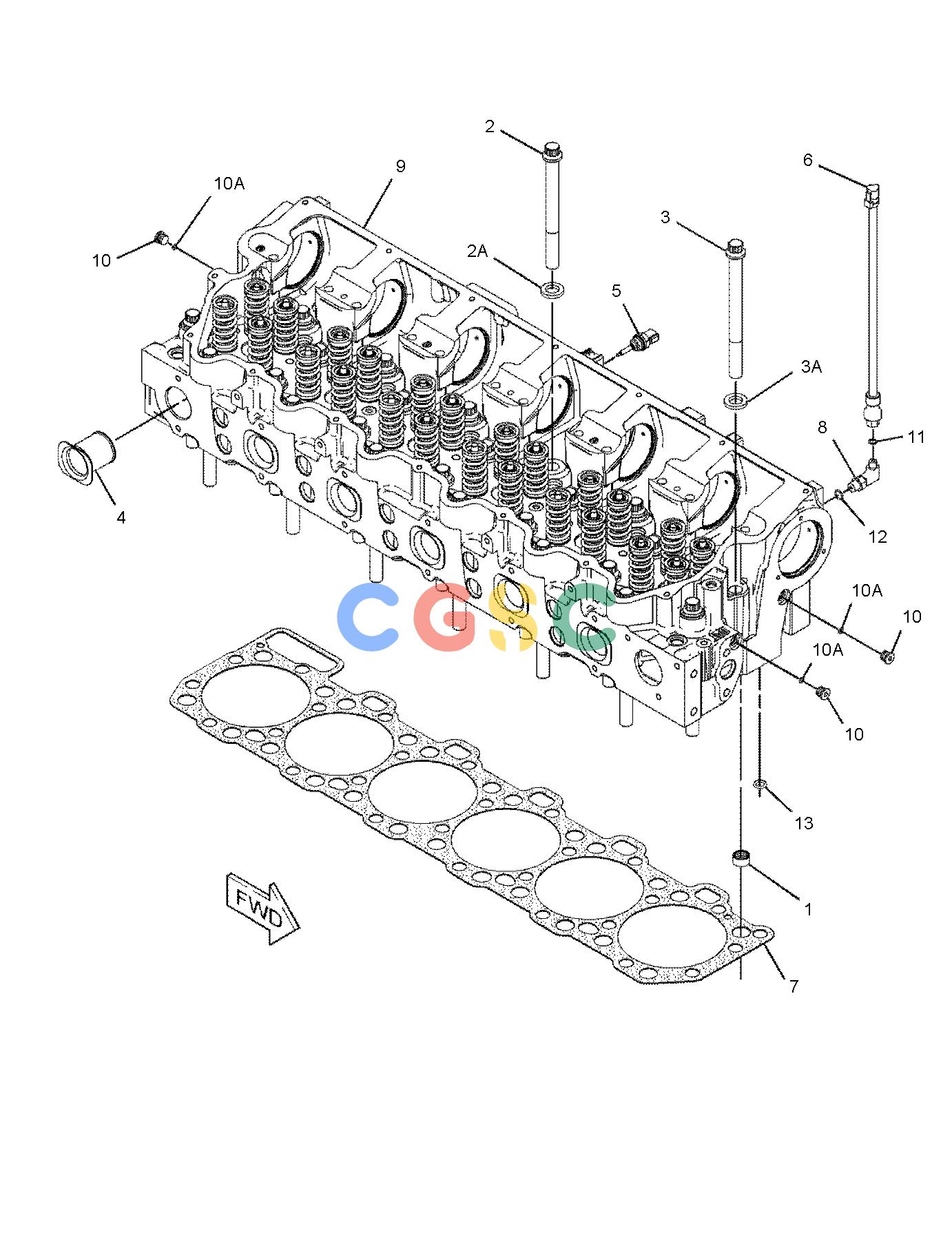

卡特零件查询（740） 235-3177: CYLINDER HEAD GP
广数供应链运营团队, 16 02月, 2025，浏览：
339 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3E-6772 | [24] | SEAL(WATER) | |
| 2. | 6I-4025 | [16] | FASTENER GP-CYLINDER HEAD | |
| | | | (EACH INCLUDES) |
| 2A. | 5H-1504 | [1] | WASHER-HARD(20X33.5X5-MM THK) | |
| | 124-1855 | [1] | BOLT-12 POINT HEAD(3/4-16X7.638-IN) | |
| 3. | 106-5673 | [10] | FASTENER GP-CYLINDER HEAD | |
| | | | (EACH INCLUDES) |
| 3A. | 5H-1504 | [1] | WASHER-HARD(20X33.5X5-MM THK) | |
| | 124-1854 | [1] | BOLT-12 POINT HEAD(3/4-16X8.5-IN) | |
| 4. | 194-8124 | [6] | SLEEVE AS(EXHAUST PORT) | |
| 5. | 197-8391Y | [1] | SENSOR GP-TEMPERATURE(INLET AIR) | |
| 6. | 214-7566 | [6] | SEAL-O-RING | |
| 7. | 224-5122 | [1] | GASKET(CYLINDER HEAD) | |
| 8. | 241-6186 | [1] | ELBOW | |
| 9. | 263-5055CY | [1] | CYLINDER HEAD GP | |
| 10. | 183-3407 | [3] | PLUG AS | |
| | | | (EACH INCLUDES) |
| | 9S-8004 | [1] | PLUG(9/16-18-THD) | |
| 10A. | 214-7568 | [1] | SEAL-O-RING | |
| 11. | 194-6724Y | [1] | SENSOR GP-PRESSURE(INLET MANIFOLD AIR) | |
| 12. | 214-7568 | [1] | SEAL-O-RING | |
| 13. | 5P-0840 | [1] | SEAL-O-RING | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
