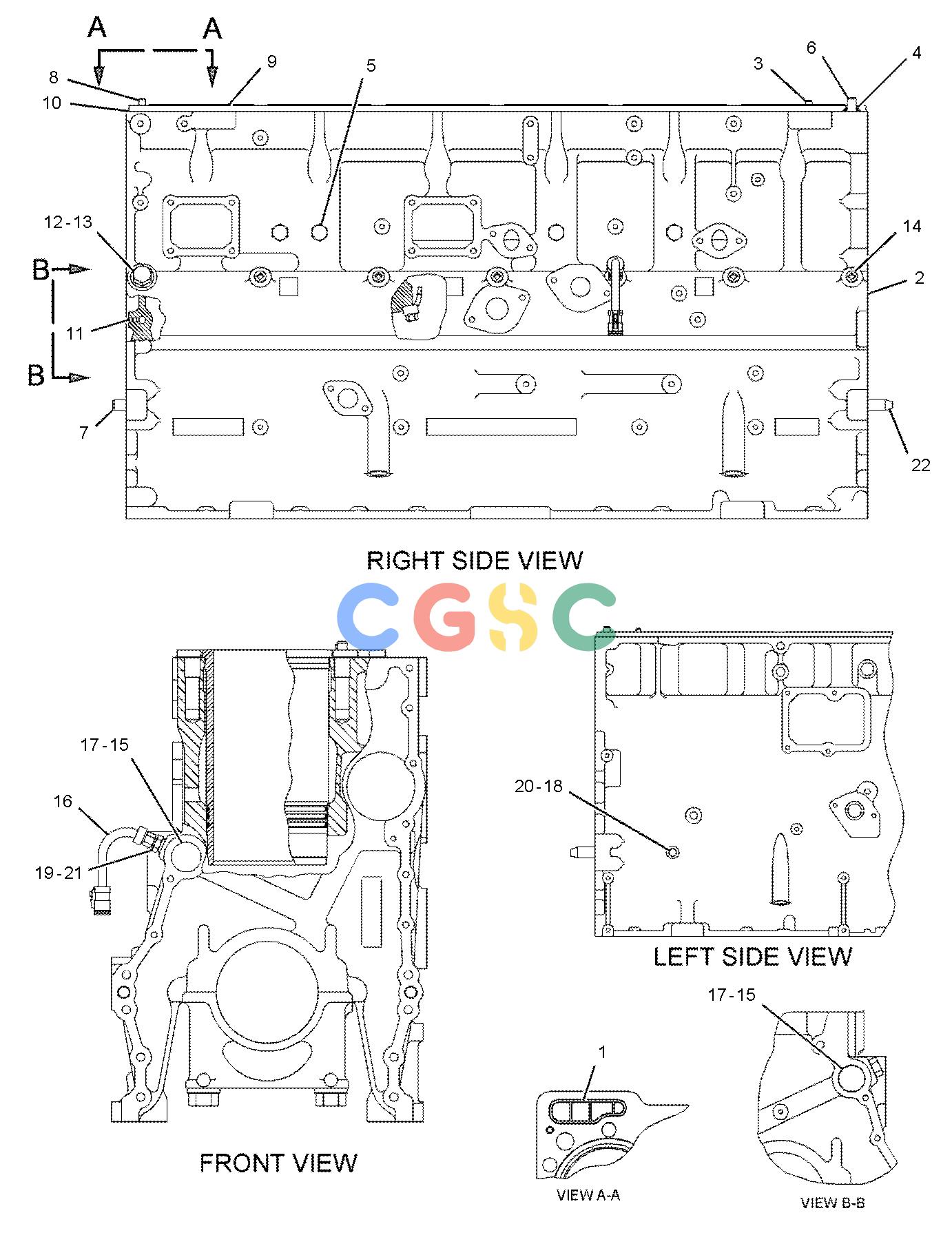

卡特零件查询（740） 146-2741: CYLINDER BLOCK GP
广数供应链运营团队, 16 02月, 2025，浏览：
315 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 142-2329 | [1] | SEAL | |
| 2. | 202-1261CY | [1] | CYLINDER BLOCK GP | |
| 3. | 1S-9540 | [1] | DOWEL | |
| 4. | 5P-0840 | [1] | SEAL-O-RING | |
| 5. | 7W-6492 | [4] | PLUG-PIPE(1/2-14-THD) | |
| 6. | 6I-1055 | [1] | DOWEL | |
| 7. | 4N-0683 | [2] | DOWEL | |
| 8. | 4N-1650 | [1] | DOWEL | |
| 9. | 6I-4421 | [1] | PLATE-SPACER | |
| 10. | 227-1204 | [1] | GASKET | |
| 11. | 8S-9094 | [1] | PLUG-ORIFICE | |
| 12. | 9S-4190 | [1] | PLUG-O-RING(7/8-14-THD) | |
| 13. | 114-4427 | [1] | SEAL-O-RING | |
| 14. | 7X-7732 | [5] | PLUG-PIPE | |
| 15. | 250-0466 | [2] | SEAL-O-RING | |
| 16. | 194-6725CY | [1] | SENSOR GP-PRESSURE(ENGINE OIL) | |
| 17. | 100-7399 | [2] | PLUG | |
| 18. | 9X-7378 | [1] | SEAL-O-RING | |
| 19. | 6V-5048 | [1] | SEAL-O-RING | |
| 20. | 9S-4182 | [1] | PLUG(7/16-20-THD) | |
| 21. | 3E-7448 | [1] | CONNECTOR | |
| 22. | 266-6038 | [2] | DOWEL | |
| | | | |
| | 6I-4361ABFN | | INSERT-LINER SEAT(0.772-MM THK) | |
| | 9Y-3368ABFN | | INSERT-LINER SEAT(0.822-MM THK) | |
| | 6I-4362ABFN | | INSERT-LINER SEAT(0.872-MM THK) | |
| | 6I-4363ABFN | | INSERT-LINER SEAT(1.555-MM THK) | |
| | 2W-3815ABFN | | INSERT-LINER SEAT(1.605-MM THK) | |
| | 6I-4364ABFN | | INSERT-LINER SEAT(1.655-MM THK) | |
| | 6I-4365ABFN | | INSERT-LINER SEAT(2.66-MM THK) | |
| | 5N-0093ABFN | | INSERT-LINER SEAT(2.71-MM THK) | |
| | 6I-4366ABFN | | INSERT-LINER SEAT(2.76-MM THK) | |
| | 101-0524ABFN | | INSERT-LINER SEAT(5.16-MM THK) | |
| | 101-0523ABFN | | INSERT-LINER SEAT(5.21-MM THK) | |
| | 101-0525ABFN | | INSERT-LINER SEAT(5.26-MM THK) | |
| | A | | NOT PART OF THIS GROUP |
| | B | | USE AS REQUIRED |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | F | | NOT SHOWN |
| | N | | FOR SALVAGE OF DAMAGED LIFTER BORES IN CYLINDER BLOCK REFER TO SEBF8076 IN SIS WEB |
| | Y | | SEPARATE ILLUSTRATION |
