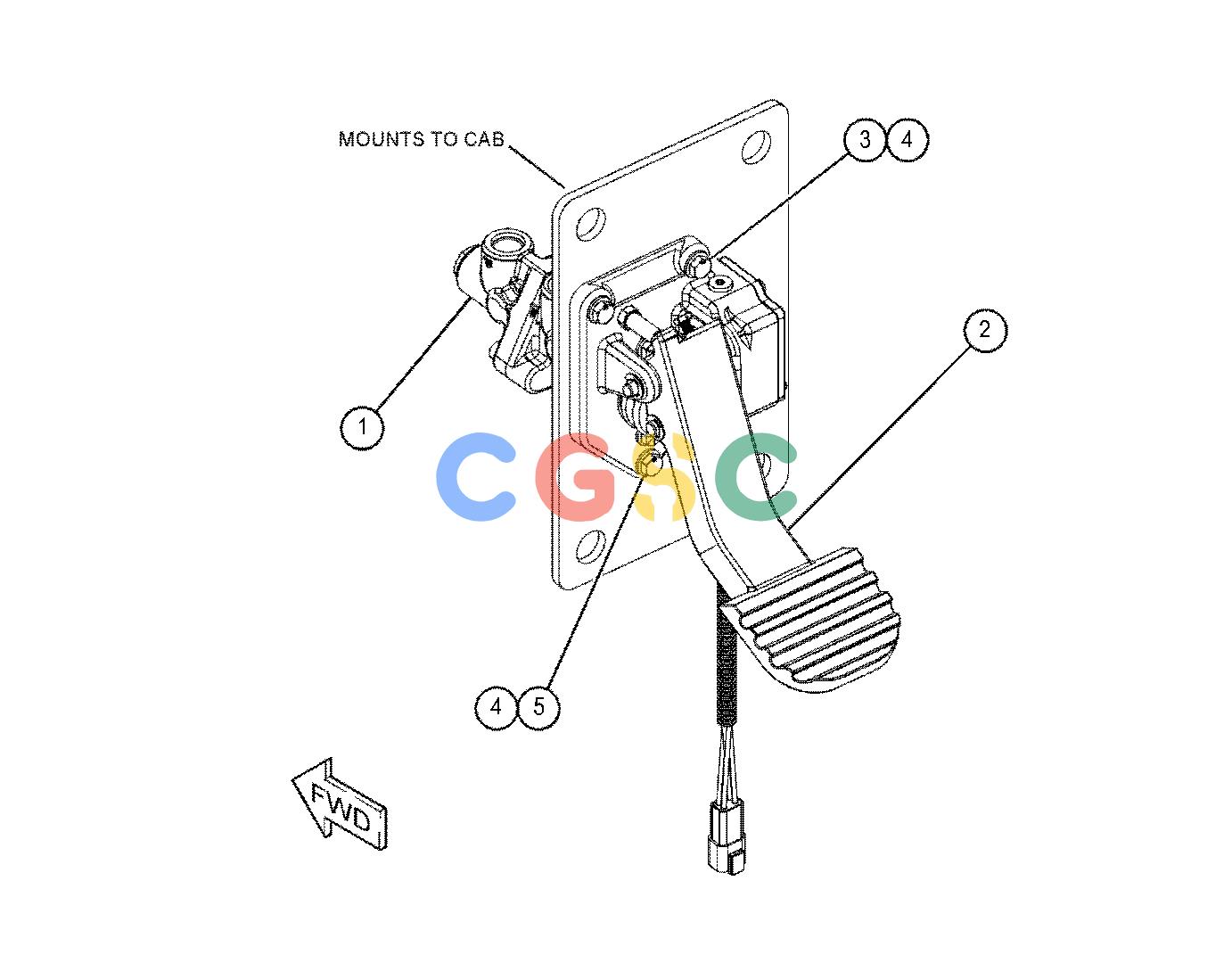

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 507-8825J | [1] | VALVE GP-BRAKE CONTROL | |
| 2. | 379-1040Y | [1] | PEDAL GP-BRAKE | |
| 3. | 8T-7547M | [3] | BOLT(M8X1.25X30-MM) | |
| 4. | 8T-4224 | [5] | WASHER-HARD(8.8X16X2-MM THK) | |
| 5. | 6V-8918 | [2] | BOLT(5/16-18X1.25-IN) | |
| AVAILABLE REPAIR KIT(S): | ||||
| 388-9424J | [1] | KIT-REPAIR | ||
| (INCLUDES BOOT, WIPER SEAL, QUAD-RING SEAL & O-RING SEALS) | ||||
| J | KIT MARKED J SERVICES PART(S) MARKED J | |||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
