卡特零件查询（AP-1000B） 232-6222: VALVE & MTG GP-CONTROL
广数供应链运营团队, 16 02月, 2025，浏览：
762 次

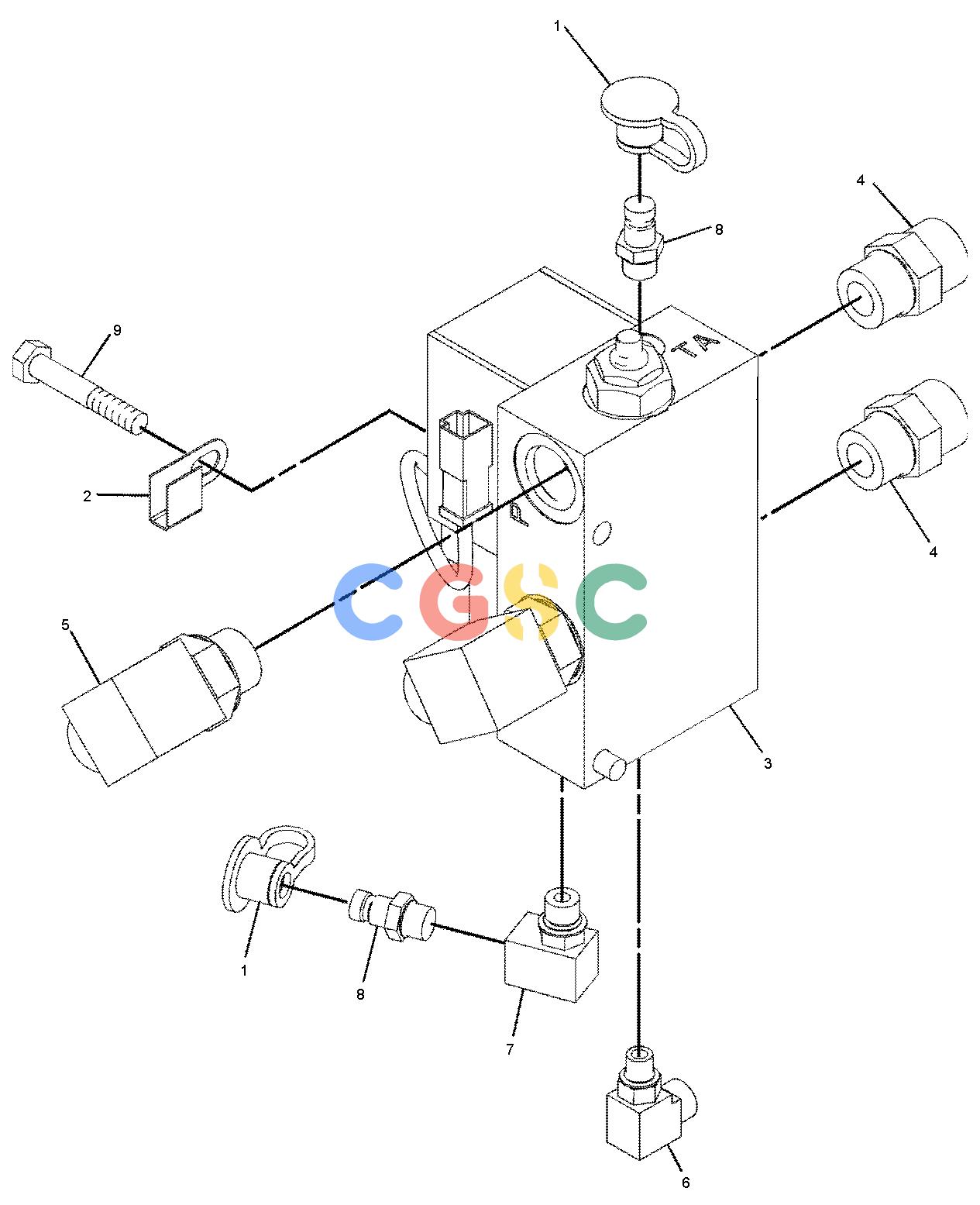

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-0852 | [2] | CAP-DUST | |
| 2. | 116-0118 | [1] | CLIP | |
| 3. | 227-5105Y | [1] | VALVE GP-CONTROL(GENERATOR) | |
| 4. | 148-8327 | [2] | CONNECTOR AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-8637 | [1] | CONNECTOR | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 5. | 148-8347 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3D-2824 | [1] | SEAL-O-RING | |
| | 6V-9007 | [1] | ELBOW | |
| | 6V-9746 | [1] | SEAL-O-RING | |
| 6. | 148-8361 | [1] | ELBOW AS(90-DEG) | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9200 | [1] | ELBOW | |
| 7. | 150-3065 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-0484 | [1] | ELBOW | |
| 8. | 164-5567 | [2] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| 9. | 8T-6466M | [2] | BOLT(M10X1.5X60-MM) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
