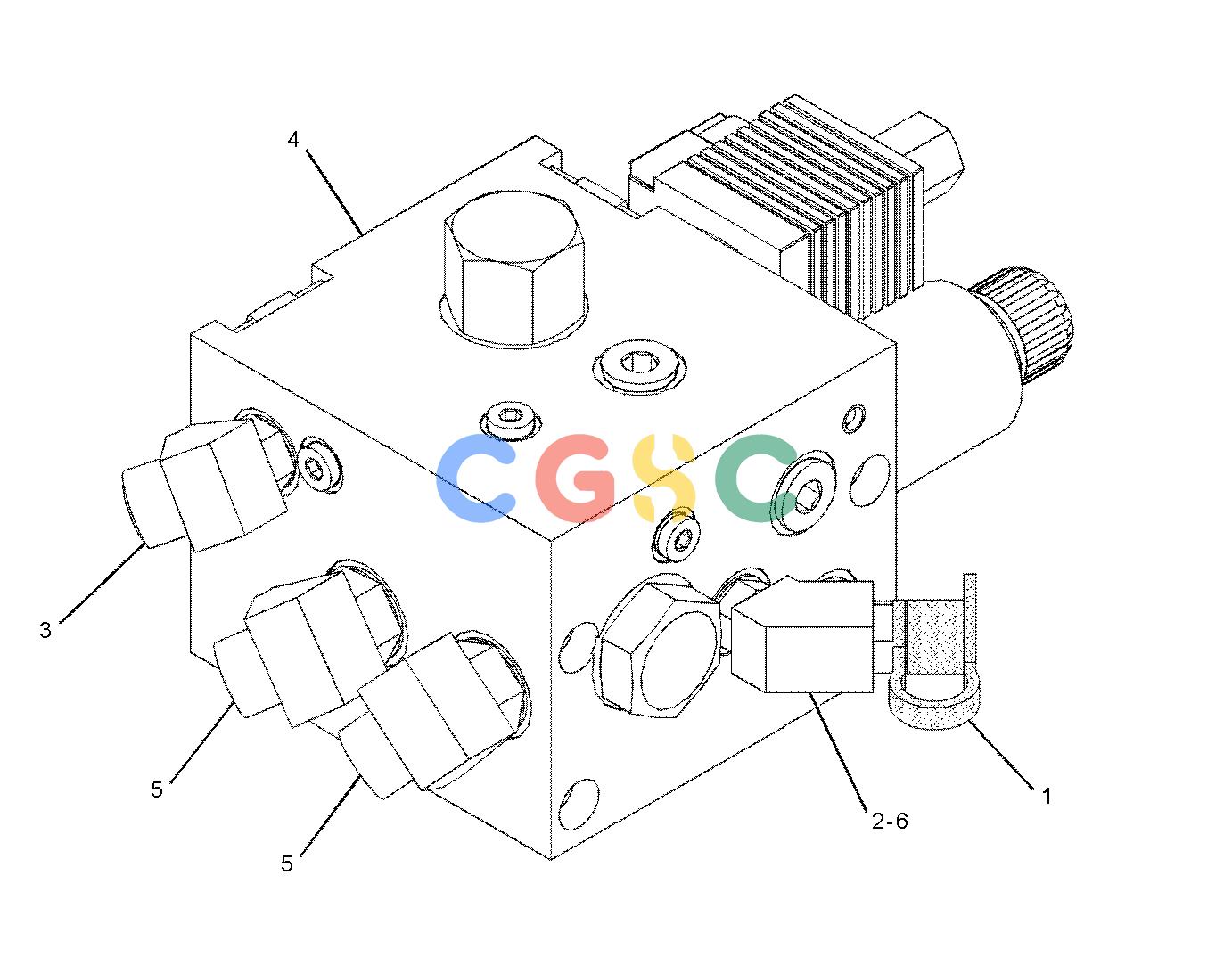

卡特零件查询（AP-1000E） 336-7936: VALVE GP-FLOW DIVIDER
广数供应链运营团队, 16 02月, 2025，浏览：
571 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 6V-0852 | [1] | CAP-DUST | |
| 2. | 165-4931 | [1] | ELBOW AS | |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8077 | [1] | ELBOW | |
| 3. | 260-9221 | [1] | ELBOW AS | |
| | 9X-2085 | [1] | ELBOW | |
| | 214-7568 | [1] | SEAL-O-RING | |
| | 228-7090 | [1] | SEAL-O-RING | |
| 4. | 326-6532Y | [1] | VALVE GP-FLOW DIVIDER(FRONT WHEEL ASSIST) | |
| 5. | 148-8354 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8398 | [1] | SEAL-O-RING | |
| | 6V-9002 | [1] | ELBOW | |
| 6. | 164-5567 | [1] | COUPLER AS-QUICK DISCONNECT(MALE) | |
| | 6V-3965 | [1] | FITTING(QUICK DISCONNECT) | |
| | 214-7568 | [1] | SEAL-O-RING | |
| | Y | | SEPARATE ILLUSTRATION |
