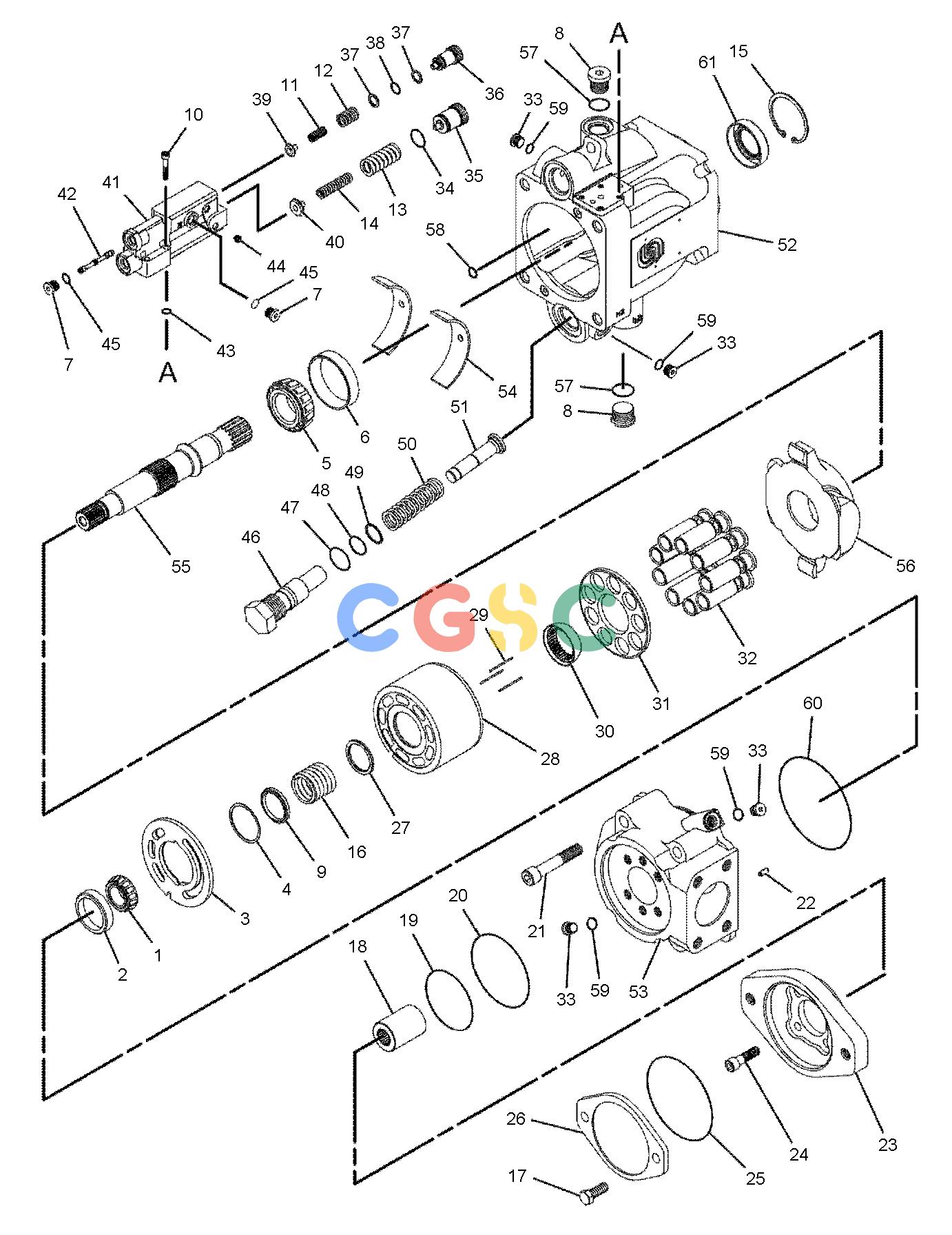

卡特零件查询（AP-1055B） 239-1490: PUMP GP-PISTON
广数供应链运营团队, 16 02月, 2025，浏览：
866 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 109-1779 | [1] | CONE-BEARING | |
| 2. | 1P-6872 | [1] | CUP-BEARING | |
| 3. | 248-1159 | [1] | PLATE-VALVE | |
| 4. | HZ | [1] | RING-RETAINING |
| 5. | 6V-8499 | [1] | CONE | |
| 6. | 002-0754 | [1] | CUP-BEARING | |
| 7. | 9S-8002 | [4] | PLUG(7/16-20-THD) | |
| 8. | 9S-8006 | [1] | PLUG(7/8-14-THD) | |
| 9. | HZ | [1] | WASHER |
| 10. | 9X-6615M | [4] | BOLT(M5X0.8X30-MM) | |
| 11. | 248-1259 | [1] | SPRING | |
| 12. | 248-1257 | [1] | SPRING | |
| 13. | 248-1260 | [1] | SPRING | |
| 14. | 248-1261 | [1] | SPRING | |
| 15. | 4M-0034 | [1] | RING-RETAINING | |
| 16. | HZ | [1] | SPRING |
| 17. | 6H-1717 | [2] | BOLT(1/2-13X1.125-IN) | |
| 18. | 248-1160 | [1] | COUPLER | |
| 19. | 5P-2931N | [1] | SEAL-O-RING | |
| 20. | 3K-0715N | [1] | SEAL-O-RING | |
| 21. | 124-5222M | [4] | BOLT(M14X2X50-MM) | |
| 22. | 231-7260 | [1] | PIN-SLOTTED | |
| 23. | 231-7248 | [1] | FLANGE-ADAPTER | |
| 24. | 232-3593 | [6] | BOLT-SOCKET HEAD | |
| 25. | 5E-8769N | [1] | SEAL-O-RING | |
| 26. | 231-7224 | [1] | COVER | |
| 27. | HZ | [1] | WASHER |
| 28. | HZ | [1] | CYLINDER BLOCK |
| 29. | HZ | [3] | PIN |
| 30. | HZ | [1] | WASHER |
| 31. | HZ | [1] | PLATE |
| 32. | HZ | [9] | PISTON |
| 33. | 9S-8002 | [4] | PLUG(7/16-20-THD) | |
| 34. | JNZ | [1] | SEAL-O-RING |
| 35. | JZ | [1] | VALVE |
| 36. | JZ | [1] | VALVE |
| 37. | JNZ | [2] | RING-BACKUP |
| 38. | JNZ | [1] | SEAL-O-RING |
| 39. | JZ | [1] | SEAT |
| 40. | JZ | [1] | SEAT |
| 41. | JZ | [1] | MANIFOLD |
| 42. | JZ | [2] | SPOOL |
| 43. | JNZ | [4] | SEAL-O-RING |
| 44. | JZ | [2] | SETSCREW |
| 45. | JNZ | [4] | SEAL-O-RING |
| 46. | LZ | [1] | VALVE |
| 47. | LNZ | [1] | SEAL-O-RING |
| 48. | LNZ | [1] | SEAL-O-RING |
| 49. | LNZ | [1] | RING-BACKUP |
| 50. | LZ | [1] | SPRING |
| 51. | LZ | [1] | PISTON |
| 52. | Z | [1] | HOUSING |
| 53. | Z | [1] | END-CAP |
| 54. | Z | [2] | BEARING |
| 55. | Z | [1] | SHAFT |
| 56. | Z | [1] | SWASHPLATE |
| 57. | NZ | [1] | SEAL-O-RING |
| 58. | NZ | [2] | SEAL-O-RING |
| 59. | NZ | [4] | SEAL-O-RING |
| 60. | NZ | [1] | SEAL-O-RING |
| 61. | NZ | [1] | SEAL-LIP |
| | | | |
| | | | AVAILABLE REPAIR KIT(S): |
| | 248-1353H | [1] | KIT-PUMP(GENERATOR PUMP ROTATING GROUP) | |
| | 248-1348J | [1] | VALVE GP-CONTROL(GENERATOR PUMP) | |
| | 248-1158L | [1] | KIT-ACTUATOR(GENERATOR PUMP) | |
| | 248-1360N | [1] | KIT-SEAL(GENERATOR PUMP) | |
| | H | | KIT MARKED H SERVIECS PART(S) MARKED H |
| | J | | KIT MARKED J SERVIECS PART(S) MARKED J |
| | L | | KIT MARKED L SERVIECS PART(S) MARKED L |
| | M | | METRIC PART |
| | N | | KIT MARKED N SERVIECS PART(S) MARKED N |
| | Z | | NOT SERVICED SEPARATELY |
