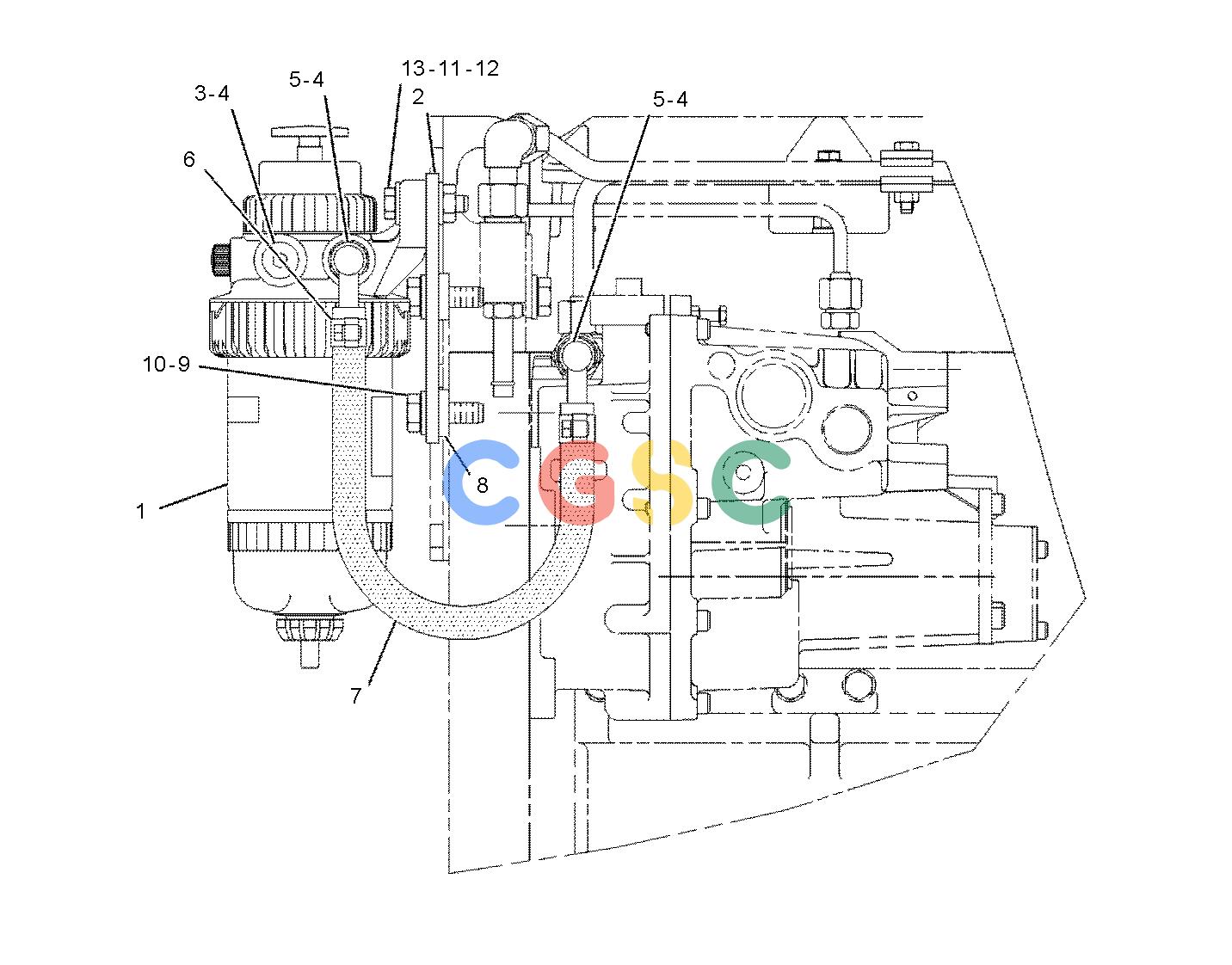

卡特零件查询（AP-1055B） 159-7574: PUMP GP-FUEL PRM & PRIM FILTER
广数供应链运营团队, 16 02月, 2025，浏览：
152 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 149-2683Y | [1] | SEPARATOR GP-WATER | |
| 2. | 7E-7603 | [1] | BRACKET | |
| 3. | 9S-8004 | [2] | PLUG(9/16-18-THD) | |
| 4. | 3J-1907 | [4] | SEAL-O-RING | |
| 5. | 5P-4924 | [2] | ELBOW | |
| 6. | 5P-4961 | [2] | CLAMP-HOSE | |
| 7. | 5P-1442E | | HOSE(40-CM) | |
| 8. | 7X-0507 | [3] | WASHER-HARD(12X22.5X5-MM THK) | |
| 9. | 8T-4195M | [3] | BOLT(M10X1.5X30-MM) | |
| 10. | 8T-4121 | [3] | WASHER-HARD(11X21X2.5-MM THK) | |
| 11. | 7X-2537M | [2] | BOLT(M8X1.25X35-MM) | |
| 12. | 5P-4116 | [4] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 13. | 5C-7261M | [2] | NUT(M8X1.25-THD) | |
| | E | | ORDER BY THE CENTIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
