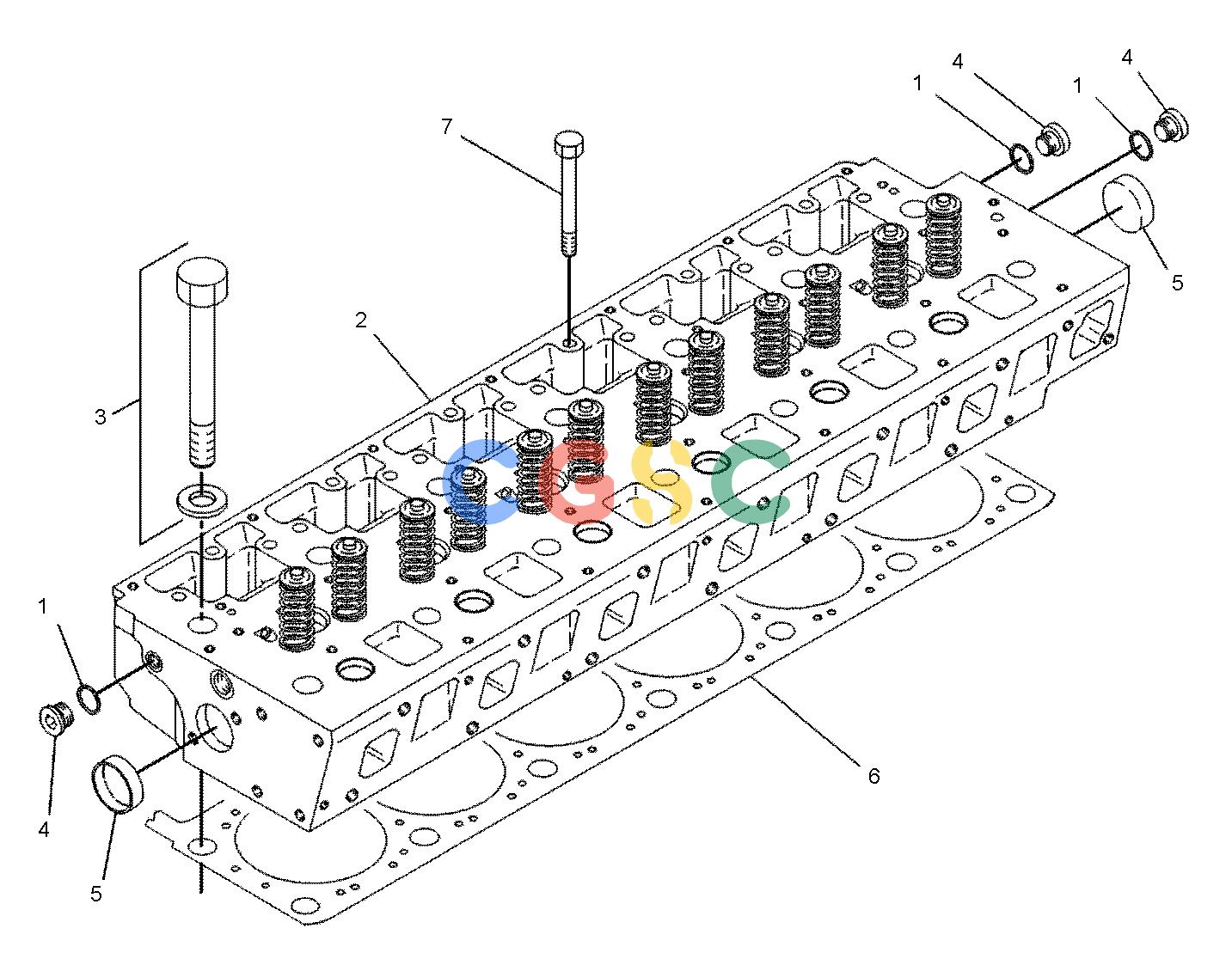

卡特零件查询（AP-1055B） 9Y-8871: CYLINDER HEAD GP
广数供应链运营团队, 16 02月, 2025，浏览：
316 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 1J-9671 | [3] | SEAL-O-RING | |
| 2. | 115-4165Y | [1] | CYLINDER HEAD GP | |
| 3. | 8T-3282 | [14] | WASHER-HARD(22X35X3.5-MM THK) | |
| | 127-4836M | [14] | BOLT(M20X2.5X160-MM) | |
| 4. | 9S-8003 | [3] | PLUG(1/2-20-THD) | |
| 5. | 2M-6471 | [2] | PLUG-CUP | |
| 6. | 107-7832 | [1] | GASKET(1.61-MM THK) | |
| | 4P-2590AB | [1] | GASKET-CYLINDER HEAD(1.85-MM THK) | |
| 7. | 8T-5030M | [6] | BOLT(M10X1.5X120-MM) | |
| | A | | NOT PART OF THIS GROUP |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
| | R | | REMANUFACTURED PART MAY BE AVAILABLE |
| | Y | | SEPARATE ILLUSTRATION |
