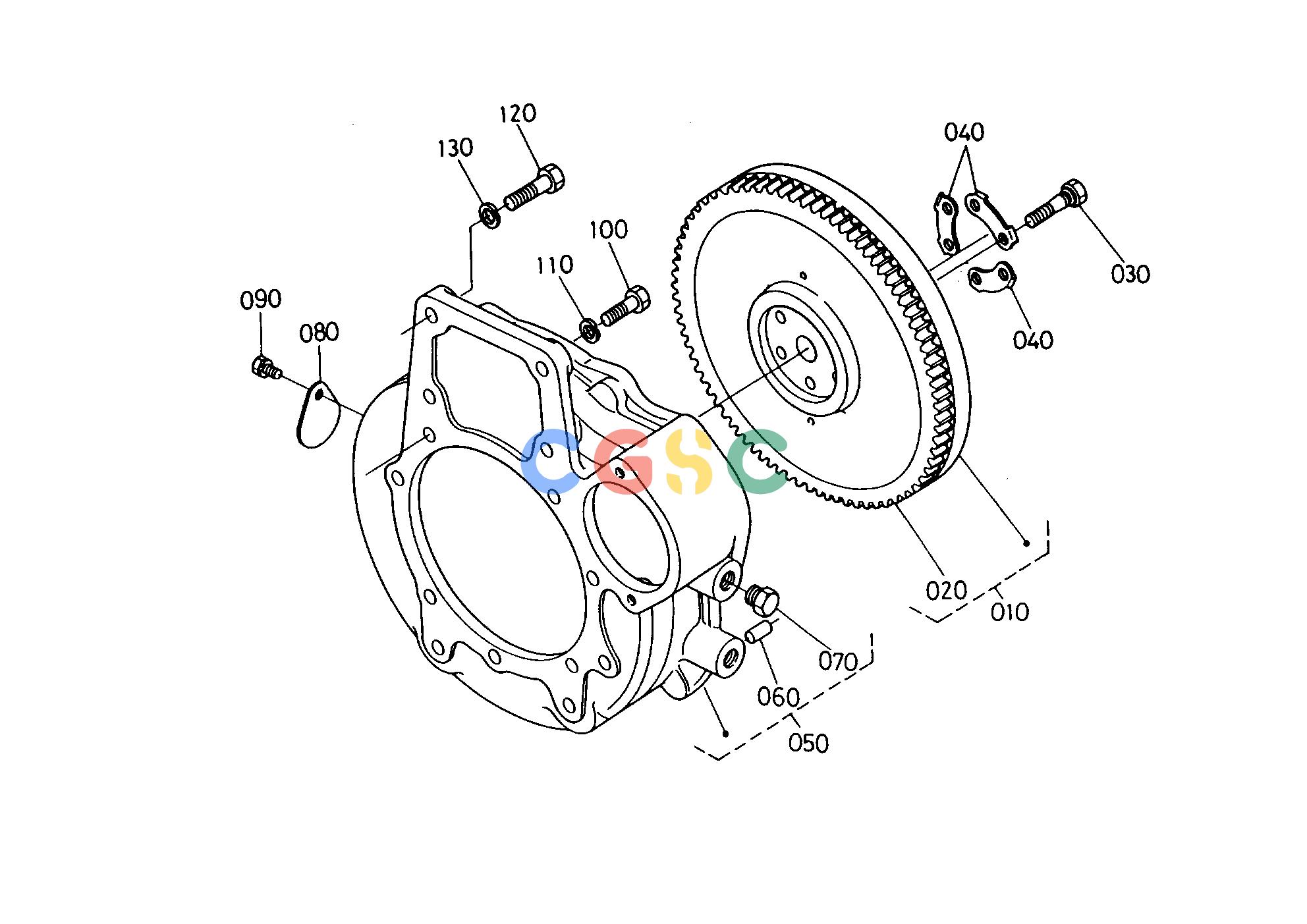

久保田零件查询T00500 FLY WHEEL ENGINEEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
933 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1533125010
|
[1] |
COMP.FLYWHEEL
|
0.0000(lbs); 0.000
|
| 010. |
1533125014
|
[1] |
COMP.FLYWHEEL
|
34.9800(lbs); 15.900
|
| 020. |
1522163820
|
[1] |
GEAR RING
|
2.6400(lbs); 1.200
|
| 030. |
1532125160
|
[6] |
BOLT FLYWHEEL
|
0.1100(lbs); 0.050
|
| 040. |
1532125170
|
[3] |
WASHER FLYWHEEL
|
0.0220(lbs); 0.010
|
| 050. |
1534104600
|
[1] |
COMP.HOUSING F-W.
|
22.8800(lbs); 10.400
|
| 060. |
0501201025
|
[2] |
PIN STRAIGHT
|
0.0352(lbs); 0.016
|
| 070. |
3122014290
|
[4] |
PLUG
|
0.0044(lbs); 0.002
|
| 080. |
3122014170
|
[1] |
COVER
|
0.0308(lbs); 0.014
|
| 090. |
0112350814
|
[1] |
BOLT
|
0.0220(lbs); 0.010
|
| 100. |
0107351030
|
[11] |
BOLT
|
0.0616(lbs); 0.028
|
| 110. |
0451250100
|
[11] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 120. |
0107351240
|
[2] |
BOLT
|
0.1078(lbs); 0.049
|
| 130. |
0451250120
|
[2] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
