| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|

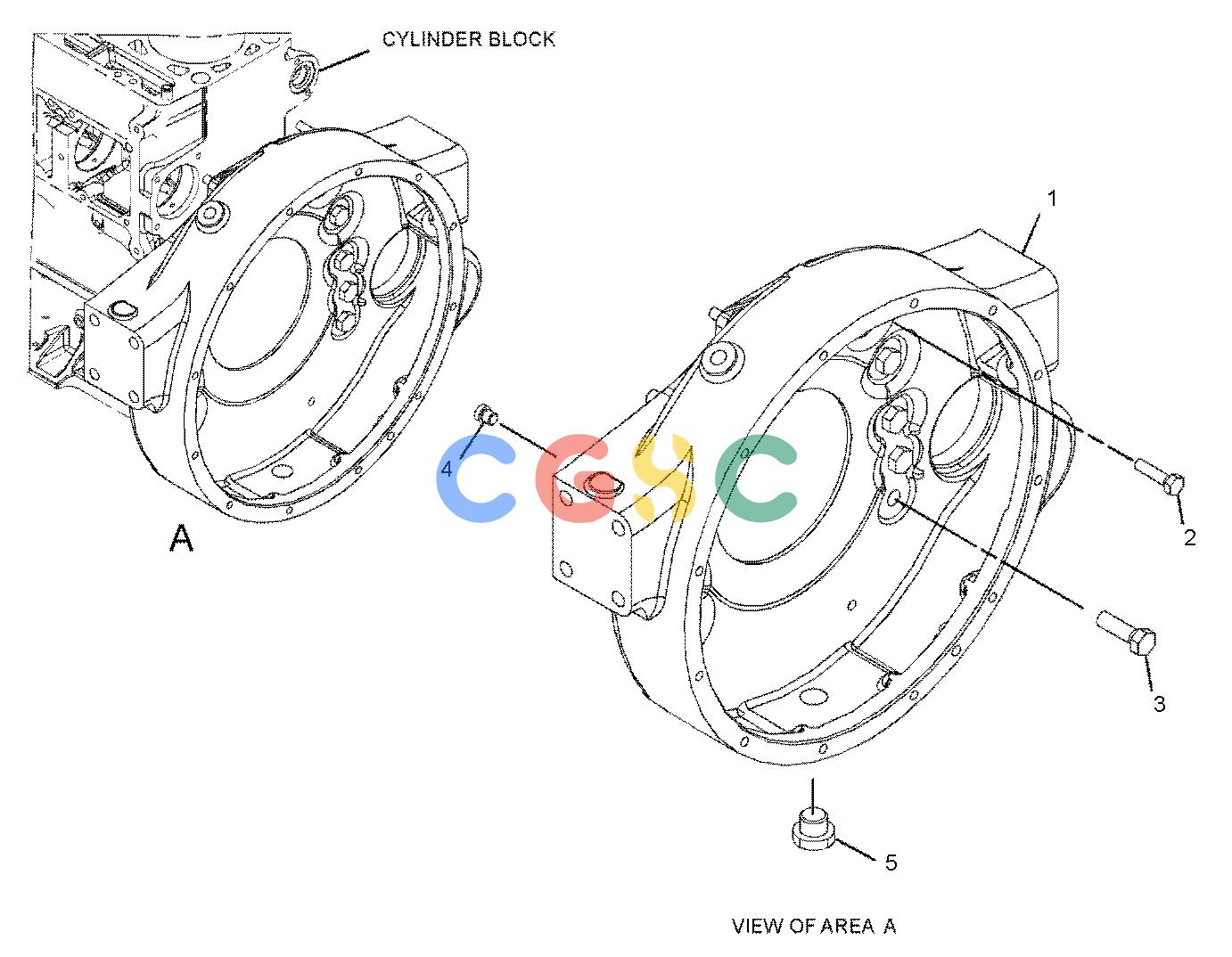

| 1. | 7C-5233 | [1] | HOUSING-FLYWHEEL | |
| 2. | 6V-5842M | [2] | BOLT(M10X1.5X40-MM) | |
| 3. | 8T-0226M | [10] | BOLT(M14X2X45-MM) | |
| 4. | 396-0393 | [1] | PLUG AS | |
| 214-7566 | [1] | SEAL-O-RING | ||
| 360-3677 | [1] | PLUG(7/16-20-THD) | ||
| 5. | 389-3709 | [1] | PLUG AS | |
| 238-5082 | [1] | SEAL-O-RING | ||
| 360-3682 | [1] | PLUG-O-RING | ||
| 1U-8846BF | SEALANT-GASKET | |||
| B | USE AS REQUIRED | |||
| F | NOT SHOWN | |||
| M | METRIC PART | |||
