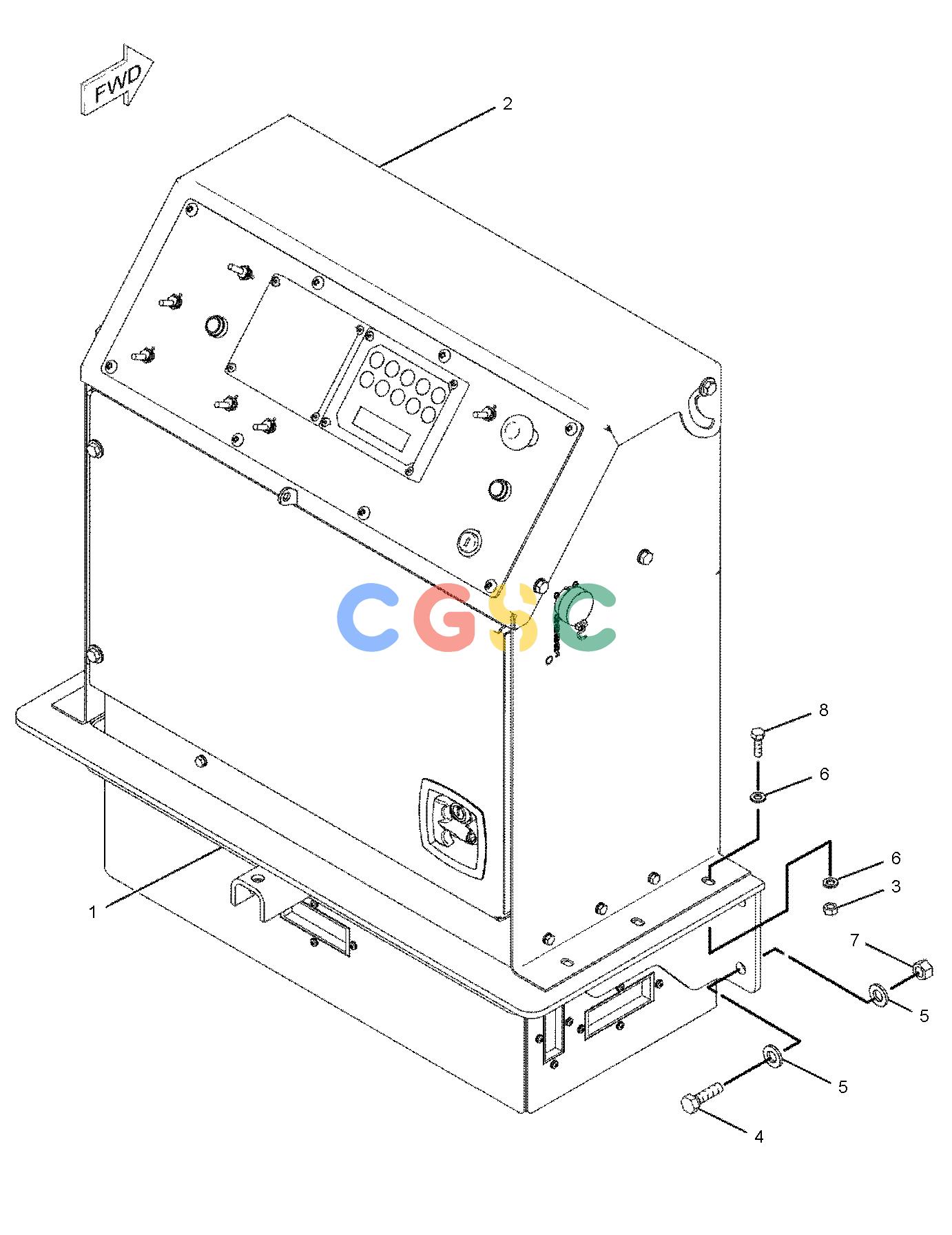

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 228-5867 | [1] | SUPPORT AS | |
| 2. | 291-2145CY | [1] | CONSOLE GP-INSTRUMENT(CENTER) | |
| 3. | 5C-7261M | [6] | NUT(M8X1.25-THD) | |
| 4. | 8T-4183M | [4] | BOLT(M12X1.75X40-MM) | |
| 5. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 6. | 8T-4224 | [12] | WASHER-HARD(8.8X16X2-MM THK) | |
| 7. | 8T-4244M | [4] | NUT(M12X1.75-THD) | |
| 8. | 8T-4908M | [6] | BOLT(M8X1.25X25-MM) | |
| C | CHANGE FROM PREVIOUS TYPE | |||
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
