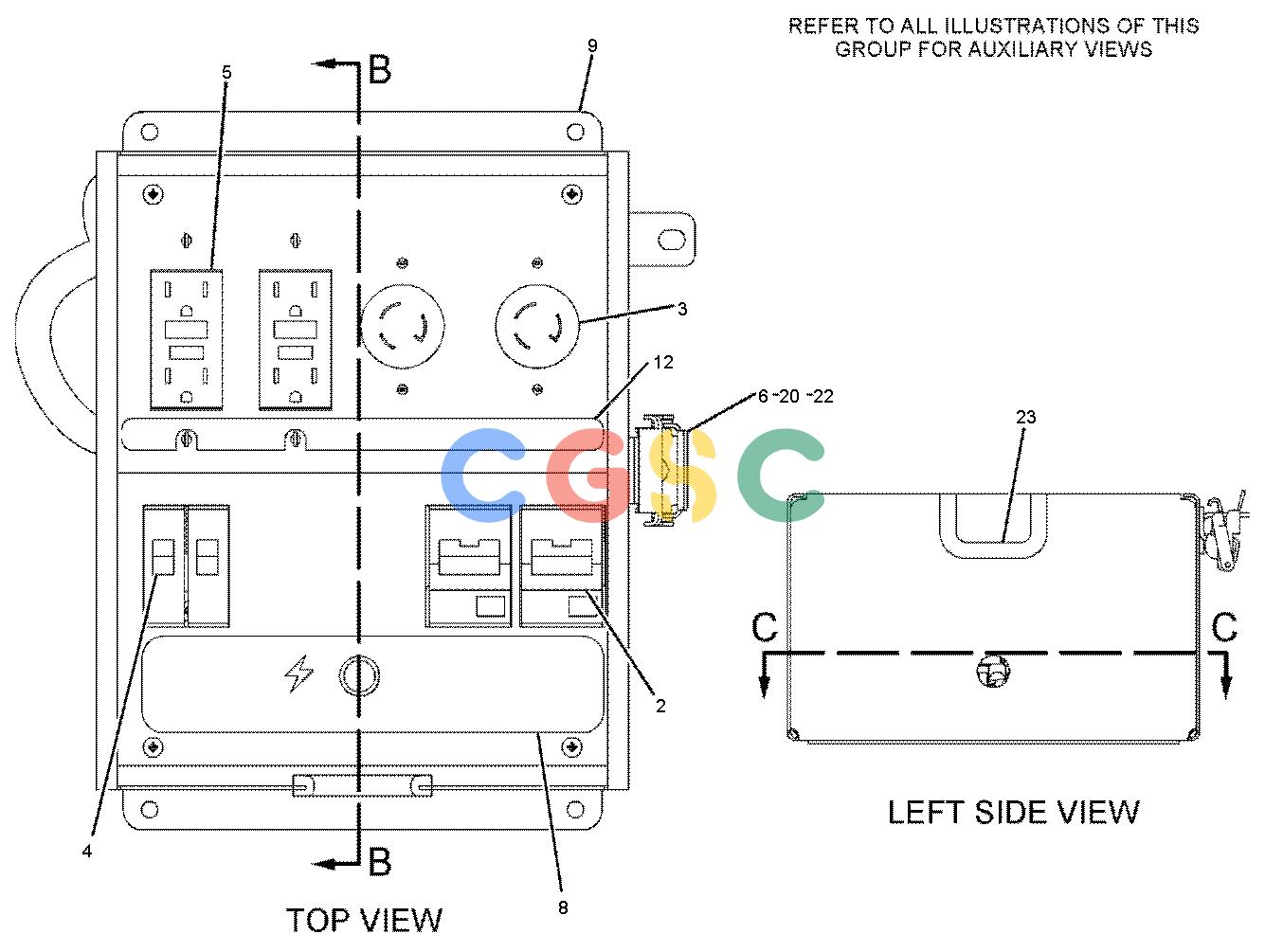

卡特零件查询（AP-1055D） 232-6362: PANEL GP-POWER
广数供应链运营团队, 16 02月, 2025，浏览：
618 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 197-0606 | [1] | STRIP-TERMINAL | |
| 2. | 197-1380 | [2] | CIRCUIT BREAKER AS(20-AMPERE)(240-VOLT RECEPTACLE) | |
| 3. | 197-1875 | [2] | RECEPTACLE | |
| 4. | 199-8406 | [2] | CIRCUIT BREAKER AS(20-AMPERE)(120-VOLT RECEPTACLE) | |
| 5. | 199-8407 | [2] | RECEPTACLE(20-AMPERE) | |
| 6. | 204-5038 | [1] | LATCH | |
| 7. | 232-0743 | [3] | MOUNT | |
| 8. | 232-6368 | [1] | FILM-IDENTIFICATION(CIRCUIT BREAKER) | |
| 9. | 241-7710 | [1] | BOX AS | |
| 10. | 241-7711 | [1] | PLATE AS | |
| 11. | 241-7712 | [1] | PLATE AS | |
| 12. | 243-1128 | [1] | FILM-IDENTIFICATION(RECEPTACLE) | |
| 13. | 243-2031 | [1] | CABLE AS | |
| 14. | 243-2033 | [1] | CABLE AS | |
| 15. | 243-2034 | [1] | CABLE AS | |
| 16. | 243-2035 | [1] | CABLE AS | |
| 17. | 243-2036 | [1] | CABLE AS | |
| 18. | 3B-4503 | [8] | LOCKWASHER | |
| 19. | 5C-2890M | [2] | NUT(M6X1-THD) | |
| 20. | 8T-4171M | [1] | BOLT(M6X1X12-MM) | |
| 21. | 8T-6693M | [21] | SCREW-MACHINE(M5X0.8X16-MM) | |
| 22. | 9X-8256 | [3] | WASHER(6.6X12X2-MM THK) | |
| 23. | 6V-5746BD | | TRIM | |
| | B | | USE AS REQUIRED |
| | D | | ORDER BY THE METER |
| | M | | METRIC PART |
