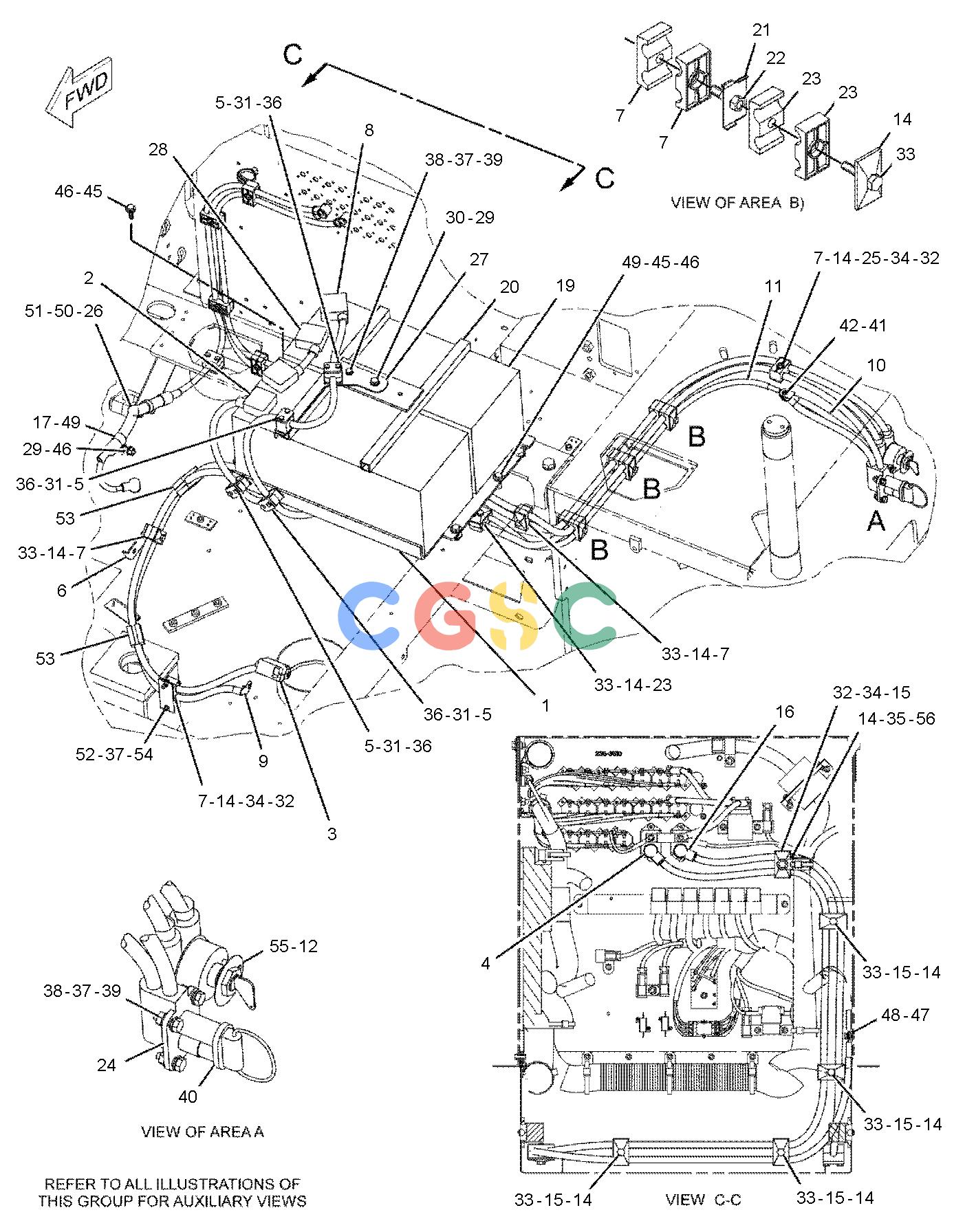

| 1. | 240-7033 | [1] | PLATE AS | |
| 2. | 240-8619 | [1] | CABLE AS | |
| | 5P-0761E | | CABLE(00-GA, RED)(66-CM) | |
| | 1S-7251 | [1] | TERMINAL-CABLE(00-GA, 1/2-IN SCREW) | |
| | 8N-0869 | [1] | COVER-TERMINAL(RED) | |
| | 9G-0002 | [1] | COVER AS-TERMINAL(RED) | |
| | 8T-9756 | [1] | TERMINAL AS-BATTERY(POSITIVE) | |
| | 1M-6119 | [1] | BOLT(5/16-18X1.375-IN) | |
| | 1M-6120 | [1] | NUT(5/16-18-THD) | |
| 3. | 240-8620 | [1] | CABLE AS | |
| | 5P-0761E | | CABLE(00-GA, RED)(134-CM) | |
| | 1S-7251 | [1] | TERMINAL-CABLE(00-GA, 1/2-IN SCREW) | |
| | 8N-0869 | [1] | COVER-TERMINAL(RED) | |
| | 9X-9825 | [1] | TERMINAL-CABLE(00-GA, 1/2-IN SCREW) | |
| 4. | 240-8624 | [1] | CABLE AS | |
| | 8C-3056E | | CABLE(2-GA, RED)(160-CM) | |
| | 3L-6513 | [1] | TERMINAL-RING(1-GA TO 2-GA, 1/2-IN SCREW) | |
| | 8T-8799 | [1] | BOOT(RED) | |
| | 9X-6932 | [1] | BOOT-TERMINAL | |
| | 115-1184 | [1] | TERMINAL-RING(2-GA, 1/4-IN SCREW) | |
| 5. | 128-5531 | [8] | CLAMP-HALF | |
| 6. | 244-1311 | [1] | PLATE AS | |
| 7. | 156-5306 | [18] | CLAMP-HALF | |
| 8. | 240-8617 | [1] | CABLE AS | |
| | 5P-0747E | | CABLE(00-GA, BLACK)(287-CM) | |
| | 1S-7252 | [1] | TERMINAL-CABLE(00-GA, 3/8-IN SCREW) | |
| | 9G-0003 | [1] | COVER AS-TERMINAL(BLACK) | |
| | 9G-8909 | [1] | COVER-TERMINAL(BLACK) | |
| | 8T-9757 | [1] | TERMINAL AS-BATTERY(NEGATIVE) | |
| | 1M-6119 | [1] | BOLT(5/16-18X1.375-IN) | |
| | 1M-6120 | [1] | NUT(5/16-18-THD) | |
| 9. | 240-8621 | [1] | CABLE AS | |
| | 5P-0747E | | CABLE(00-GA, BLACK)(303-CM) | |
| | 1S-7252 | [1] | TERMINAL-CABLE(00-GA, 3/8-IN SCREW) | |
| | 9G-8909 | [1] | COVER-TERMINAL(BLACK) | |
| | 9X-9825 | [1] | TERMINAL-CABLE(00-GA, 1/2-IN SCREW) | |
| 10. | 240-8622 | [1] | CABLE AS | |
| | 5P-0747E | | CABLE(00-GA, BLACK)(29-CM) | |
| | 1S-7251 | [1] | TERMINAL-CABLE(00-GA, 1/2-IN SCREW) | |
| | 1S-7252 | [1] | TERMINAL-CABLE(00-GA, 3/8-IN SCREW) | |
| 11. | 240-8623 | [1] | CABLE AS | |
| | 8C-0596E | | CABLE(2-GA)(218-CM) | |
| | 3L-6513 | [1] | TERMINAL-RING(1-GA TO 2-GA, 1/2-IN SCREW) | |
| | 030-1712 | [1] | TERMINAL-RING(2-GA, 1/4-IN SCREW) | |
| 12. | 7N-0718Y | [1] | SWITCH GP-DISCONNECT(BATTERY) | |
| 13. | 9W-0742Y | [1] | BLOCK GP-JUNCTION(BATTERY) | |
| 14. | 102-8703 | [16] | PLATE-COVER | |
| 15. | 154-4879 | [12] | CLAMP-HALF | |
| 16. | 240-8625 | [1] | CABLE AS | |
| | 8C-3056E | | CABLE(2-GA, RED)(165-CM) | |
| | 6T-5598 | [1] | TERMINAL-RING(1-GA TO 2-GA, 5/16-IN SCREW) | |
| | 6V-2722BD | | TUBE-HEAT SHRINK(25.4-MM DIA) | |
| | 9X-2390G | | HOSE(18.11-IN) | |
| | 8T-8799 | [2] | BOOT(RED) | |
| | 115-1184 | [1] | TERMINAL-RING(2-GA, 1/4-IN SCREW) | |
| 17. | 1S-0994 | [1] | CLIP(LOOP) | |
| 18. | 1G-8781 | [2] | CLAMP | |
| 19. | 153-5710 | [2] | BATTERY GP(12-VOLT, MAINTENANCE FREE, WET) | |
| 20. | 7X-8877 | [1] | HOLD-DOWN-BATTERY | |
| 21. | 206-0452 | [3] | PLATE | |
| 22. | 154-4890M | [3] | BOLT-STACKING(M8X1.25X33-MM) | |
| 23. | 197-4103 | [8] | CLAMP-HALF | |
| 24. | 176-3045 | [1] | RECEPTACLE AS | |
| | 1S-7251 | [2] | TERMINAL-CABLE(00-GA, 1/2-IN SCREW) | |
| | 5P-0747E | | CABLE(00-GA, BLACK)(37-CM) | |
| | 5P-0761E | | CABLE(00-GA, RED)(193-CM) | |
| | 6V-2722BD | | TUBE-HEAT SHRINK(25.4-MM DIA) | |
| 25. | 4K-8864 | [1] | CLIP(LOOP) | |
| 26. | 091-8792 | [1] | CLIP | |
| 27. | 240-6635 | [1] | BRACKET AS | |
| 28. | 163-5293 | [1] | CABLE AS | |
| | 5P-0747E | | CABLE(00-GA, BLACK)(14-CM) | |
| | 9G-0002 | [1] | COVER AS-TERMINAL(RED) | |
| | 9G-0005 | [1] | COVER AS-TERMINAL(BLACK) | |
| | 8C-5918 | [1] | TERMINAL AS-BATTERY(NEGATIVE) | |
| | 8T-9756 | [1] | TERMINAL AS-BATTERY(POSITIVE) | |
| | | | (EACH TERMINAL AS INCLUDES) |
| | 1M-6119 | [1] | BOLT(5/16-18X1.375-IN) | |
| | 1M-6120 | [1] | NUT(5/16-18-THD) | |
| 29. | 8T-4121 | [3] | WASHER-HARD(11X21X2.5-MM THK) | |
| 30. | 190-8250M | [1] | BOLT(M10X1.5X295-MM) | |
| 31. | 107-4749 | [5] | PLATE | |
| 32. | 099-3649M | [3] | BOLT(M8X1.25X40-MM) | |
| 33. | 7X-2537M | [13] | BOLT(M8X1.25X35-MM) | |
| 34. | 5P-4116 | [3] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 35. | 4P-7581 | [1] | CLIP(LADDER) | |
| 36. | 7X-2533M | [10] | BOLT(M6X1X35-MM) | |
| 37. | 8T-4224 | [12] | WASHER-HARD(8.8X16X2-MM THK) | |
| 38. | 5C-7261M | [5] | NUT(M8X1.25-THD) | |
| 39. | 8T-4908M | [5] | BOLT(M8X1.25X25-MM) | |
| 40. | 8S-2634 | [1] | COVER AS | |
| | 2P-2975 | [2] | SEAL-O-RING | |
| 41. | 8T-4223 | [5] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 42. | 6V-7687M | [1] | LOCKNUT(M12X1.75-THD) | |
| 43. | 8T-4244M | [2] | NUT(M12X1.75-THD) | |
| 44. | 8T-4183M | [2] | BOLT(M12X1.75X40-MM) | |
| 45. | 7X-7729 | [5] | WASHER(11X25X3-MM THK) | |
| 46. | 8T-4196M | [5] | BOLT(M10X1.5X35-MM) | |
| 47. | 9X-8256 | [1] | WASHER(6.6X12X2-MM THK) | |
| 48. | 7X-2619M | [1] | BOLT(M6X1X10-MM) | |
| 49. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 50. | 8T-4205 | [2] | WASHER-HARD(7.2X14.5X2-MM THK) | |
| 51. | 5C-2890M | [1] | NUT(M6X1-THD) | |
| 52. | 244-1310 | [1] | PLATE AS | |
| 53. | 6G-2256 | [2] | CLAMP | |
| 54. | 8T-4200M | [2] | BOLT(M8X1.25X16-MM) | |
| 55. | 3E-8320 | [1] | PLATE-INSTRUCTION(BATTERY) | |
| 56. | 7K-1181 | [1] | STRAP-CABLE | |
| | B | | USE AS REQUIRED |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | G | | ORDER BY THE INCH |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
