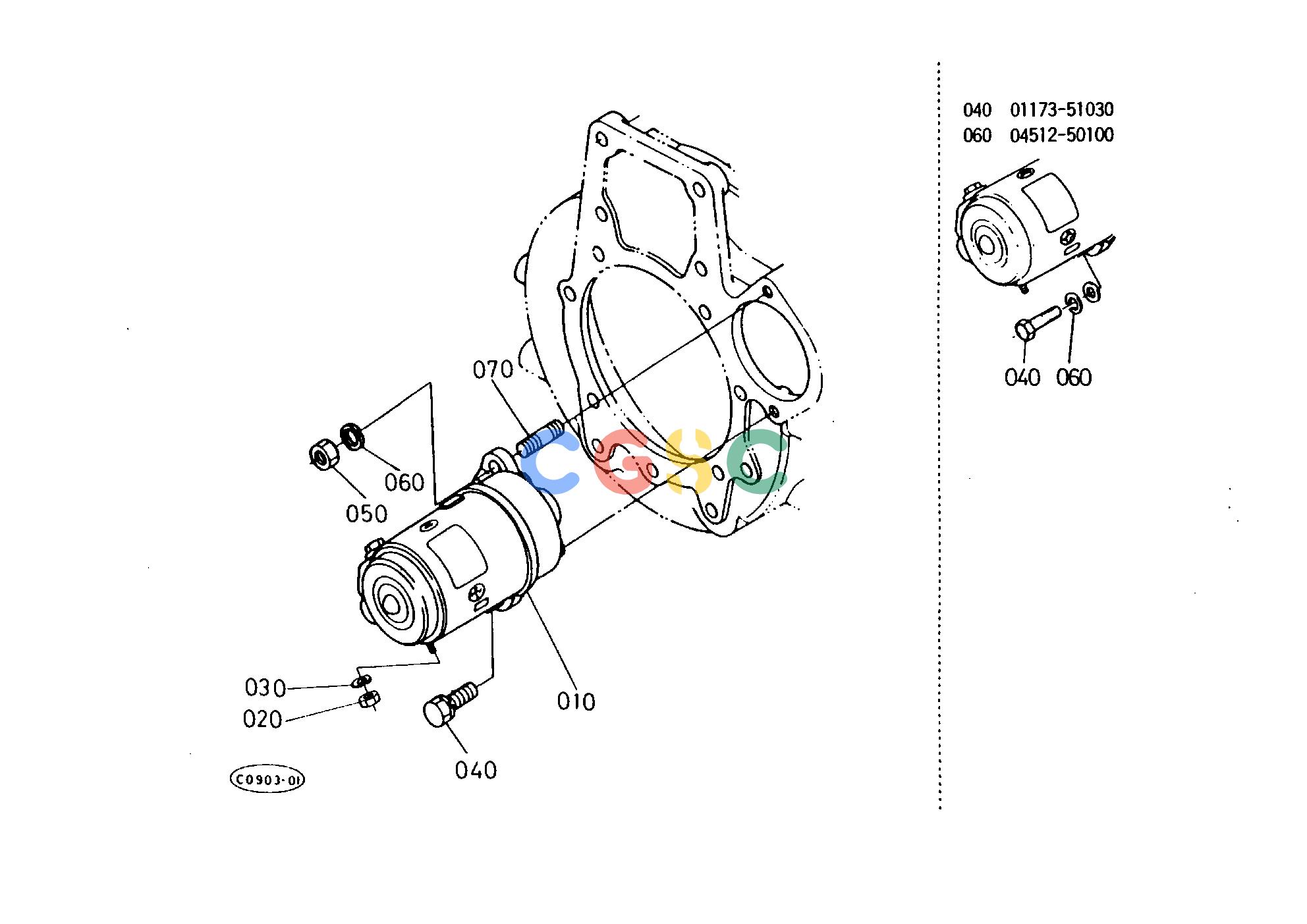

久保田零件查询T03100 STARTER ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
606 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
1540163010
|
[1] |
ASSY STARTER
|
0.0000(lbs); 0.000
|
| 010. |
1552163010
|
[1] |
ASSY STARTER
|
0.0000(lbs); 0.000
|
| 010. |
1551163010
|
[1] |
ASSY STARTER
|
0.0000(lbs); 0.000
|
| 010. |
1546163010
|
[1] |
ASSY STARTER
|
8.3600(lbs); 3.800
|
| 020. |
0211450080
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 030. |
0451250080
|
[1] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 040. |
0117351030
|
[1] |
BOLT
|
0.0506(lbs); 0.023
|
| 040. |
0113351030
|
[1] |
BOLT
|
0.0550(lbs); 0.025
|
| 050. |
0217650100
|
[1] |
NUT
|
0.0110(lbs); 0.005
|
| 060. |
0451250100
|
[1] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 070. |
0151751028
|
[1] |
STUD
|
0.0484(lbs); 0.022
|
