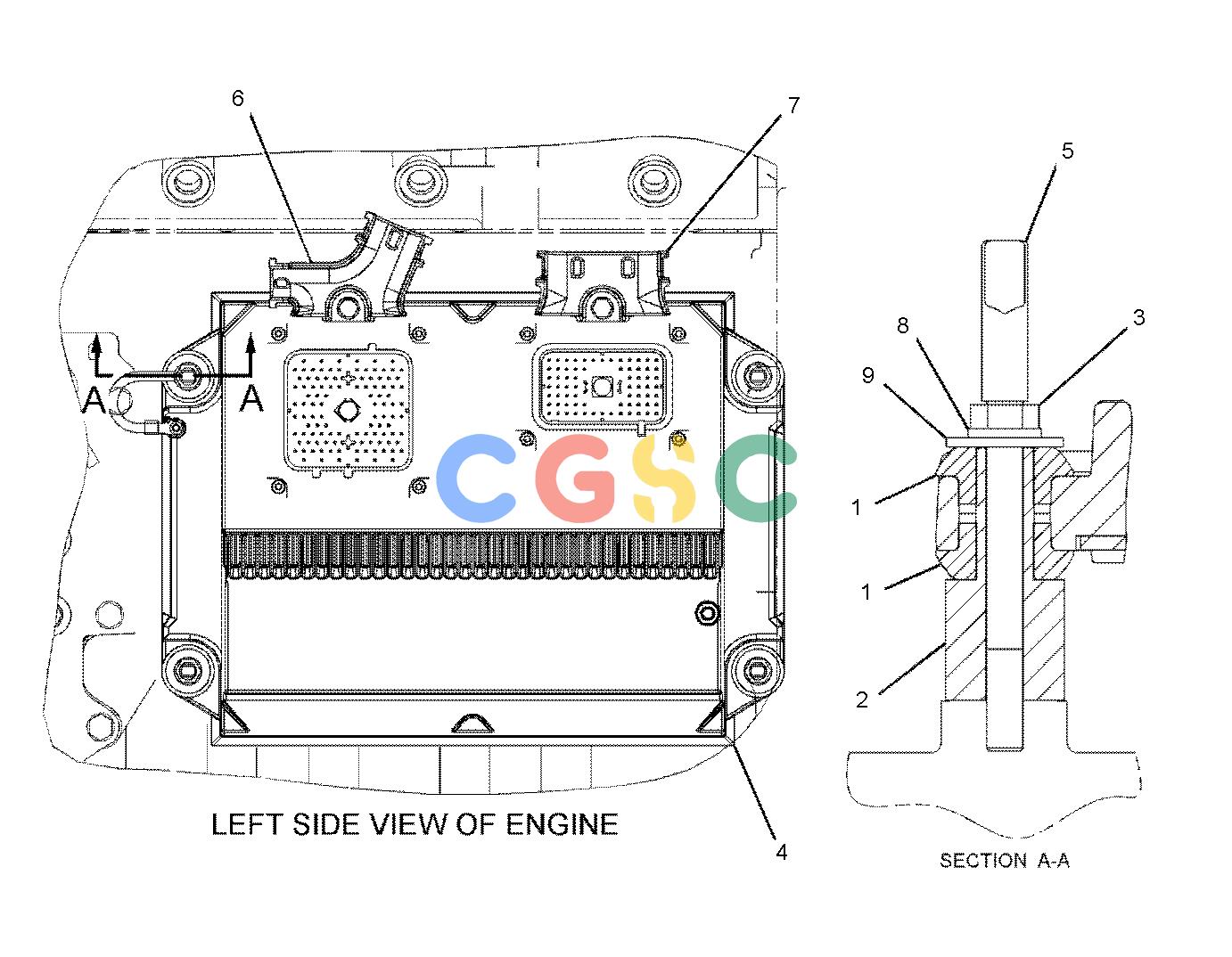

卡特零件查询（AP-1055D） 246-9345: CONTROL & MTG GP-ENGINE ELEK
广数供应链运营团队, 16 02月, 2025，浏览：
653 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 8T-9655 | [8] | MOUNT-ISOLATION | |
| 2. | 101-3128 | [4] | SPACER-SPECIAL(12.7X26X28.7-MM THK) | |
| 3. | 143-9392M | [4] | STUD(M8X1.25-THD) | |
| 4. | 226-7473Y | [1] | CONTROL GP-ENGINE ELECTRONIC | |
| 5. | 206-6875 | [4] | CAP-TUBE | |
| 6. | 244-3168 | [1] | BRACKET AS(HARNESS) | |
| | 232-1693M | [1] | BOLT-FLANGE HEAD(M6X1X35-MM) | |
| 7. | 233-0891 | [1] | BRACKET AS(HARNESS) | |
| | 232-1693M | [1] | BOLT-FLANGE HEAD(M6X1X35-MM) | |
| 8. | 9M-1974 | [4] | WASHER-HARD(8.8X16X2-MM THK) | |
| 9. | 9N-0869 | [4] | WASHER-HARD(8.8X25.5X2-MM THK) | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
