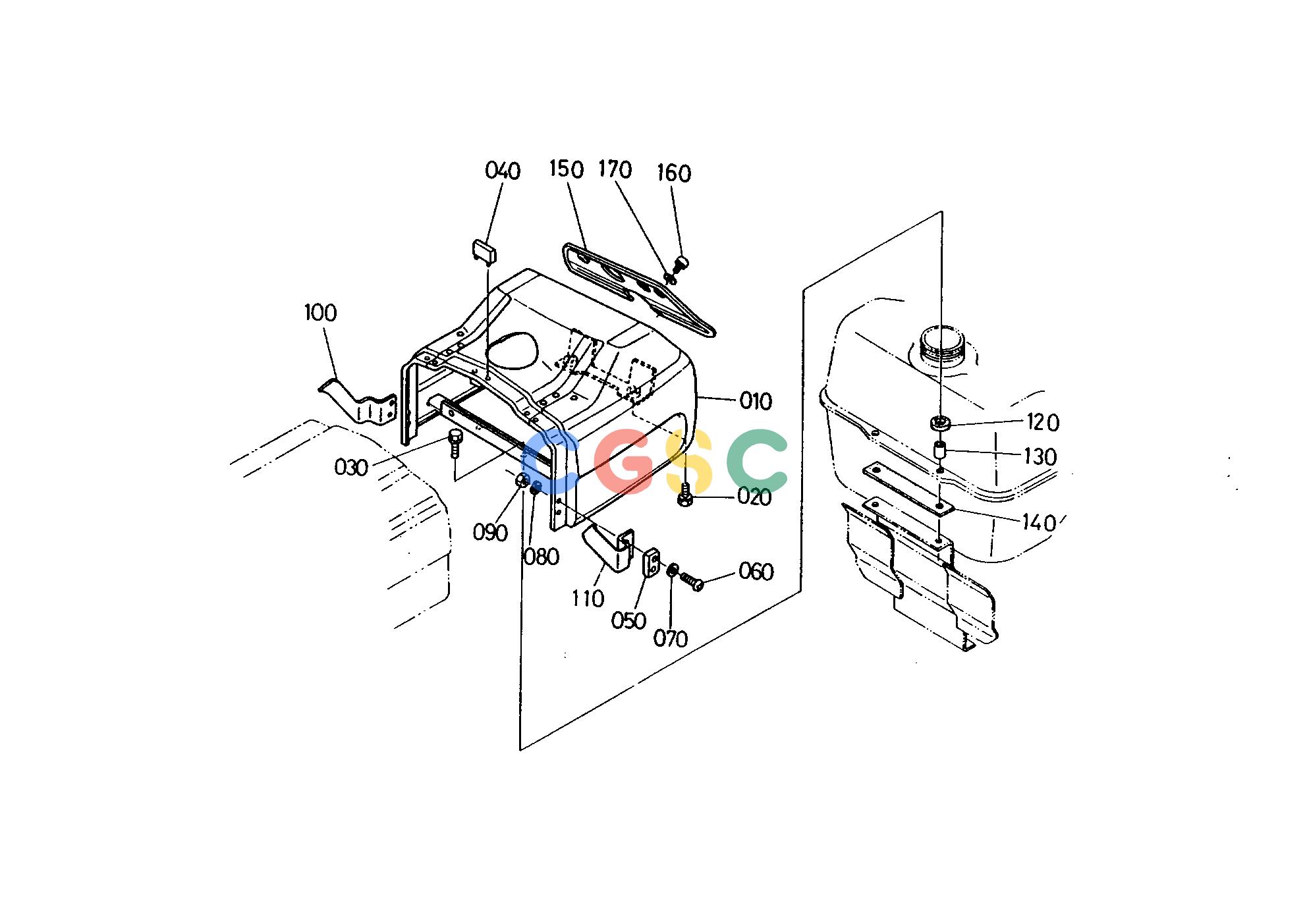

久保田零件查询T03400 PANEL 1 ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
799 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3538131110
|
[1] |
PANEL
|
17.6000(lbs); 8.000
|
| 020. |
0112350816
|
[2] |
BOLT
|
0.0242(lbs); 0.011
|
| 030. |
0112350830
|
[2] |
BOLT
|
0.0330(lbs); 0.015
|
| 040. |
3325183490
|
[3] |
CUSHION
|
0.0176(lbs); 0.008
|
| 050. |
3715018180
|
[2] |
CUSHION
|
0.0330(lbs); 0.015
|
| 060. |
0305450514
|
[4] |
SCREW PAN HEAD
|
0.0088(lbs); 0.004
|
| 070. |
0401350050
|
[4] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 080. |
0451250050
|
[4] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 090. |
0205450050
|
[4] |
NUT
|
0.0044(lbs); 0.002
|
| 100. |
3715031180
|
[1] |
GUIDE RH
|
0.1474(lbs); 0.067
|
| 110. |
3715031190
|
[1] |
GUIDE LH
|
0.1430(lbs); 0.065
|
| 120. |
3730035120
|
[2] |
CUSHION
|
0.0066(lbs); 0.003
|
| 130. |
3730035150
|
[2] |
SPACER
|
0.0110(lbs); 0.005
|
| 140. |
3730035160
|
[1] |
CUSHION
|
0.0550(lbs); 0.025
|
| 150. |
3730031120
|
[1] |
DASHBOARD
|
1.1572(lbs); 0.526
|
| 160. |
3415031140
|
[4] |
SCREW PAN HEAD
|
0.0198(lbs); 0.009
|
| 170. |
0401350080
|
[4] |
WASHER PLAIN
|
0.0066(lbs); 0.003
|
