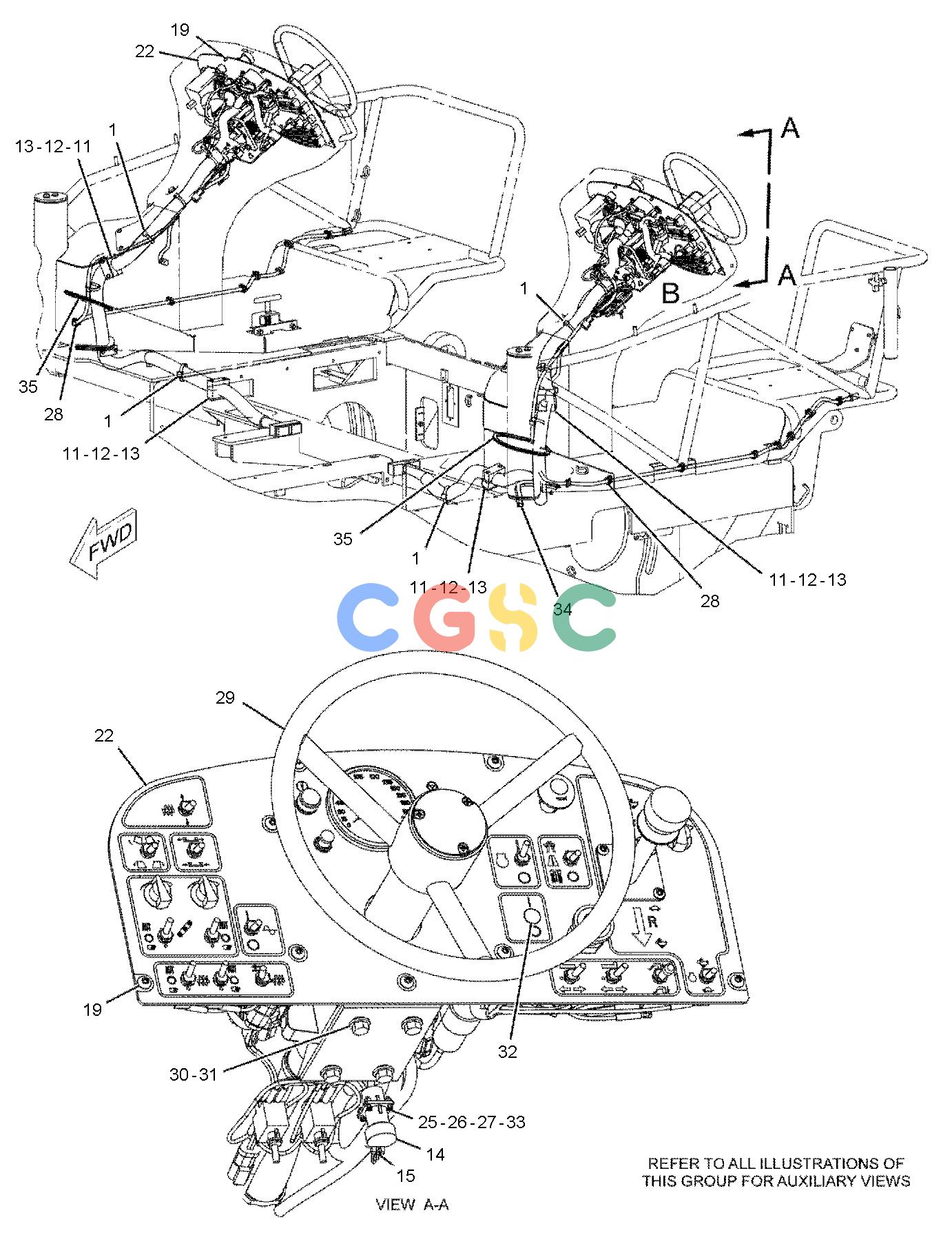

卡特零件查询（AP-1055D） 228-9127: CONSOLE GP-OPERATOR
广数供应链运营团队, 16 02月, 2025，浏览：
306 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7K-1181B | [16] | STRAP-CABLE | |
| 2. | 5P-4116 | [20] | WASHER-HARD(8.8X20.5X2-MM THK) | |
| 3. | 132-5789 | [6] | CLIP(LADDER) | |
| 4. | 116-0118 | [14] | CLIP | |
| 5. | 8D-9947 | [4] | CLIP | |
| 6. | 7X-7729 | [4] | WASHER(11X25X3-MM THK) | |
| 7. | 8T-4189M | [10] | BOLT(M8X1.25X20-MM) | |
| 8. | 5C-7261M | [10] | NUT(M8X1.25-THD) | |
| 9. | 8T-4196M | [2] | BOLT(M10X1.5X35-MM) | |
| 10. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 11. | 7R-7941 | [12] | CLAMP | |
| 12. | 7R-7951 | [6] | PLATE | |
| 13. | 7X-2535M | [12] | BOLT(M6X1X60-MM) | |
| 14. | 100-5805 | [2] | CAP-RECEPTACLE(3-PIN) | |
| 15. | 1G-9090 | [2] | S-HOOK | |
| 17. | 122-9303Y | [2] | BUFFER GP-SENSOR(500-HZ PWM)(PROPEL SPEED) | |
| 18. | 122-9303Y | [2] | BUFFER GP-SENSOR(500-HZ PWM)(PROPEL FORWARD, REVERSE) | |
| 19. | 9X-2042M | [18] | SCREW-TRUSS HEAD(M6X1X12-MM) | |
| 20. | 191-2846Y | [1] | WIRING GP-CONSOLE(AUXILIARY STEERING) | |
| 21. | 7K-1181 | [4] | STRAP-CABLE | |
| 22. | 228-9128Y | [2] | PANEL GP-INSTRUMENT | |
| 23. | 155-2255 | [1] | KIT-CONNECTING PLUG(12-PIN) | |
| | | | (INCLUDES PLUG KIT, WEDGE & INTERFACE SEAL) |
| 24. | 8T-8737 | [12] | PLUG-SEAL | |
| 25. | 6V-2480 | [8] | SCREW(4-40X0.5-IN) | |
| 26. | 5P-8392 | [8] | WASHER(3.1X6.3X0.8-MM THK) | |
| 27. | 9N-7446 | [8] | LOCKNUT(4-40-THD) | |
| 28. | 3S-2093B | [32] | STRAP-CABLE | |
| 29. | 198-9009Y | [2] | STEERING COLUMN GP | |
| 30. | 8T-4121 | [8] | WASHER-HARD(11X21X2.5-MM THK) | |
| 31. | 5S-7379 | [8] | BOLT(3/8-16X0.875-IN) | |
| 32. | 3V-4694 | [2] | PLUG-BUTTON | |
| 33. | 1G-9089BJ | | CHAIN | |
| 34. | 8T-3426BD | | CHANNEL-TRIM | |
| 35. | 7X-7877BE | | STRIP-EDGE | |
| | | | |
| | 125-7875BEF | | TUBE-HEAT SHRINK(7.44-MM DIA) | |
| | B | | USE AS REQUIRED |
| | D | | ORDER BY THE METER |
| | E | | ORDER BY THE CENTIMETER |
| | F | | NOT SHOWN |
| | J | | ODER BY THE DECIMETER |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
