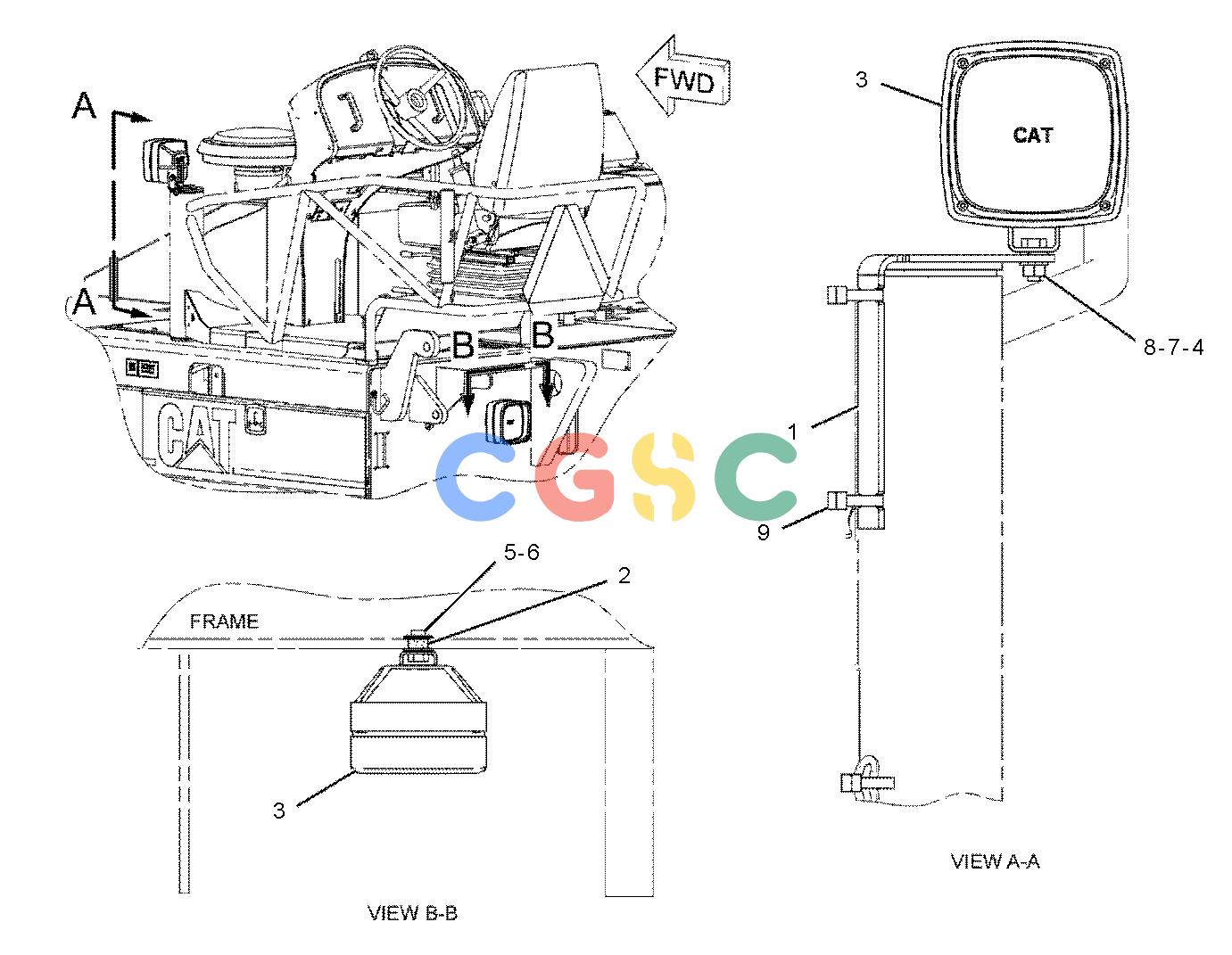

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 241-8169 | [2] | BRACKET-LIGHT | |
| 2. | 5D-7635 | [2] | GROMMET | |
| 3. | 9X-1439Y | [4] | LAMP GP-FLOOD(24-VOLT) | |
| 4. | 8T-4121 | [4] | WASHER-HARD(11X21X2.5-MM THK) | |
| 5. | 8T-4139M | [2] | BOLT(M12X1.75X30-MM) | |
| 6. | [2] | WASHER | ||
| 7. | 8T-4136M | [2] | BOLT(M10X1.5X25-MM) | |
| 8. | 8T-4133M | [2] | NUT(M10X1.5-THD) | |
| 9. | 7K-1181 | [6] | STRAP-CABLE | |
| M | METRIC PART | |||
| Y | SEPARATE ILLUSTRATION | |||
