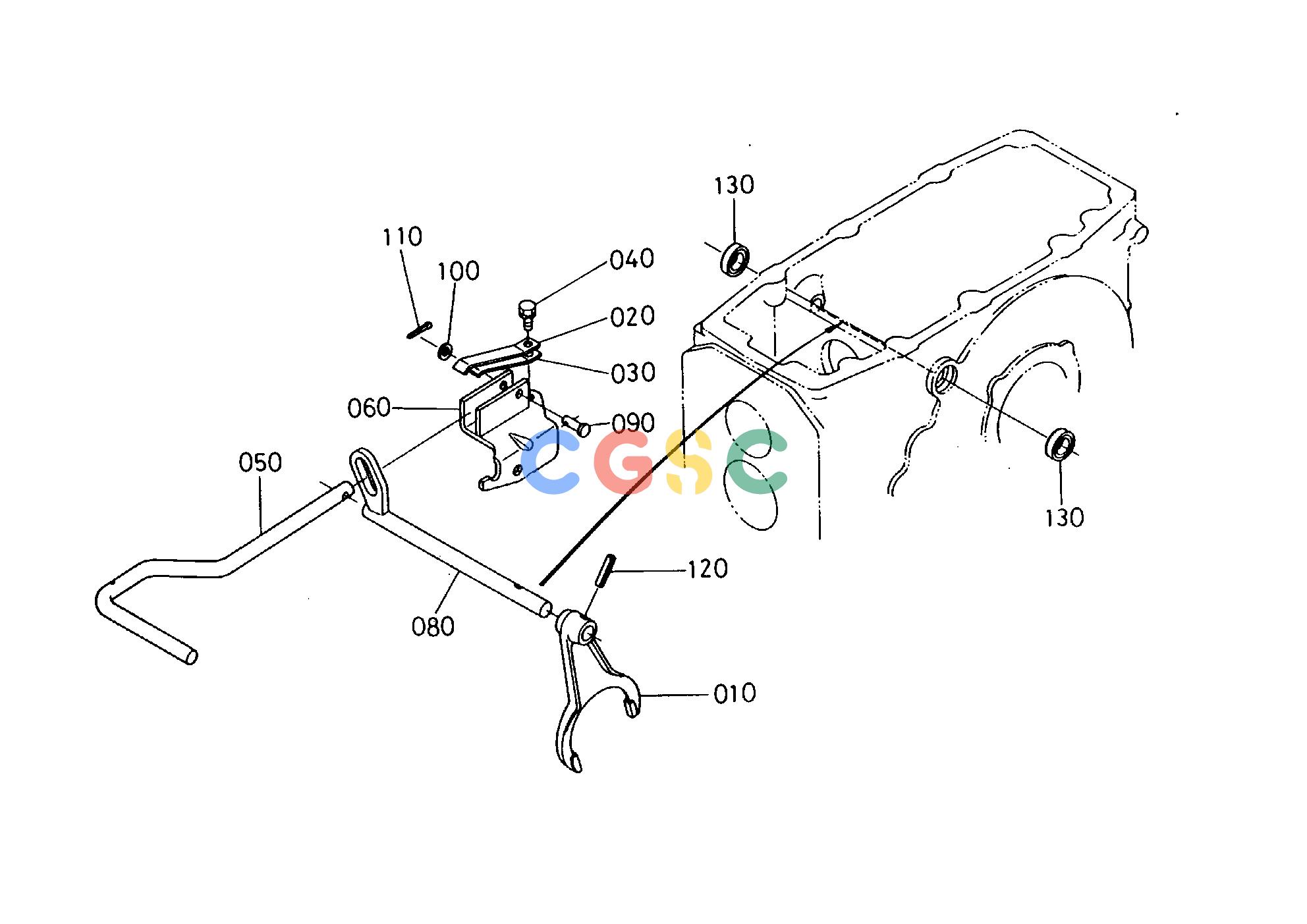

久保田零件查询T05800 DIFF.LOCK PEDAL REAR AXLE AND REAR WHEELEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
473 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3730026630
|
[1] |
FORK SHIFT
|
0.9460(lbs); 0.430
|
| 020. |
3715026643
|
[1] |
SPRING
|
0.0726(lbs); 0.033
|
| 030. |
3715026660
|
[1] |
SPRING
|
0.0550(lbs); 0.025
|
| 040. |
0112350816
|
[1] |
BOLT
|
0.0242(lbs); 0.011
|
| 050. |
3730026650
|
[1] |
PEDAL DIFF.LOCK
|
1.3970(lbs); 0.635
|
| 060. |
3730026670
|
[1] |
BRACKET
|
1.4410(lbs); 0.655
|
| 080. |
3730026680
|
[1] |
CAM DIFF.LOCK
|
0.5544(lbs); 0.252
|
| 090. |
0512250835
|
[1] |
PIN JOINT
|
0.0330(lbs); 0.015
|
| 100. |
0401250080
|
[1] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 110. |
0551150218
|
[1] |
PIN SPLIT
|
0.0022(lbs); 0.001
|
| 120. |
0541100630
|
[1] |
PIN SPRING
|
0.0088(lbs); 0.004
|
| 130. |
0950016287
|
[2] |
SEAL OIL
|
0.0220(lbs); 0.010
|
