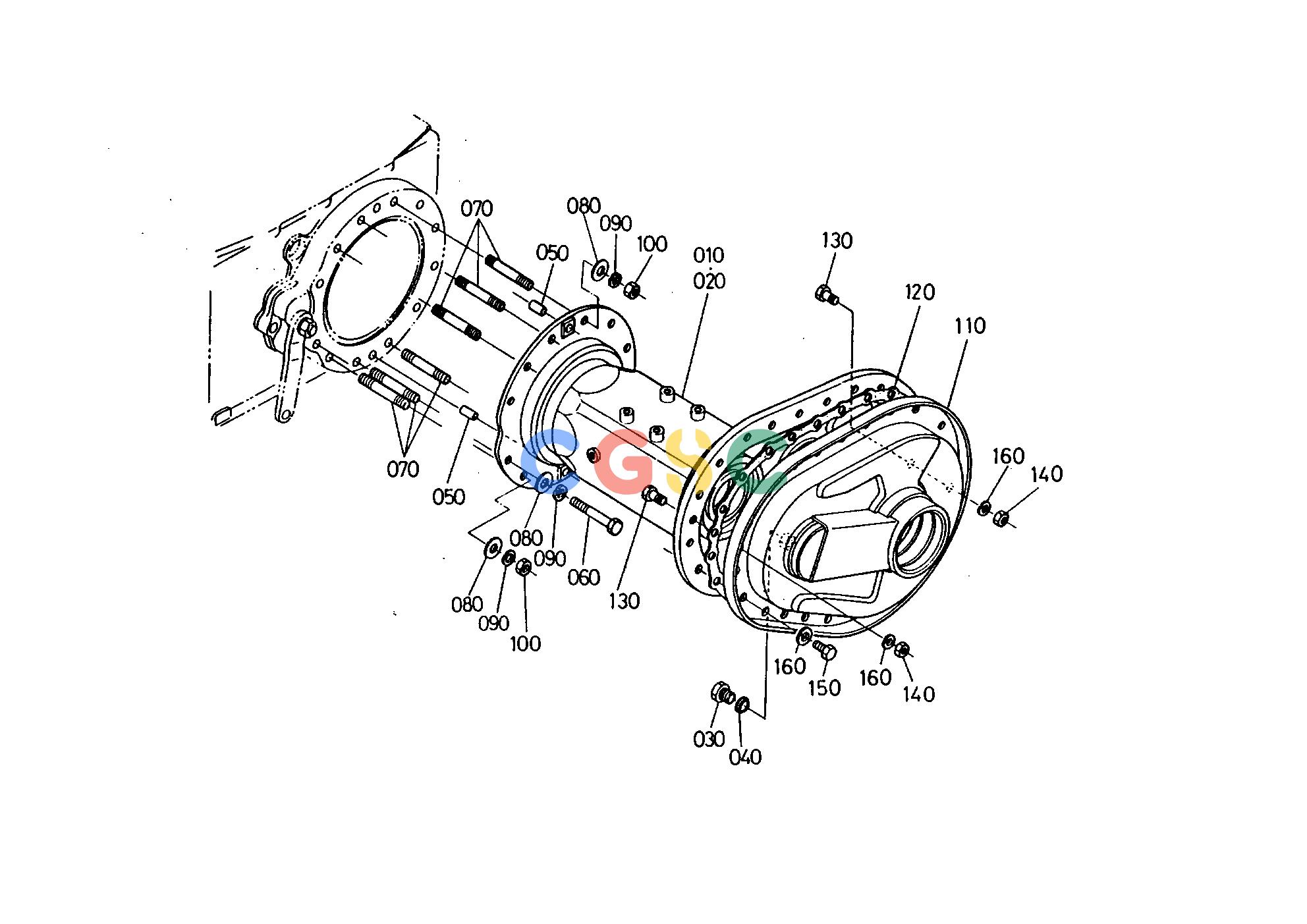

久保田零件查询T06000 AXLE CASE REAR AXLE AND REAR WHEELEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
605 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3530027310
|
[1] |
CASE AXLE RH
|
36.7400(lbs); 16.700
|
| 020. |
3530027320
|
[1] |
CASE AXLE LH
|
36.3000(lbs); 16.500
|
| 030. |
0633135016
|
[2] |
PLUG
|
0.0880(lbs); 0.040
|
| 040. |
0471701600
|
[2] |
WASHER WITH RUBBER
|
0.0066(lbs); 0.003
|
| 050. |
0501201325
|
[4] |
PIN STRAIGHT
|
0.0616(lbs); 0.028
|
| 060. |
0117351275
|
[8] |
BOLT
|
0.1562(lbs); 0.071
|
| 070. |
3730027350
|
[16] |
STUD
|
0.1540(lbs); 0.070
|
| 080. |
0401350120
|
[24] |
WASHER PLAIN
|
0.0154(lbs); 0.007
|
| 090. |
0451250120
|
[24] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 100. |
3730027360
|
[16] |
NUT
|
0.0000(lbs); 0.000
|
| 100. |
3534027360
|
[16] |
NUT
|
0.0330(lbs); 0.015
|
| 110. |
3730027330
|
[2] |
COVER AXLE CASE
|
20.2400(lbs); 9.200
|
| 120. |
3730027340
|
[2] |
GASKET
|
0.0264(lbs); 0.012
|
| 130. |
3715027390
|
[4] |
BOLT REAMER
|
0.0440(lbs); 0.020
|
| 140. |
0217650100
|
[4] |
NUT
|
0.0110(lbs); 0.005
|
| 150. |
0117351022
|
[44] |
BOLT
|
0.0418(lbs); 0.019
|
| 160. |
0451250100
|
[48] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
