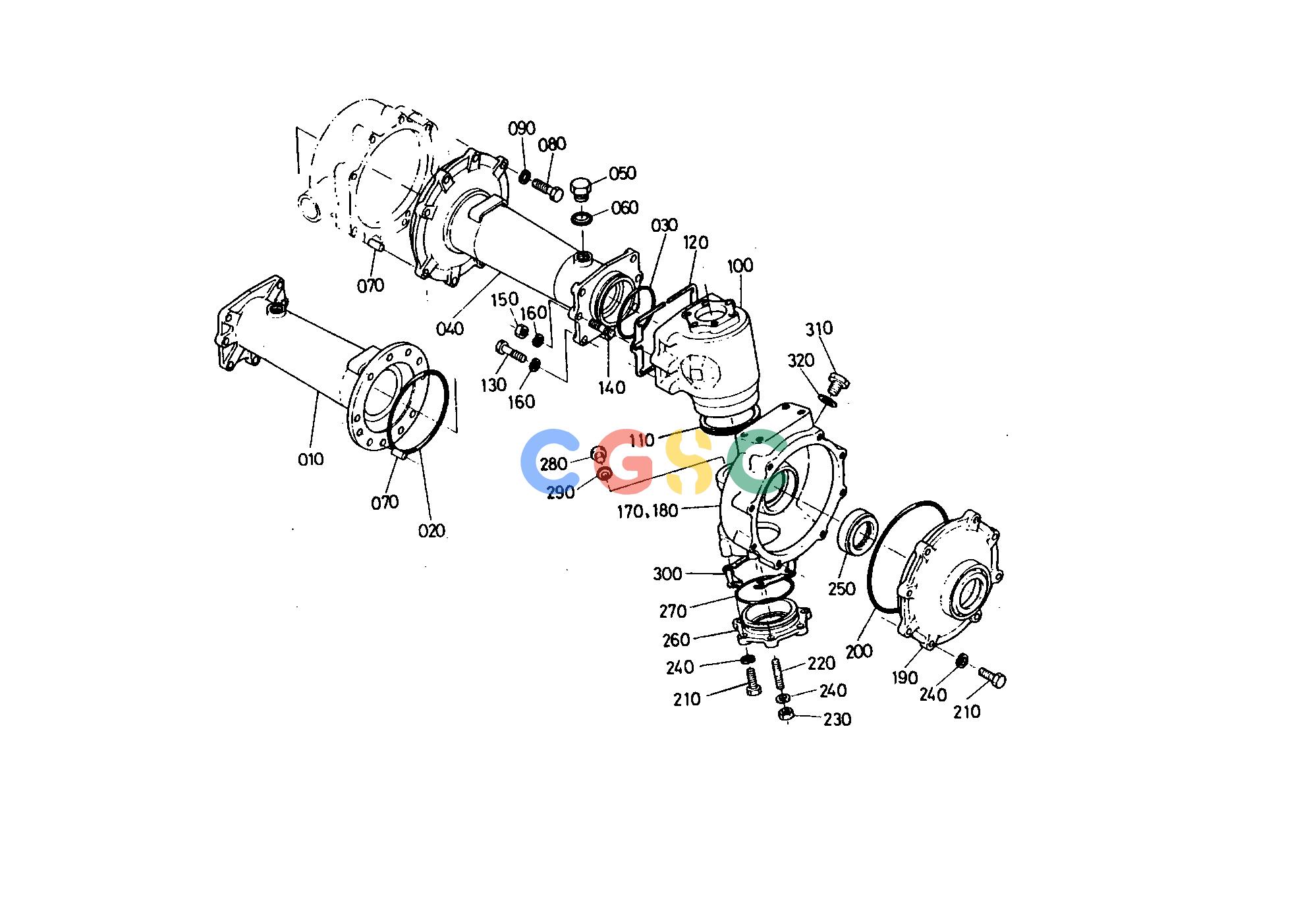

久保田零件查询T07300 FRONT AXLE SUPPORT FRONT AXLE AND FRONT WHEELEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
385 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3780043410
|
[1] |
SUPPORT RH
|
24.9700(lbs); 11.350
|
| 020. |
0481151450
|
[2] |
O RING
|
0.0110(lbs); 0.005
|
| 030. |
0481150900
|
[2] |
O RING
|
0.0066(lbs); 0.003
|
| 040. |
3780043430
|
[1] |
SUPPORT LH
|
26.6200(lbs); 12.100
|
| 050. |
0633135020
|
[2] |
PLUG
|
0.1496(lbs); 0.068
|
| 060. |
0471702000
|
[2] |
WASHER WITH RUBBER
|
0.0088(lbs); 0.004
|
| 070. |
0501201020
|
[2] |
PIN STRAIGHT
|
0.0286(lbs); 0.013
|
| 080. |
3780043400
|
[19] |
BOLT
|
0.0946(lbs); 0.043
|
| 090. |
0451250120
|
[19] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 100. |
3780043440
|
[2] |
CASE BEVEL GEAR
|
11.0000(lbs); 5.000
|
| 110. |
3780043470
|
[2] |
SEAL DUST
|
0.0110(lbs); 0.005
|
| 120. |
3780043450
|
[8] |
SHIM
|
0.0088(lbs); 0.004
|
| 120. |
3780043560
|
[8] |
SHIM
|
0.0110(lbs); 0.005
|
| 130. |
3780043400
|
[10] |
BOLT
|
0.0946(lbs); 0.043
|
| 140. |
3780043500
|
[4] |
STUD
|
0.0990(lbs); 0.045
|
| 150. |
3780043600
|
[4] |
NUT
|
0.0550(lbs); 0.025
|
| 160. |
0451250120
|
[14] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 170. |
3780043510
|
[1] |
CASE AXLE LH
|
19.8000(lbs); 9.000
|
| 180. |
3780043540
|
[1] |
CASE AXLE RH
|
19.5800(lbs); 8.900
|
| 190. |
3780043520
|
[2] |
FLANGE AXLE
|
8.5800(lbs); 3.900
|
| 200. |
3780043550
|
[2] |
O RING
|
0.0220(lbs); 0.010
|
| 210. |
0115350825
|
[24] |
BOLT
|
0.0264(lbs); 0.012
|
| 220. |
0151850822
|
[4] |
STUD
|
0.0264(lbs); 0.012
|
| 230. |
0215650080
|
[4] |
NUT
|
0.0088(lbs); 0.004
|
| 240. |
0451250080
|
[28] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 250. |
3780043530
|
[2] |
SEAL OIL
|
0.2156(lbs); 0.098
|
| 260. |
3780043580
|
[2] |
CASE BEARING
|
1.6940(lbs); 0.770
|
| 270. |
0481150900
|
[2] |
O RING
|
0.0066(lbs); 0.003
|
| 280. |
0633135012
|
[2] |
PLUG
|
0.0528(lbs); 0.024
|
| 290. |
0471701200
|
[2] |
WASHER WITH RUBBER
|
0.0044(lbs); 0.002
|
| 300. |
3765043590
|
[8] |
SHIM
|
0.0044(lbs); 0.002
|
| 300. |
3765043570
|
[8] |
SHIM
|
0.0088(lbs); 0.004
|
| 310. |
0633135020
|
[2] |
PLUG
|
0.1496(lbs); 0.068
|
| 320. |
0471702000
|
[2] |
WASHER WITH RUBBER
|
0.0088(lbs); 0.004
|
