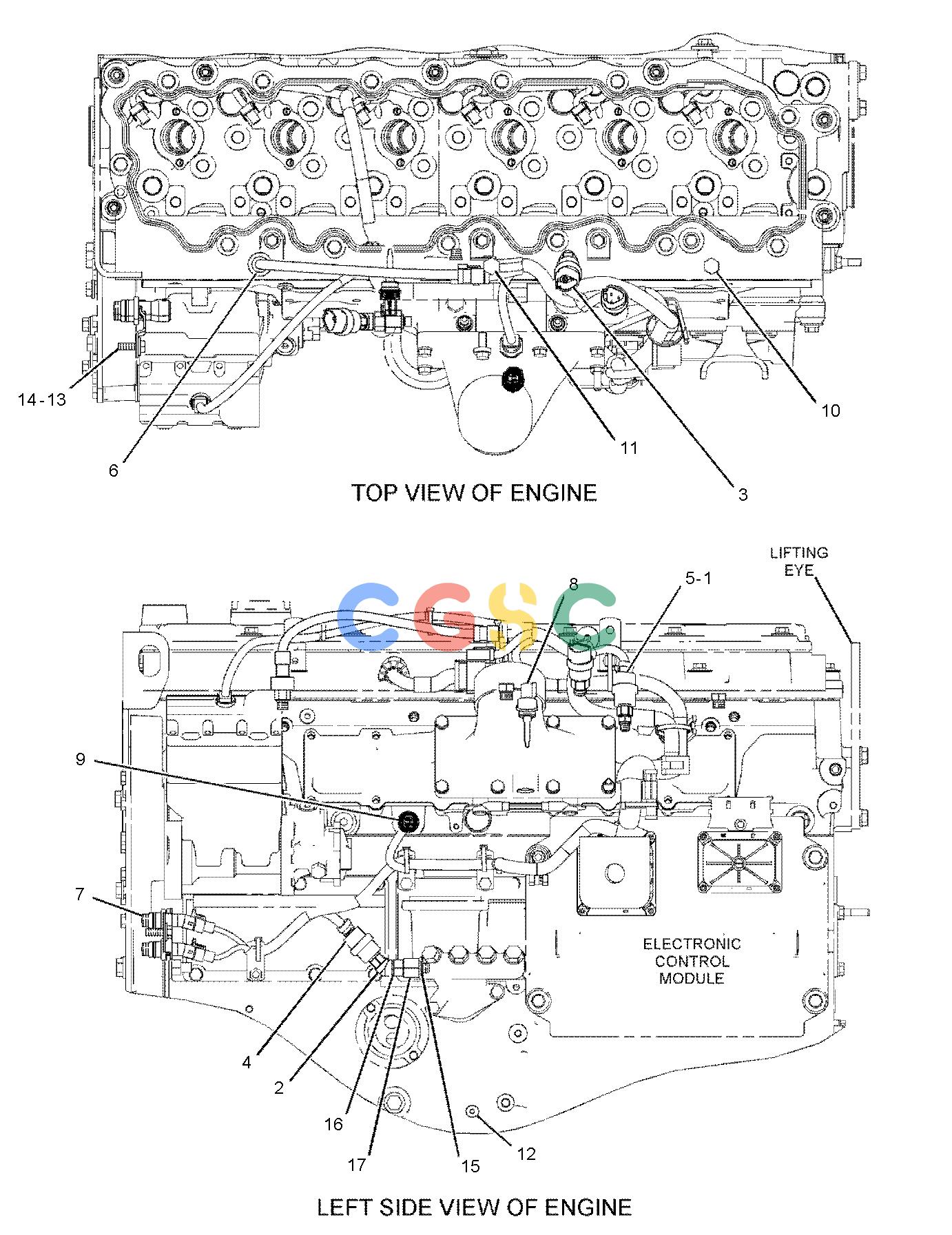

卡特零件查询（AP-1055D） 231-1977: SENSOR GP-ENGINE
广数供应链运营团队, 16 02月, 2025，浏览：
635 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9X-0262 | [1] | ADAPTER | |
| 2. | 9X-8403 | [1] | ELBOW | |
| 3. | 197-8391Y | [1] | SENSOR GP-TEMPERATURE(AIR INLET MANIFOLD) | |
| 4. | 197-8392Y | [1] | SENSOR GP-TEMPERATURE(WATER, COOLANT) | |
| 5. | 197-8393Y | [1] | SENSOR GP-PRESSURE(ATMOSPHERIC) | |
| 6. | 197-8394Y | [1] | SENSOR GP-PRESSURE(ENGINE OIL) | |
| 7. | 210-1747Y | [1] | SENSOR GP-PRESSURE(BOOST) | |
| 8. | 236-6220Y | [1] | SENSOR GP-PRESSURE(INJECTION ACTUATION) | |
| 9. | 236-6221Y | [1] | SENSOR GP-SPEED(ENGINE TIMING) | |
| 10. | 169-5861 | [1] | PLUG AS | |
| | 3K-8460 | [1] | PLUG(1/2-20-THD) | |
| | 5P-7814 | [1] | SEAL-O-RING | |
| 11. | 183-3406 | [1] | PLUG AS | |
| | 6V-5049 | [1] | SEAL-O-RING | |
| | 9S-4191 | [1] | PLUG(9/16-18-THD) | |
| 12. | 183-7263 | [1] | PLUG AS | |
| | 3J-7354 | [1] | SEAL-O-RING | |
| | 9S-8002 | [1] | PLUG(7/16-20-THD) | |
| 13. | 3E-4352 | [1] | WASHER-HARD(8.8X20.5X2.5-MM THK) | |
| 14. | 6V-3940M | [1] | BOLT(M8X1.25X25-MM) | |
| 15. | 6V-5048 | [2] | SEAL-O-RING | |
| 16. | 6V-5049 | [1] | SEAL-O-RING | |
| 17. | 8T-2353 | [1] | ADAPTER | |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
