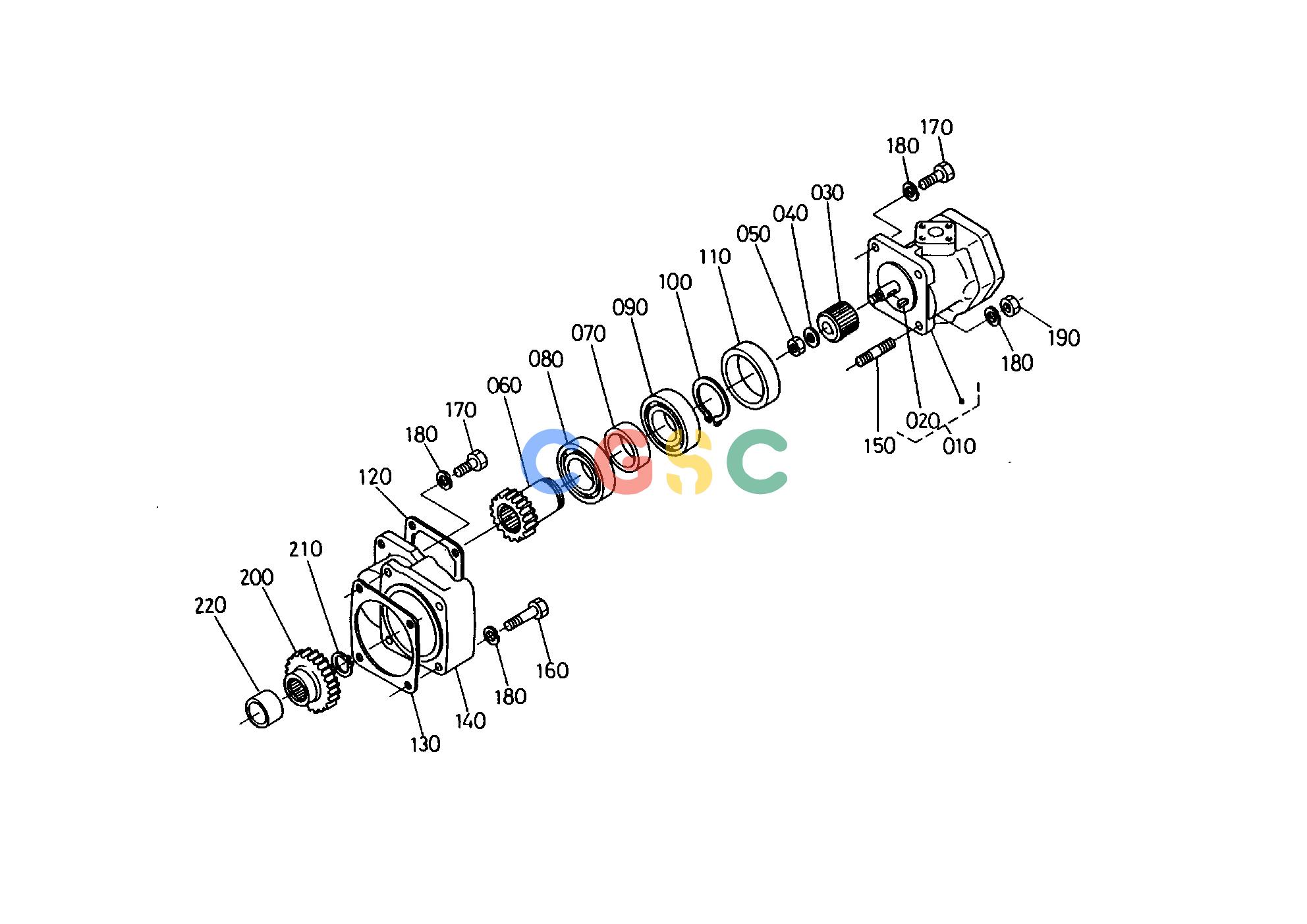

久保田零件查询T08100 HYDRAULIC PUMP HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
244 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3715036100
|
[1] |
ASSY PUMP HYDRAULIC
|
0.0000(lbs); 0.000
|
| 010. |
3511076100
|
[1] |
ASSY PUMP HYDRAULIC
|
4.1800(lbs); 1.900
|
| 020. |
3227036210
|
[1] |
KEY WOODRUFF
|
0.0044(lbs); 0.002
|
| 020. |
0581100313
|
[1] |
KEY WOODRUFF
|
0.0022(lbs); 0.001
|
| 030. |
3730037760
|
[1] |
BOSS SPLINE
|
0.1100(lbs); 0.050
|
| 040. |
3730037890
|
[1] |
WASHER
|
0.0044(lbs); 0.002
|
| 050. |
0215650080
|
[1] |
NUT
|
0.0088(lbs); 0.004
|
| 060. |
3730037830
|
[1] |
GEAR
|
0.3850(lbs); 0.175
|
| 070. |
3730037770
|
[1] |
RACE INNER
|
0.1540(lbs); 0.070
|
| 080. |
3730037780
|
[1] |
BEARING NEEDLE
|
0.2420(lbs); 0.110
|
| 090. |
0810106907
|
[1] |
BEARING BALL
|
0.1606(lbs); 0.073
|
| 100. |
0461200350
|
[1] |
CIR-CLIP EXTERNAL
|
0.0220(lbs); 0.010
|
| 110. |
3730037790
|
[1] |
COLLAR
|
0.0550(lbs); 0.025
|
| 120. |
3415037870
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 130. |
3415037860
|
[1] |
GASKET
|
0.0000(lbs); 0.000
|
| 140. |
3730037850
|
[1] |
HOLDER PUMP
|
3.0030(lbs); 1.365
|
| 150. |
0151350820
|
[2] |
STUD
|
0.0440(lbs); 0.020
|
| 160. |
0115350845
|
[2] |
BOLT
|
0.0396(lbs); 0.018
|
| 170. |
0115350822
|
[4] |
BOLT
|
0.0242(lbs); 0.011
|
| 180. |
0451250080
|
[8] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 190. |
0215650080
|
[2] |
NUT
|
0.0088(lbs); 0.004
|
| 200. |
3730037810
|
[1] |
GEAR
|
0.7150(lbs); 0.325
|
| 210. |
0461200250
|
[1] |
CIR-CLIP EXTERNAL
|
0.0044(lbs); 0.002
|
| 220. |
3415037820
|
[1] |
COLLAR
|
0.1100(lbs); 0.050
|
