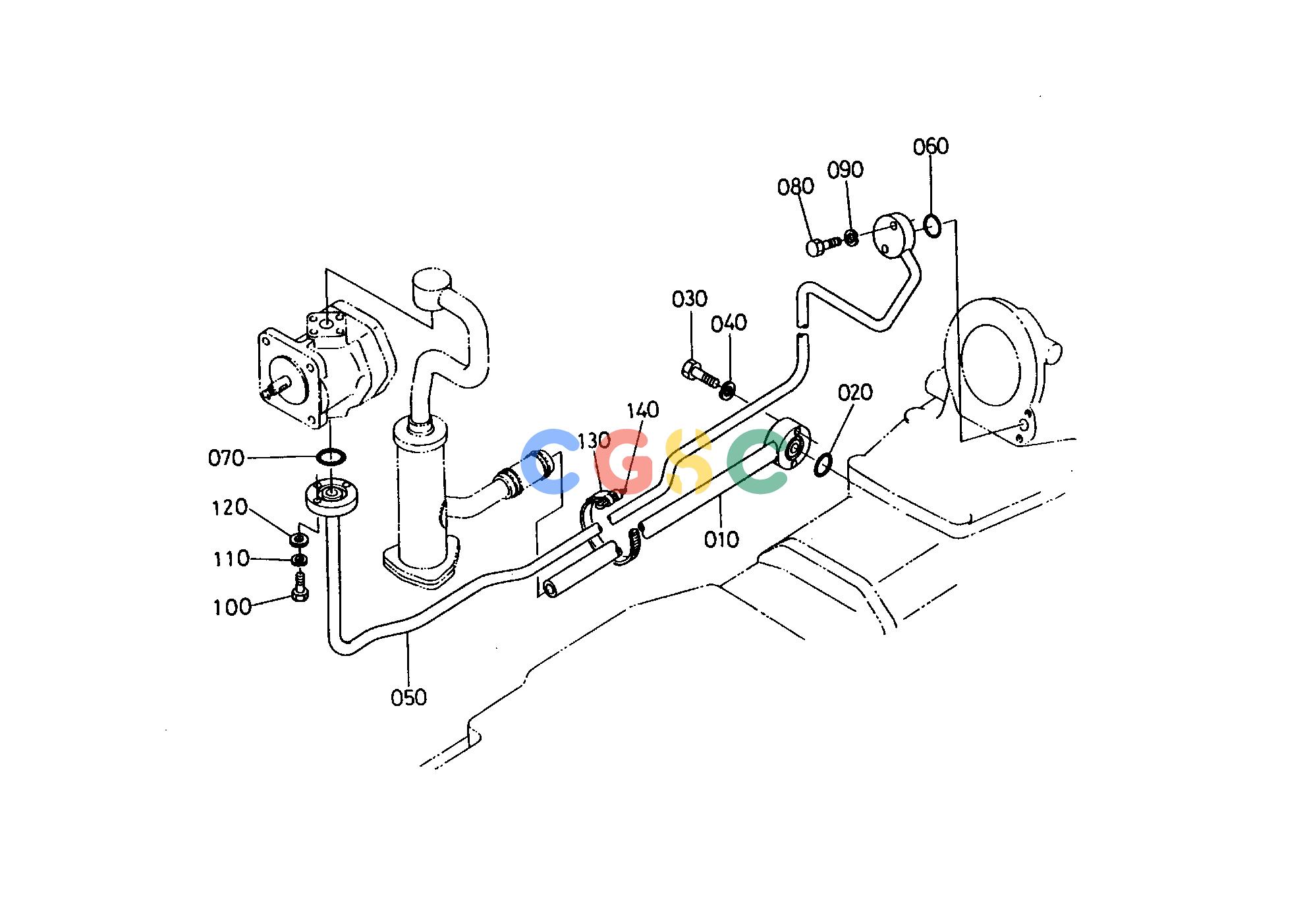

久保田零件查询T08300 HYDRAULIC OIL LINE HYDRAULIC SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
697 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3726038110
|
[1] |
PIPE INLET
|
2.9480(lbs); 1.340
|
| 020. |
0481100200
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 030. |
0115350850
|
[2] |
BOLT
|
0.0440(lbs); 0.020
|
| 040. |
0451250080
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 050. |
3726038210
|
[1] |
COMP.PIPE DELIVERY
|
2.1340(lbs); 0.970
|
| 060. |
0481000120
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 070. |
0481000200
|
[1] |
O RING
|
0.0022(lbs); 0.001
|
| 080. |
0115350830
|
[2] |
BOLT
|
0.0286(lbs); 0.013
|
| 090. |
0451250080
|
[2] |
WASHER SPRING
|
0.0044(lbs); 0.002
|
| 100. |
0105350628
|
[3] |
BOLT
|
0.0154(lbs); 0.007
|
| 110. |
0451250060
|
[3] |
WASHER SPRING
|
0.0022(lbs); 0.001
|
| 120. |
0401350060
|
[3] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 130. |
3325182760
|
[1] |
BAND PIPE
|
0.0352(lbs); 0.016
|
| 140. |
3343082760
|
[1] |
PIN BAND
|
0.0088(lbs); 0.004
|
