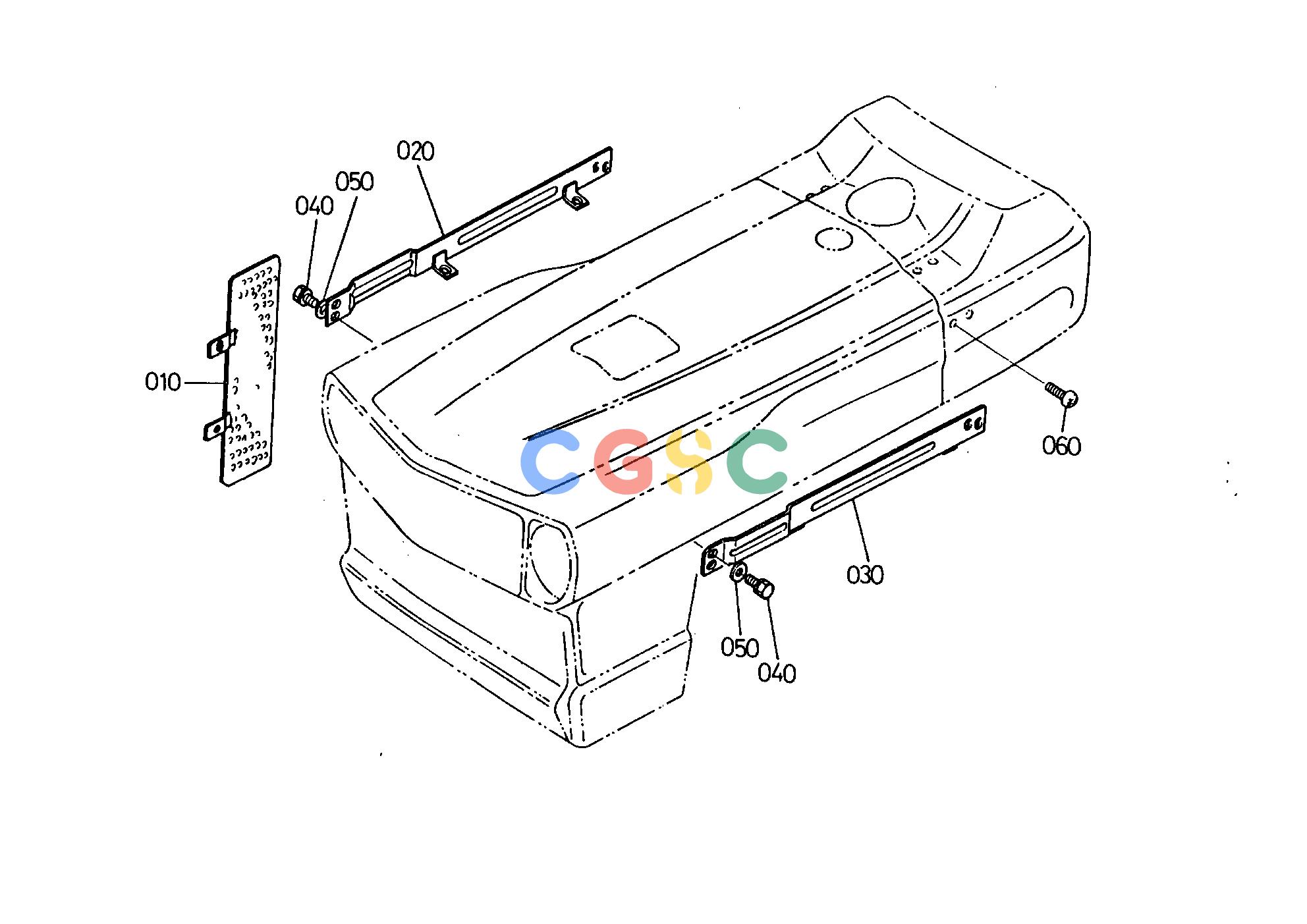

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 010. | 3530013850 | [1] | COVER FAN | 0.8360(lbs); 0.380 |
| 020. | 3726013550 | [1] | FRAME UPPER | 1.5400(lbs); 0.700 |
| 030. | 3726013560 | [1] | FRAME UPPER | 1.7600(lbs); 0.800 |
| 040. | 0112350818 | [8] | BOLT | 0.0264(lbs); 0.012 |
| 050. | 0401350080 | [8] | WASHER PLAIN | 0.0066(lbs); 0.003 |
| 060. | 0300450812 | [8] | SCREW WITH WASHER | 0.0176(lbs); 0.008 |
