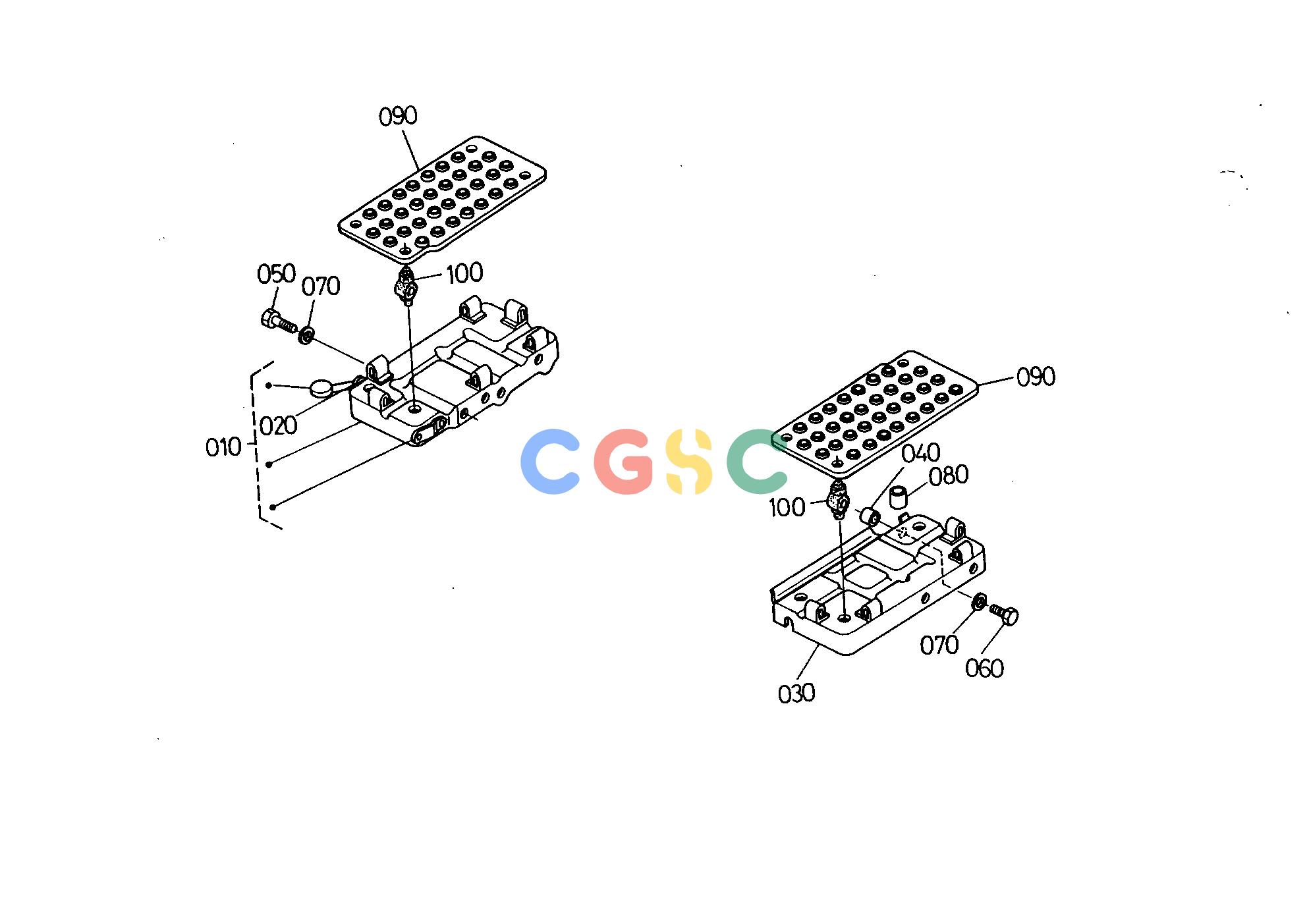

久保田零件查询T10400 STEP HOOD(BONNET) AND CHASSISEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
841 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3730029910
|
[1] |
COMP.STEP RH
|
5.2800(lbs); 2.400
|
| 010. |
3530029910
|
[1] |
COMP.STEP RH
|
0.0000(lbs); 0.000
|
| 020. |
3415017530
|
[1] |
SPRING
|
0.0110(lbs); 0.005
|
| 030. |
3730029920
|
[1] |
STEP LH
|
5.5000(lbs); 2.500
|
| 030. |
3530029920
|
[1] |
COMP.STEP LH
|
0.0000(lbs); 0.000
|
| 030. |
3530629920
|
[1] |
STEP LH
|
5.5000(lbs); 2.500
|
| 040. |
6225253220
|
[1] |
COLLAR
|
0.0176(lbs); 0.008
|
| 050. |
0117351016
|
[7] |
BOLT
|
0.0264(lbs); 0.012
|
| 060. |
0117351035
|
[1] |
BOLT
|
0.0550(lbs); 0.025
|
| 070. |
0451250100
|
[8] |
WASHER SPRING
|
0.0066(lbs); 0.003
|
| 080. |
3415029130
|
[1] |
TUBE VINYL
|
0.0022(lbs); 0.001
|
| 090. |
3730029930
|
[2] |
SEAT STEP
|
2.5300(lbs); 1.150
|
| 100. |
3730029940
|
[8] |
CUSHION
|
0.0286(lbs); 0.013
|
