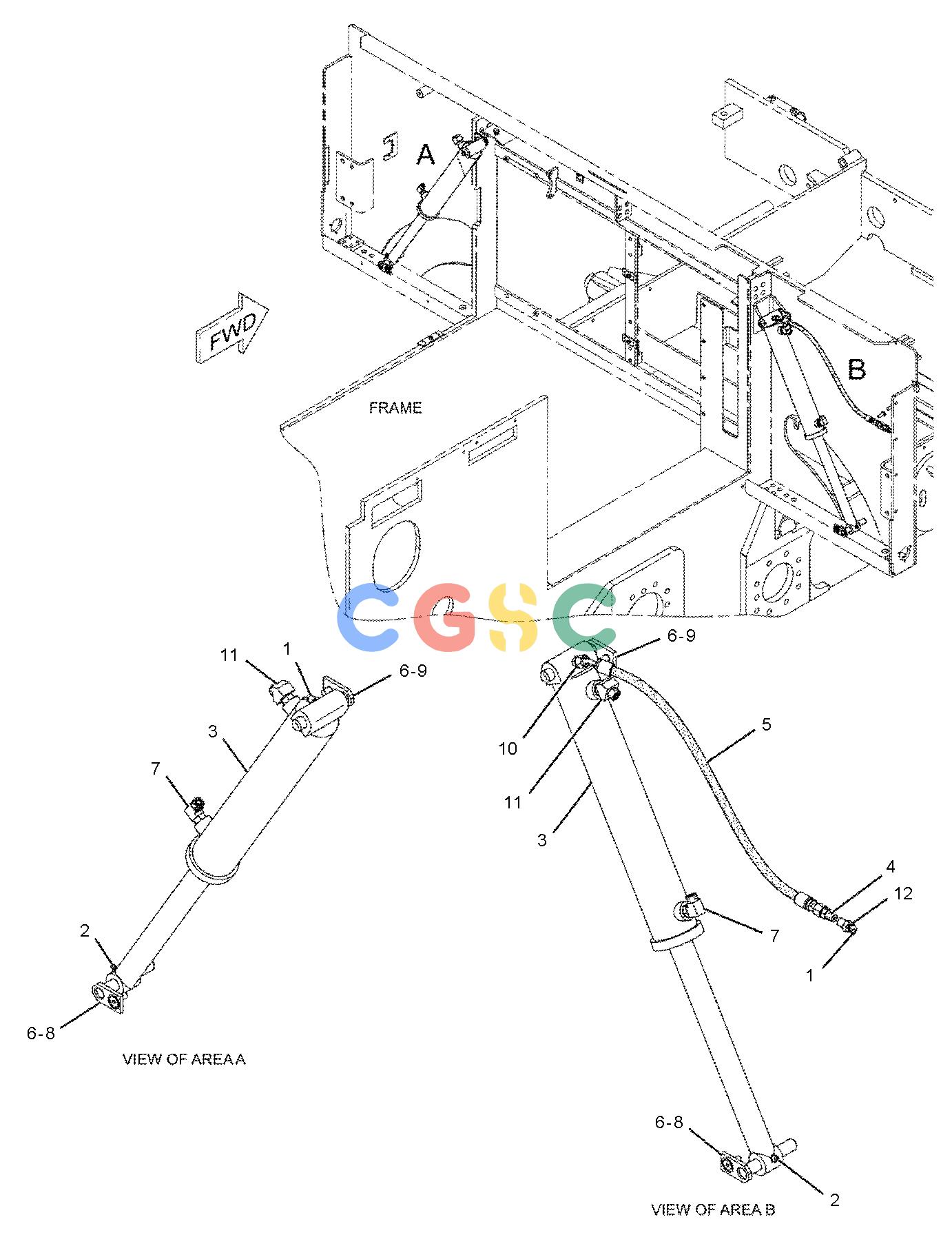

卡特零件查询（AP-1055D） 230-9608: CYLINDER & MTG GP-HOPPER
广数供应链运营团队, 16 02月, 2025，浏览：
913 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 3B-8485 | [2] | ELBOW | |
| 2. | 3B-8489 | [2] | FITTING-GREASE(1/8-27 PTF) | |
| 3. | 135-0220Y | [2] | CYLINDER GP-HYDRAULIC(HOPPER) | |
| 4. | 148-8337 | [1] | CONNECTOR AS | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 8C-6866 | [1] | CONNECTOR | |
| 5. | 155-8154I | [1] | HOSE AS | |
| 6. | 195-3190 | [4] | PIN AS | |
| 7. | 205-7200 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 108-2144 | [1] | ELBOW | |
| 8. | 030-7571 | [2] | BOLT(3/8-16X1-IN) | |
| 9. | 127-2909M | [2] | SCREW-FLAT HEAD(M10X1.5X20-MM) | |
| 10. | 148-8320 | [1] | CONNECTOR AS | |
| | 4J-5477 | [1] | SEAL-O-RING | |
| | 8C-6865 | [1] | CONNECTOR | |
| 11. | 148-8353 | [2] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3J-1907 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-9001 | [1] | ELBOW | |
| 12. | 4M-5317 | [1] | BUSHING-REDUCER | |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
