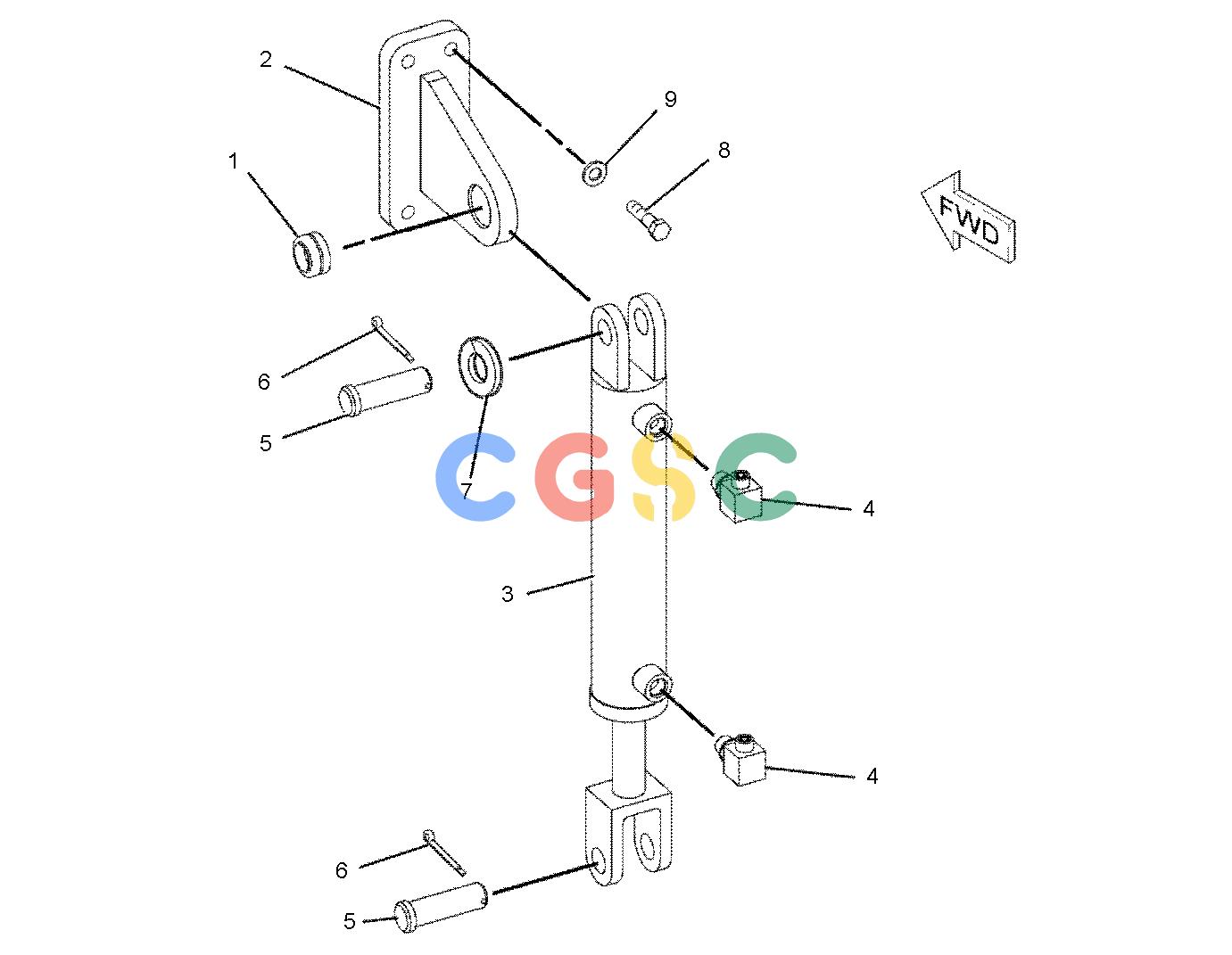

卡特零件查询（AP-1055D） 195-2881: CYLINDER & MTG GP-TOW POINT
广数供应链运营团队, 16 02月, 2025，浏览：
733 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 005-8639 | [2] | BEARING-ALIGNING | |
| 2. | 255-9112 | [2] | SUPPORT AS | |
| 3. | 195-2884Y | [2] | CYLINDER GP-HYDRAULIC(TOW POINT) | |
| 4. | 148-8374 | [4] | ELBOW AS | |
| | | | (EACH INCLUDES) |
| | 3K-0360 | [1] | SEAL-O-RING | |
| | 6V-8397 | [1] | SEAL-O-RING | |
| | 6V-8723 | [1] | ELBOW | |
| 5. | 173-3651 | [4] | PIN-CLEVIS | |
| 6. | 3B-4629 | [4] | PIN-COTTER | |
| 7. | 8T-4167B | [3] | WASHER-HARD(26X44X4-MM THK) | |
| 8. | 8T-4194M | [8] | BOLT(M12X1.75X50-MM) | |
| 9. | 8T-4223 | [8] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| | | | QUANTITIES SHOWN ARE THOSE REQUIRED FOR BOTH LH & RH SIDES |
| | B | | USE AS REQUIRED |
| | M | | METRIC PART |
| | Y | | SEPARATE ILLUSTRATION |
