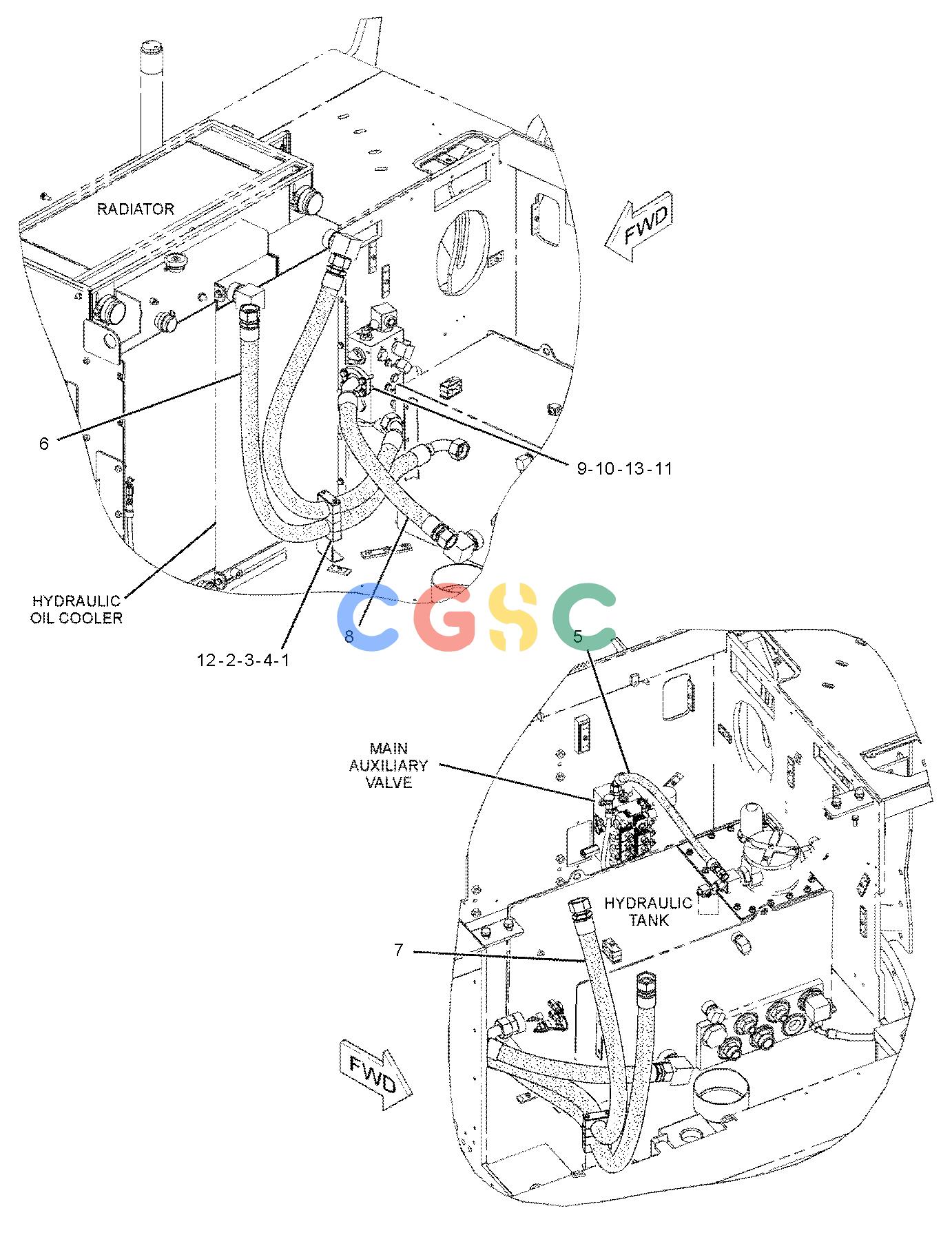

卡特零件查询（AP-1055D） 230-9620: LINES GP-RETURN
广数供应链运营团队, 16 02月, 2025，浏览：
588 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7R-7942 | [4] | CLAMP | |
| 2. | 7R-7952 | [1] | COVER | |
| 3. | 7R-7956 | [1] | PLATE | |
| 4. | 196-4207M | [2] | BOLT-STACKING(M6X1X73-MM) | |
| 5. | 293-2261CI | [1] | HOSE AS | |
| 6. | 237-9183I | [1] | HOSE AS | |
| 7. | 237-9184I | [1] | HOSE AS | |
| 8. | 237-9185I | [1] | HOSE AS | |
| 9. | 1P-4582 | [2] | FLANGE-HALF | |
| 10. | 4J-0527 | [1] | SEAL-O-RING | |
| 11. | 8T-4223 | [4] | WASHER-HARD(13.5X25.5X3-MM THK) | |
| 12. | 8T-3844M | [2] | BOLT(M6X1X70-MM) | |
| 13. | 8T-4184M | [4] | BOLT(M12X1.75X45-MM) | |
| | C | | CHANGE FROM PREVIOUS TYPE |
| | I | | REFER TO HYDRAULIC INFORMATION SYSTEM |
| | M | | METRIC PART |
