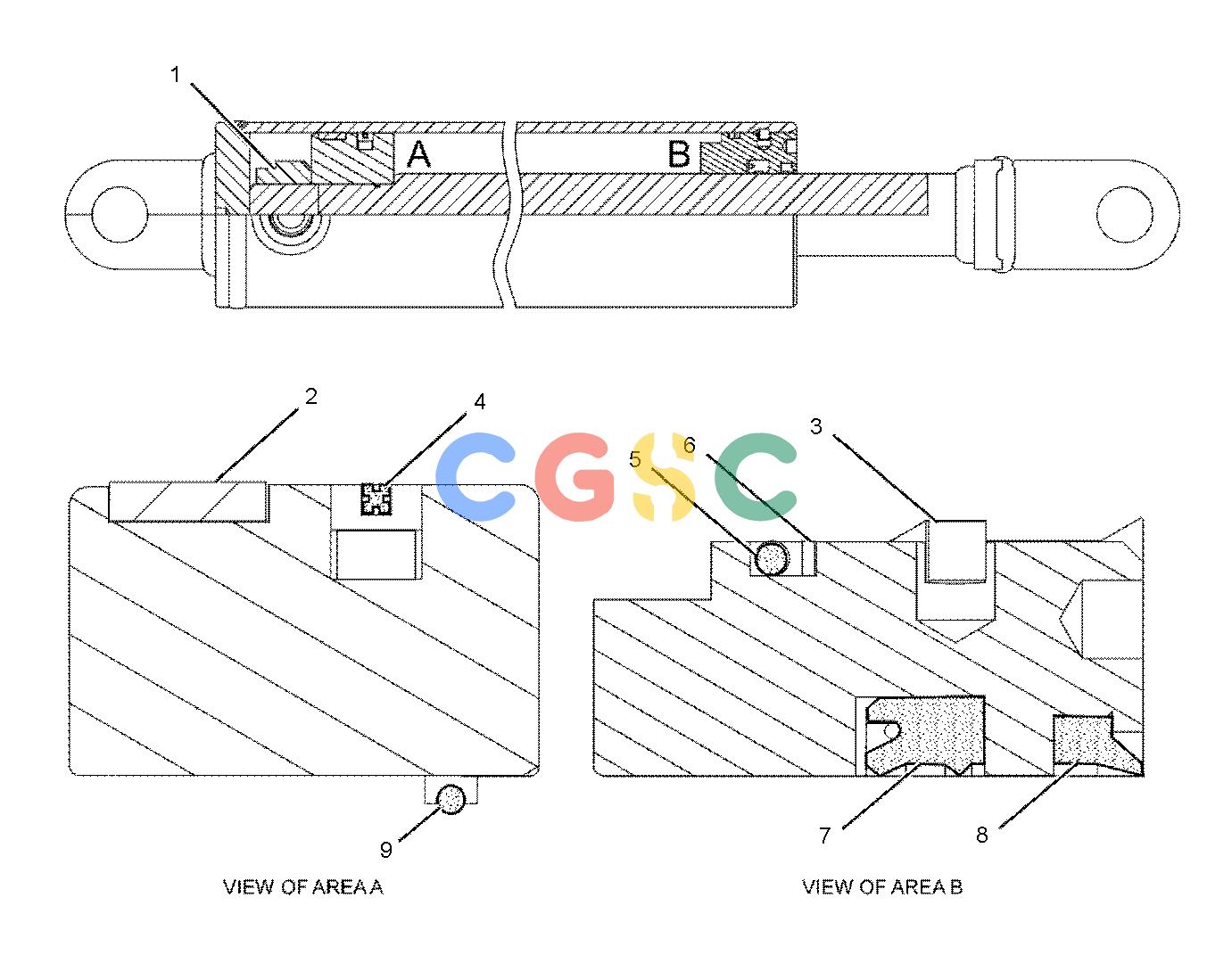

| Pos. | Part No | Qty | Parts name | Comments |
|---|---|---|---|---|
| 1. | 6J-5730 | [1] | LOCKNUT(1-1/8-12-THD) | |
| 2. | JZ | [1] | RING-WEAR | |
| 3. | 240-0773 | [1] | RING-RETAINING | |
| 4. | JZ | [1] | SEAL-RING | |
| 5. | JZ | [1] | SEAL-O-RING | |
| 6. | JZ | [1] | RING-BACKUP | |
| 7. | JZ | [1] | SEAL-U-CUP | |
| 8. | JZ | [1] | SEAL-WIPER | |
| 9. | JZ | [1] | SEAL-O-RING | |
| AVAILABLE REPAIR KIT(S): | ||||
| 230-5105J | [1] | KIT-SEAL(SCREED HOIST CYLINDER) | ||
| J | KIT MARKED J SERVICES PART(S) MARKED J | |||
| Z | NOT SERVICED SEPARATELY | |||
