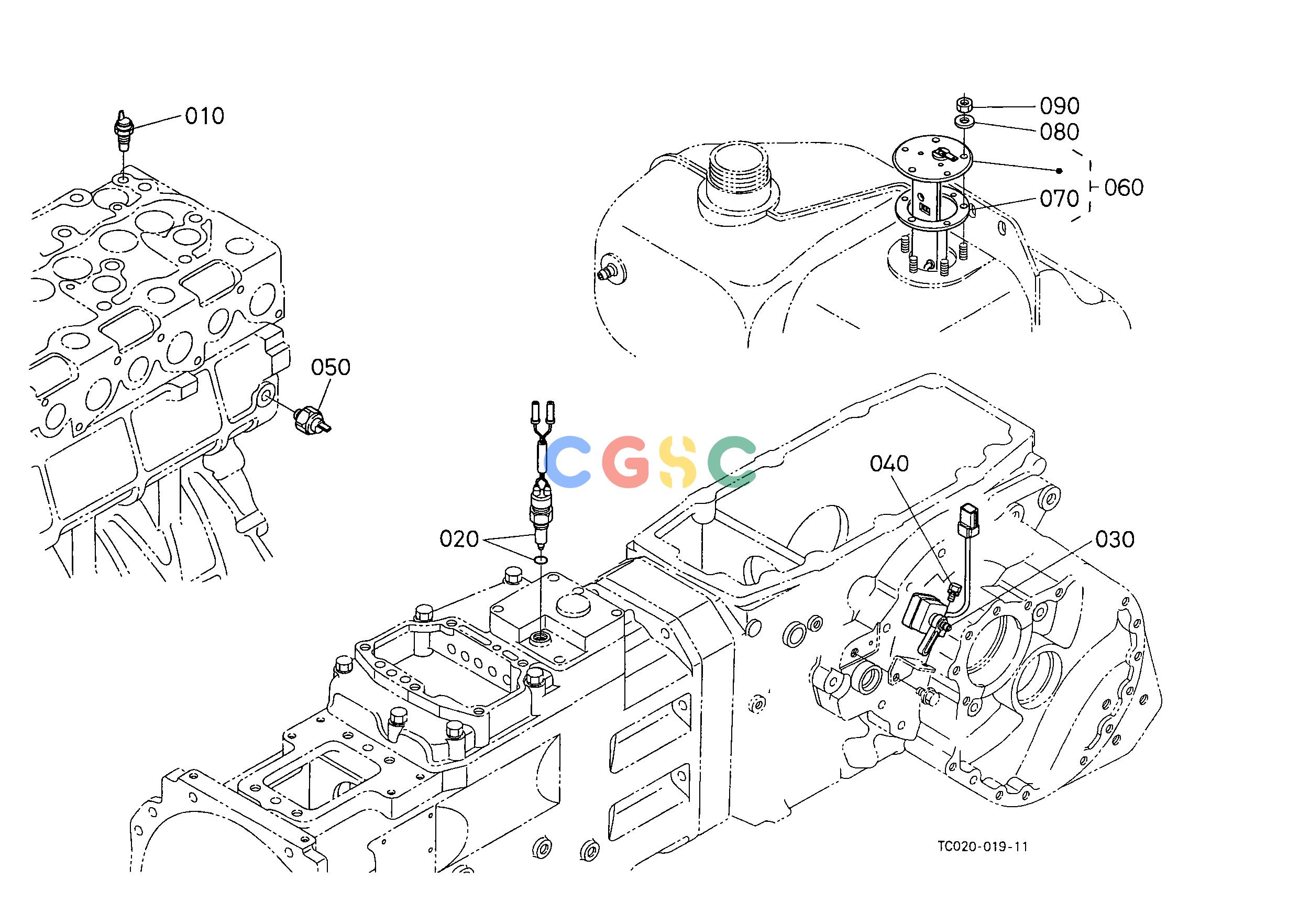

久保田零件查询B10302 SWITCH 2 ELECTRICAL SYSTEMEPC Kubota online
广数供应链运营团队, 16 02月, 2025，浏览：
585 次
| Pos. |
Part No |
Qty |
Parts name |
Comments |
| 010. |
3233032830
|
[1] |
SENSOR WATER TEMP.
|
0.0220(lbs); 0.010
|
| 020. |
TC02032242
|
[1] |
SWITCH NEUTRAL
|
0.1210(lbs); 0.055
|
| 030. |
T106042780
|
[1] |
SWITCH
|
0.1430(lbs); 0.065
|
| 030. |
T106042786
|
[1] |
SWITCH
|
0.2970(lbs); 0.135
|
| 040. |
0102350616
|
[1] |
BOLT
|
0.0132(lbs); 0.006
|
| 050. |
1553139010
|
[1] |
SWITCH OIL
|
0.0704(lbs); 0.032
|
| 060. |
TC02031200
|
[1] |
UNIT FUEL
|
0.3190(lbs); 0.145
|
| 060. |
TC02031202
|
[1] |
UNIT FUEL
|
0.3300(lbs); 0.150
|
| 070. |
6A32085810
|
[1] |
GASKET GAUGE
|
0.0110(lbs); 0.005
|
| 070. |
6A32085812
|
[1] |
GASKET GAUGE
|
0.0110(lbs); 0.005
|
| 080. |
0401360050
|
[5] |
WASHER PLAIN
|
0.0022(lbs); 0.001
|
| 090. |
0205450050
|
[5] |
NUT
|
0.0044(lbs); 0.002
|
