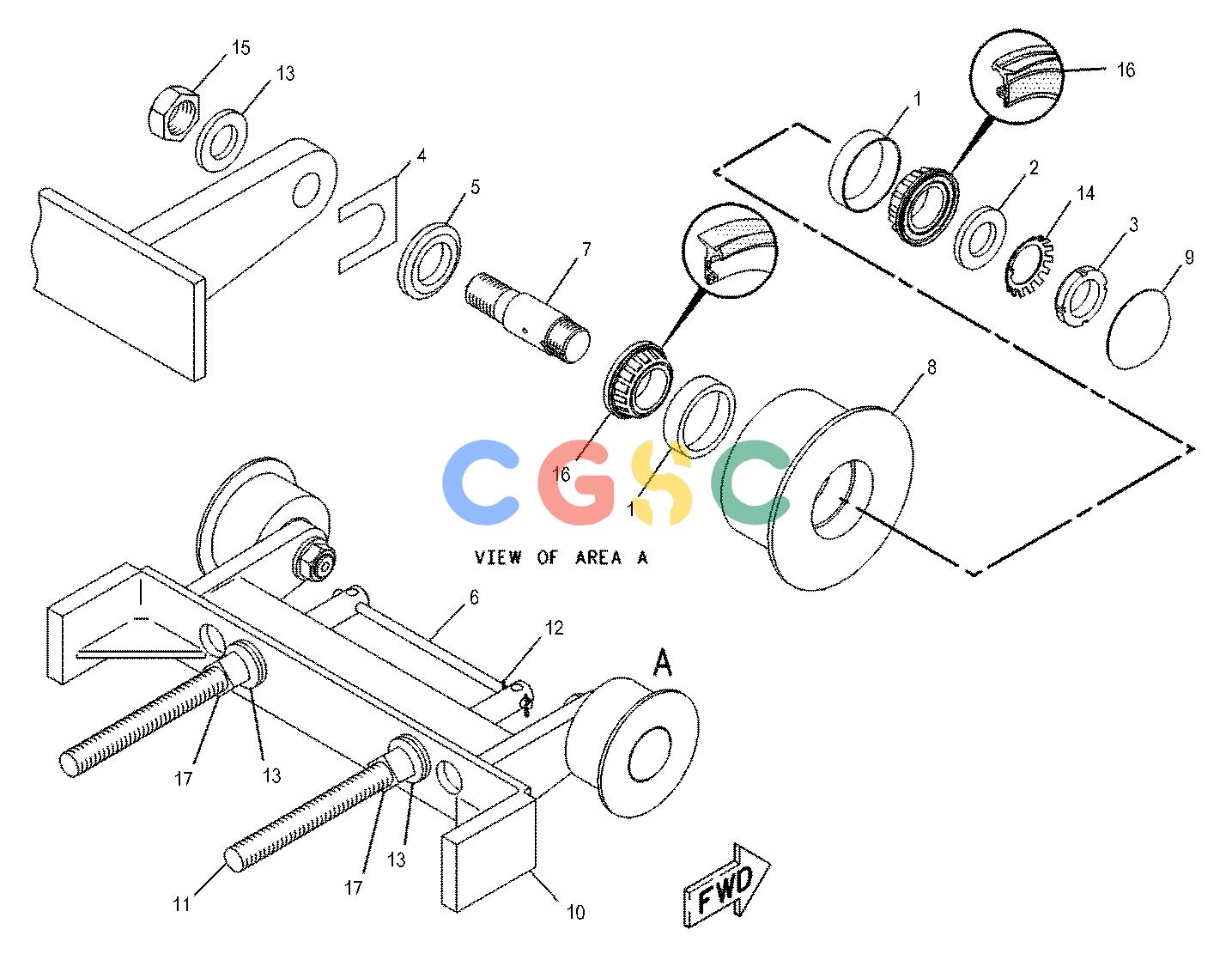

卡特零件查询（AP-1055D） 104-7477: FOOTSHAFT GP
广数供应链运营团队, 16 02月, 2025，浏览：
434 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 002-0754 | [4] | CUP-BEARING | |
| 2. | 064-4092 | [2] | WASHER | |
| 3. | 2H-3777 | [2] | LOCKNUT(1-5/8-18-THD) | |
| 4. | 111-6185B | [2] | SHIM(1.58-MM THK) | |
| 5. | 8I-0773 | [2] | SPACER | |
| 6. | 107-7881 | [1] | SHAFT | |
| 7. | 111-7401 | [2] | SHAFT | |
| 8. | 105-8281 | [2] | ROLLER | |
| 9. | 111-6186 | [2] | PLUG-EXPANSION | |
| 10. | 105-8283 | [1] | SUPPORT AS | |
| 11. | 114-3385 | [2] | SHAFT AS | |
| 12. | 3B-4621 | [2] | PIN-COTTER | |
| 13. | 7X-0533 | [4] | WASHER-HARD(34X55X6-MM THK) | |
| 14. | 7X-7717 | [2] | LOCKWASHER-BEARING | |
| 15. | 1A-4168 | [2] | NUT(1-1/4-12-THD) | |
| 16. | 101-9035 | [4] | CONE AS-BEARING | |
| 17. | 122-2198 | [2] | NUT(1-1/4-7-THD) | |
| | B | | USE AS REQUIRED |
