卡特零件查询（AP-1055D） 236-2579: MOTOR GP-PISTON
广数供应链运营团队, 16 02月, 2025，浏览：
695 次

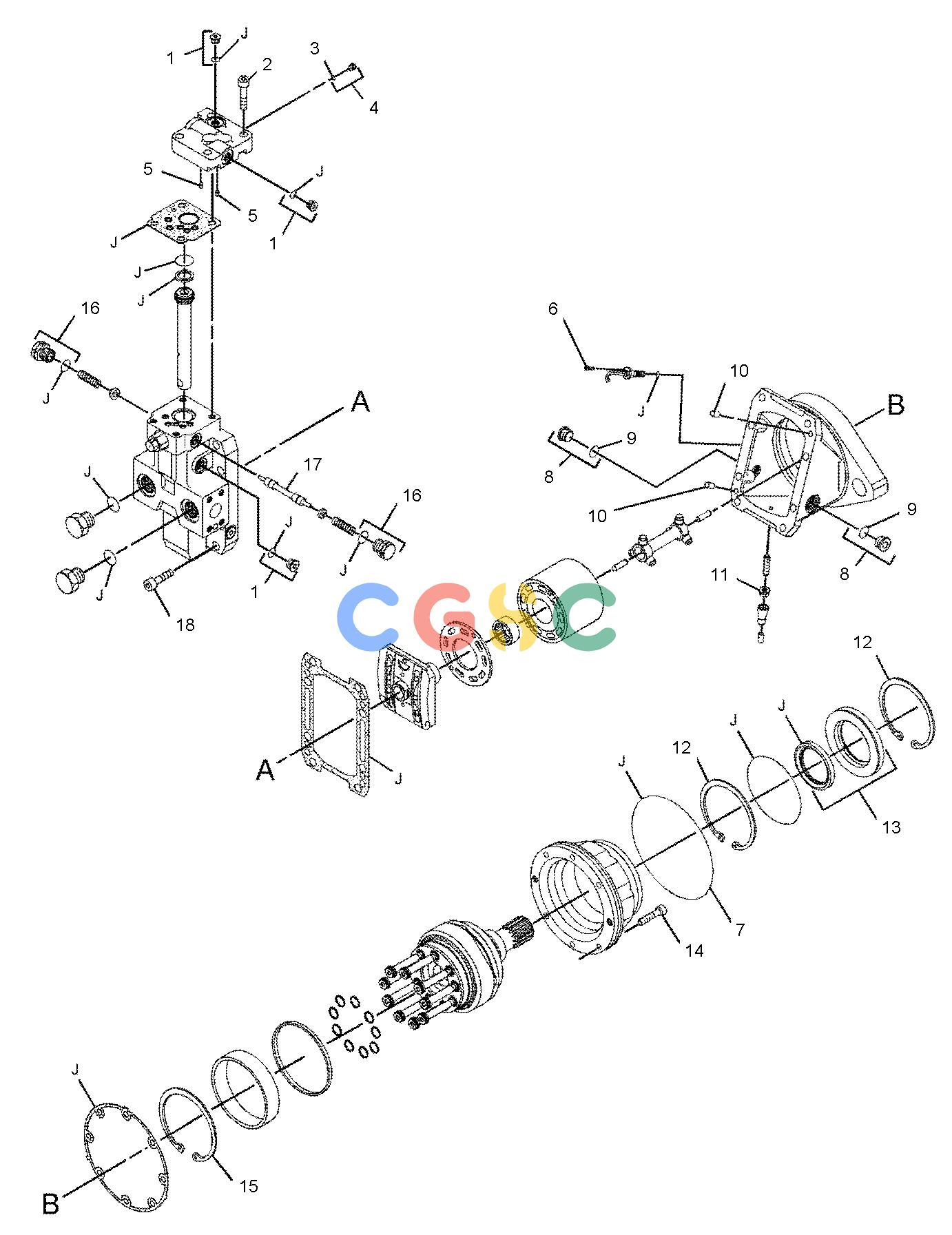

| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 9S-8004 | [3] | PLUG(9/16-18-THD) | |
| 2. | 159-3040M | [4] | BOLT-SOCKET HEAD(M12X1.5X45-MM) | |
| 3. | 261-0036J | [1] | KIT-SEAL | |
| | | | (ALSO INCLUDES PARTS MARKED J IN GRAPHIC) |
| 4. | 132-9257 | [1] | PLUG | |
| 5. | 132-4995 | [2] | ORIFICE | |
| 6. | 8T-0267M | [1] | BOLT-SOCKET HEAD(M6X1X12-MM) | |
| 7. | 109-5700J | [1] | SEAL-O-RING | |
| 8. | 9S-8008 | [2] | PLUG(1-1/16-12-THD) | |
| 9. | 3D-2824J | [2] | SEAL-O-RING | |
| 10. | 077-8353 | [2] | PIN(SPRING) | |
| 11. | 8T-0389M | [1] | LOCKNUT(M10X1.5-THD) | |
| 12. | 8T-0707 | [2] | RING-RETAINING(INTERNAL) | |
| 13. | 192-5474 | [1] | CARRIER-SEAL | |
| 14. | 5A-3604M | [8] | BOLT-SOCKET HEAD(M8X1.25X25-MM) | |
| 15. | 9T-2584 | [1] | RING-RETAINING(INTERNAL) | |
| 16. | 161-6563 | [2] | PLUG-SPECIAL | |
| 17. | 1G-5735 | [1] | SPOOL | |
| 18. | 8T-2223M | [8] | BOLT-SOCKET HEAD(M10X1.5X45-MM) | |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | M | | METRIC PART |
