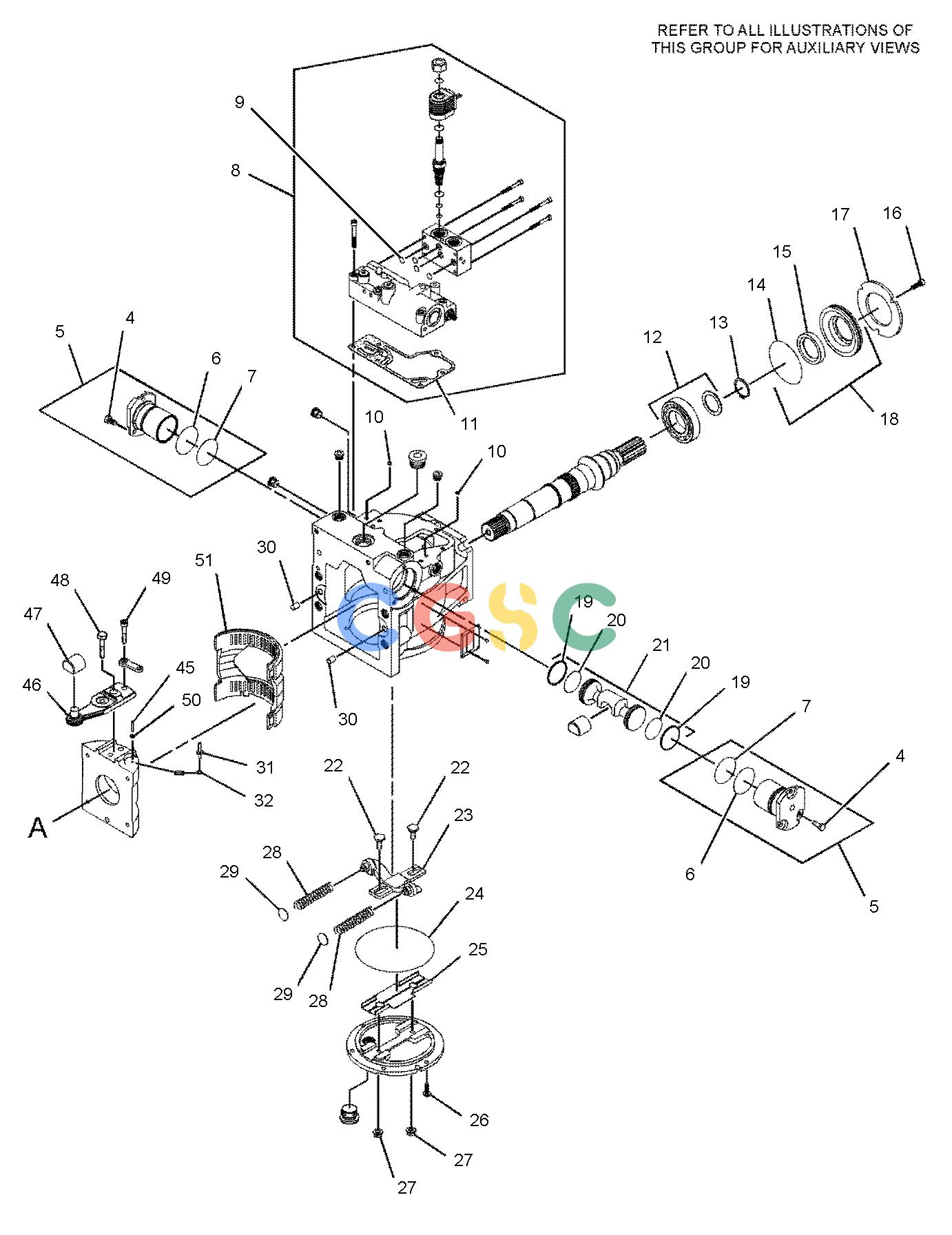

卡特零件查询（AP-1055D） 285-4087: PUMP GP-PISTON
广数供应链运营团队, 16 02月, 2025，浏览：
658 次
| Pos. | Part No | Qty | Parts name | Comments |
|---|
| 1. | 7R-3825T | [1] | KIT-RELIEF VALVE(PISTON PUMP) | |
| | | | (INCLUDES PLUG AS, O-RING SEAL, SPRING, POPPET CHARGE & NUT) |
| 2. | 1G-5764 | [1] | BEARING | |
| 3. | 108-3003 | [1] | GASKET-END CAP | |
| 4. | 6V-5215NM | [6] | BOLT(M8X1.25X16-MM) | |
| 5. | 1G-9327N | [2] | KIT-SLEEVE | |
| 6. | 3D-2898N | [2] | SEAL-O-RING | |
| 7. | 5E-8768N | [2] | SEAL-O-RING | |
| 8. | 276-6041Y | [1] | VALVE GP-PUMP CONTROL | |
| 9. | 033-6039 | [4] | SEAL-O-RING | |
| 10. | 7X-9232 | [3] | PLUG-VENT(PISTON PUMP) | |
| 11. | 123-0542 | [1] | GASKET | |
| 12. | 1G-5737 | [1] | BEARING(ROLLER) | |
| 13. | 2L-6965 | [1] | RING-RETAINING | |
| 14. | 6V-3834P | [1] | SEAL-O-RING | |
| 15. | 1G-5736P | [1] | SEAL-LIP TYPE | |
| 16. | 8T-0269M | [3] | BOLT-SOCKET HEAD(M6X1X20-MM) | |
| 17. | 275-6466 | [1] | PLATE-RETAINING | |
| 18. | 153-4918P | [1] | KIT-SEAL | |
| | | | (INCLUDES O-RING SEAL, LIP SEAL & CARRIER SEAL) |
| 19. | 1G-5759Q | [2] | RING | |
| 20. | 5P-8065Q | [2] | SEAL-O-RING | |
| 21. | 192-2107Q | [1] | KIT-PISTON | |
| 22. | 161-3931 | [2] | POST-GUIDE | |
| 23. | 189-0999 | [1] | LEVELER | |
| 24. | 1G-5763 | [1] | SEAL-O-RING | |
| 25. | 191-3816 | [1] | INSERT AS | |
| 26. | 132-6697M | [6] | BOLT(M8X1.25X20-MM) | |
| 27. | 5E-8765 | [2] | NUT | |
| 28. | 1G-5758 | [2] | SPRING | |
| 29. | 203-8505 | [2] | SHIM(0.51-MM THK) | |
| 30. | 077-8353 | [2] | PIN(SPRING) | |
| 31. | 199-7051 | [1] | PIN | |
| 32. | 5E-8740T | [1] | CAGE-LINK | |
| 33. | 1G-5773T | [9] | PISTON | |
| 34. | 1G-5750T | [1] | GUIDE | |
| 35. | 175-2785T | [4] | SPACER | |
| 36. | 1G-5751T | [2] | BEARING | |
| 37. | 5E-8784TM | [4] | BOLT(M6X1X20-MM) | |
| 38. | 1G-5747S | [1] | SPRING | |
| 39. | 1G-5746S | [1] | SEAT | |
| 40. | 1G-5748S | [1] | RETAINER | |
| 41. | 1G-5749S | [1] | RING | |
| 42. | 260-6637 | [1] | PLATE-VALVE | |
| 43. | 1G-5745ST | [1] | KIT-CYLINDER BLOCK | |
| | | | (INCLUDES SEAT, SPRING, RETAINER, RETAINING RING & CYLINDER BLOCK) |
| 44. | 1G-5772T | [1] | KIT-PISTON BLOCK | |
| 45. | 5E-8774 | [1] | PIN | |
| 46. | 275-6469 | [1] | LINK-SERVO | |
| 47. | 108-3002 | [1] | BLOCK-SLIDER | |
| 48. | 134-1824 | [1] | BOLT(M10X1.5X35-MM) | |
| 49. | 203-9019 | [1] | BOLT(M8X1.25X53-MM) | |
| 50. | 5E-8791 | [1] | WASHER(3.53X6.86X1.52-MM THK) | |
| 51. | 275-6497 | [1] | BEARING-CRADLE | |
| 52. | 5E-8747 | [2] | VALVE-CHECK | |
| 53. | 5E-8777 | [2] | PLUG | |
| 54. | 5E-8743 | [2] | BUSHING-TERMINAL | |
| 55. | 109-5165 | [1] | SHAFT-CHARGE | |
| 56. | 1G-5767 | [1] | PIN | |
| 57. | 229-8394 | [1] | PLATE-COVER | |
| 58. | 6V-8837M | [6] | BOLT(M6X1X16-MM) | |
| 59. | 170-4717 | [1] | SEAL-O-RING | |
| 60. | 096-0008M | [4] | BOLT-SOCKET HEAD(M16X2X140-MM) | |
| 61. | 5E-8771 | [1] | SEAL-O-RING | |
| 62. | 109-5166 | [1] | COVER-CHARGE | |
| 63. | 112-6763 | [1] | PUMP-CHARGE | |
| 64. | 8T-0338M | [2] | BOLT-SOCKET HEAD(M8X1.25X45-MM) | |
| 65. | 098-3039 | [1] | WASHER(8.33X15X2.12-MM THK) | |
| 66. | 134-1827 | [1] | SPACER | |
| 67. | 7R-3453 | [1] | KEY-WOODRUFF | |
| 68. | 126-6640 | [1] | BRACKET-LIFTING | |
| 69. | 2M-9780T | [1] | SEAL-O-RING | |
| 70. | 5E-8750L | [1] | TUBE | |
| 71. | 7M-8485L | [1] | SEAL-O-RING | |
| 72. | 5E-8764L | [1] | NUT(1-5/16-12-THD) | |
| 73. | 107-5896L | [1] | KIT-MANIFOLD | |
| | | | (INCLUDES ADAPTER AS & PLUG AS) |
| 74. | 3J-1907L | [1] | SEAL-O-RING | |
| 75. | 9S-4191L | [1] | PLUG(9/16-18-THD) | |
| 76. | 5E-9816J | [2] | SEAL-O-RING | |
| 77. | 8J-2413J | [2] | SEAL-O-RING | |
| 78. | 229-8393J | [2] | KIT-VALVE | |
| | | | (EACH INCLUDES VALVE & O-RING SEALS) |
| 79. | 111-6216 | [1] | KIT-SEAL | |
| | | | |
| | | | PARTS SHOWN IN GRAPHIC(S) WITHOUT A REFERENCE NUMBER ARE NOT SERVICED SEPARATELY |
| | J | | KIT MARKED J SERVICES PART(S) MARKED J |
| | L | | KIT MARKED L SERVICES PART(S) MARKED L |
| | M | | METRIC PART |
| | N | | KIT MARKED N SERVICES PART(S) MARKED N |
| | P | | KIT MARKED P SERVICES PART(S) MARKED P |
| | Q | | KIT MARKED Q SERVICES PART(S) MARKED Q |
| | S | | KIT MARKED S SERVICES PART(S) MARKED S |
| | T | | KIT MARKED T SERVICES PART(S) MARKED T |
| | Y | | SEPARATE ILLUSTRATION |
